Grizzly G1014Z User Manual



,&
,'"&
).
),
++
+,
),
,.
*(
**
,'
&%)
&&-
,(
,(6
&(
('
*&
)+
)-
,+
*&
)+
,-
,*
,)
,*
+%
+&
&'
&(
*-
)&

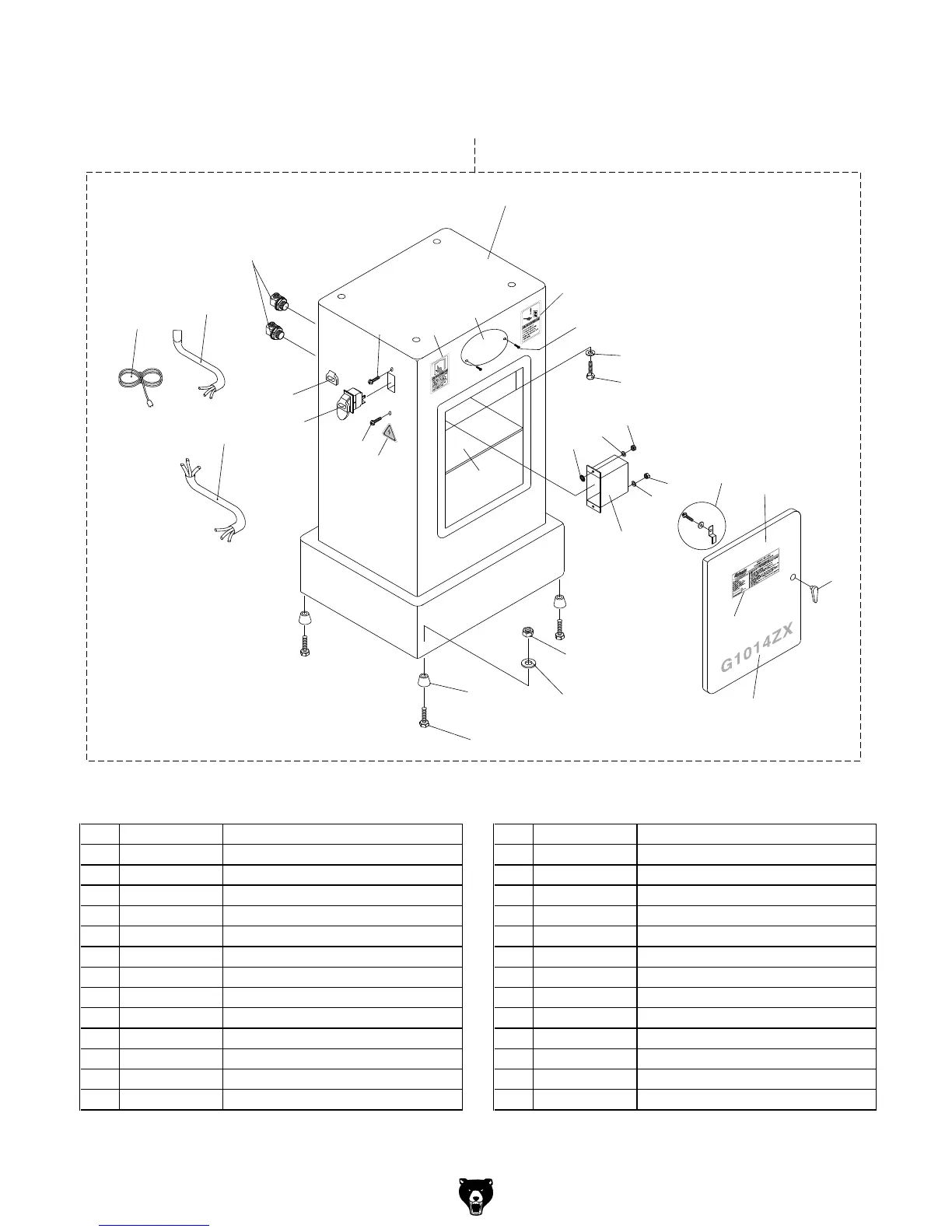

G1014ZX Cabinet
REF PART # DESCRIPTION REF PART # DESCRIPTION
12 PN02 HEX NUT 5/16-18 66 PLABEL-62 DISCONNECT 110V 2W X 3.3H
13 PW07 FLAT WASHER 5/16 67 PLABEL-12A READ MANUAL V2.07.05
32 PB09 HEX BOLT 5/16-18 X 1/2 71 PWRCRD110L POWER CORD
41 PB03 HEX BOLT 5/16-18 X 1 72 P1014ZX072 MOTOR CORD 1 (FEMALE)
46 PW03 FLAT WASHER #10 72-1 P1014ZX072-1 MOTOR CORD 2 (MALE)
47 PFS03 FLANGE SCREW 10-24 X 3/8 73 P1014ZX073 CABINET
48 PTLW01 EXT TOOTH WASHER #10 73A P1014ZX073A COMPLETE STAND ASSY (BOX 2)
49 P1014Z049 STRAIN RELIEF 74 P1014ZX074 CABINET DOOR
51 PN07 HEX NUT 10-24 75 P1014ZX075 DOOR LATCH SYSTEM
53 G8988 GRIZZLY SAFETY PADDLE SWITCH 76 P1014ZX076 SHELF
55 PSW09-1 PADDLE SWITCH KEY 78 P1014ZX078 SWITCH HOUSING
58 P1014Z058 RUBBER FOOT 79 PLABEL-14 ELECTRICITY LABEL
60 P1014ZX060 MACHINE ID LABEL 104 G9987 GRIZZLY NAMEPLATE- SMALL
61 P1014ZX061 MODEL # LABEL G1014ZX 118 PHTEK24 TAP SCREW #5 X 3/8
