Grizzly G1071 - Wiring Diagrams



READ ELECTRICAL SAFETY
ON PAGE 29!

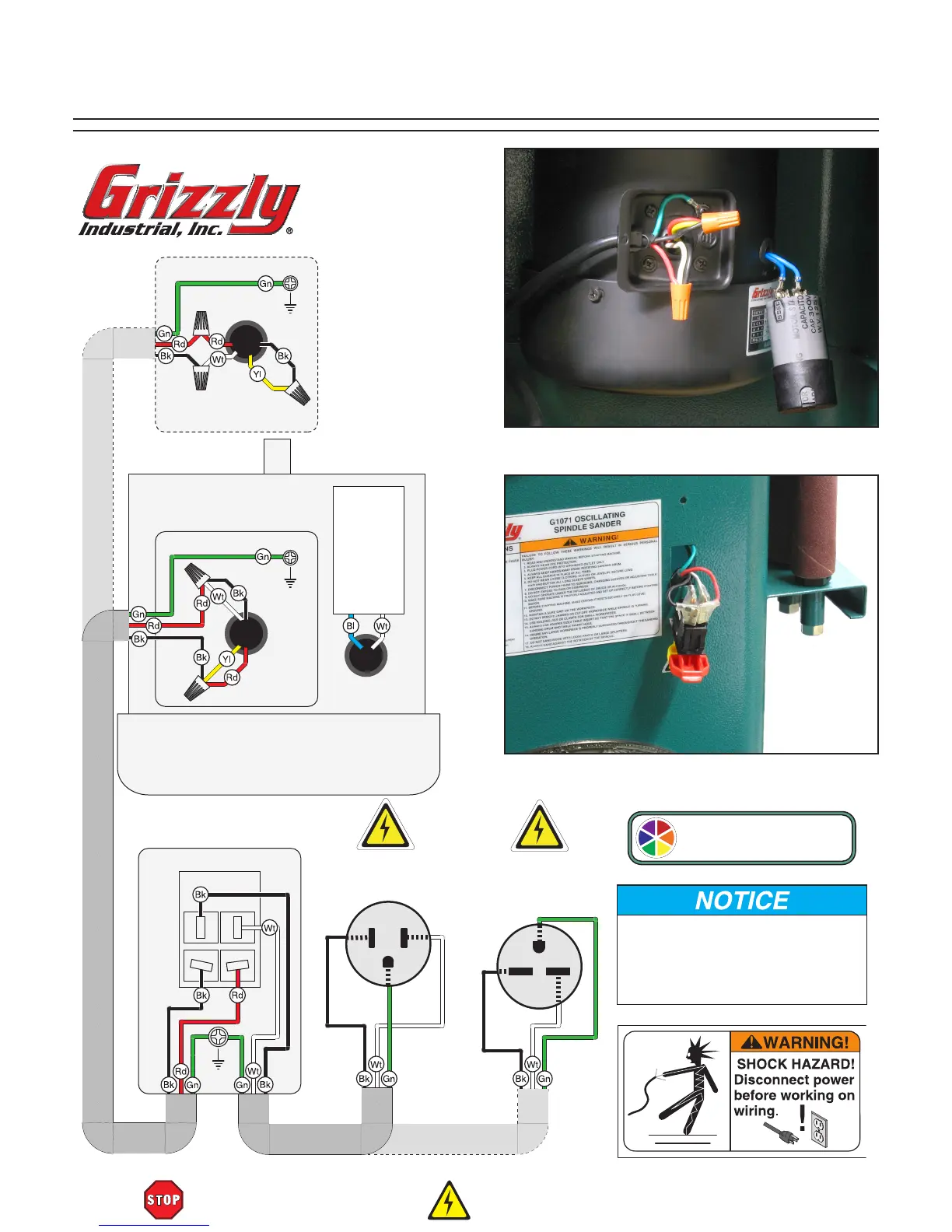

Wiring Diagram
Ground
View this page in color at
www.grizzly.com.
Neutral
Hot
Hot
Hot
Ground
Ground
110 VAC (Prewired)
5-15 Plug
220 VAC
(As Recommeded)
6-15 Plug
PADDLE SWITCH
(viewed from behind)
Ground
The motor wiring shown here is
current at the time of printing, but it
may not match your machine.
Always use the wiring diagram
inside the motor junction box.
Rewired to 220V
Rewired to 220V
Rewired to 220V
Start
Capacitor
300MFD
125VAC
G
Figure 39. Motor wiring.
Figure 40. Switch wiring.
