Grizzly G1071 User Manual



89
115
116
109
63
59
111
53
109
106
105
105
106
111
111
57
51
110
110
50
57
111
58
52
110
110
34
49
48
89
32
30
28
27
26
110
110
29
110
31
33
110
110
34
34
34
34
77V2
78
79
110
34
110
36
64
77-1
REF PART # DESCRIPTION REF PART # DESCRIPTION
26 P1071026 ARBOR 57 P1071057 WASHER 36 X 19 X 3MM
27 P1071027 SPINDLE 1/4" 58 P1071058 WASHER 60 X 19 X 3MM
28 P1071028 SPINDLE 3/8" 59 P1071059 WASHER 85 X 19 X 3MM
29 P1071029 RETAINER 63 P1071063 SPINDLE HOLDER
30 P1071030 SPINDLE 1/2" 64 P1071064 SPINDLE HOLDER
31 P1071031 RETAINER 77V2 P1071077V2 FLAT WRENCH 1-1/8 V2.01.02
32 P1071032 SPINDLE 5/8" 77-1 P1071077-1 COMBO FLAT WRENCH 7/8 X 1-1/4"
33 P1071033 RETAINER 78 P1071078 SPINDLE WRENCH 1 X 3/4"
34 P1071034 RETAINER 79 PAW02M HEX WRENCH 2MM
36 P1071036 SPINDLE 3/4" 89 PN08 HEX NUT 3/8-16
48 P1071048 RUBBER GROMMET 105 PB19 HEX BOLT 1/4-20 X 1/2
49 P1071049 SPINDLE 1" 106 PLW02 LOCK WASHER 1/4
50 P1071050 SPINDLE 1-1/2" 110 PSS29 SET SCREW 10-24 X 1/4
51 P1071051 SPINDLE 2" 111 PN03 HEX NUT 3/4-16
52 P1071052 SPINDLE 3" 115 PW02 FLAT WASHER 3/8
53 P1071053 SPINDLE 4" 116 P1071116 SPACER

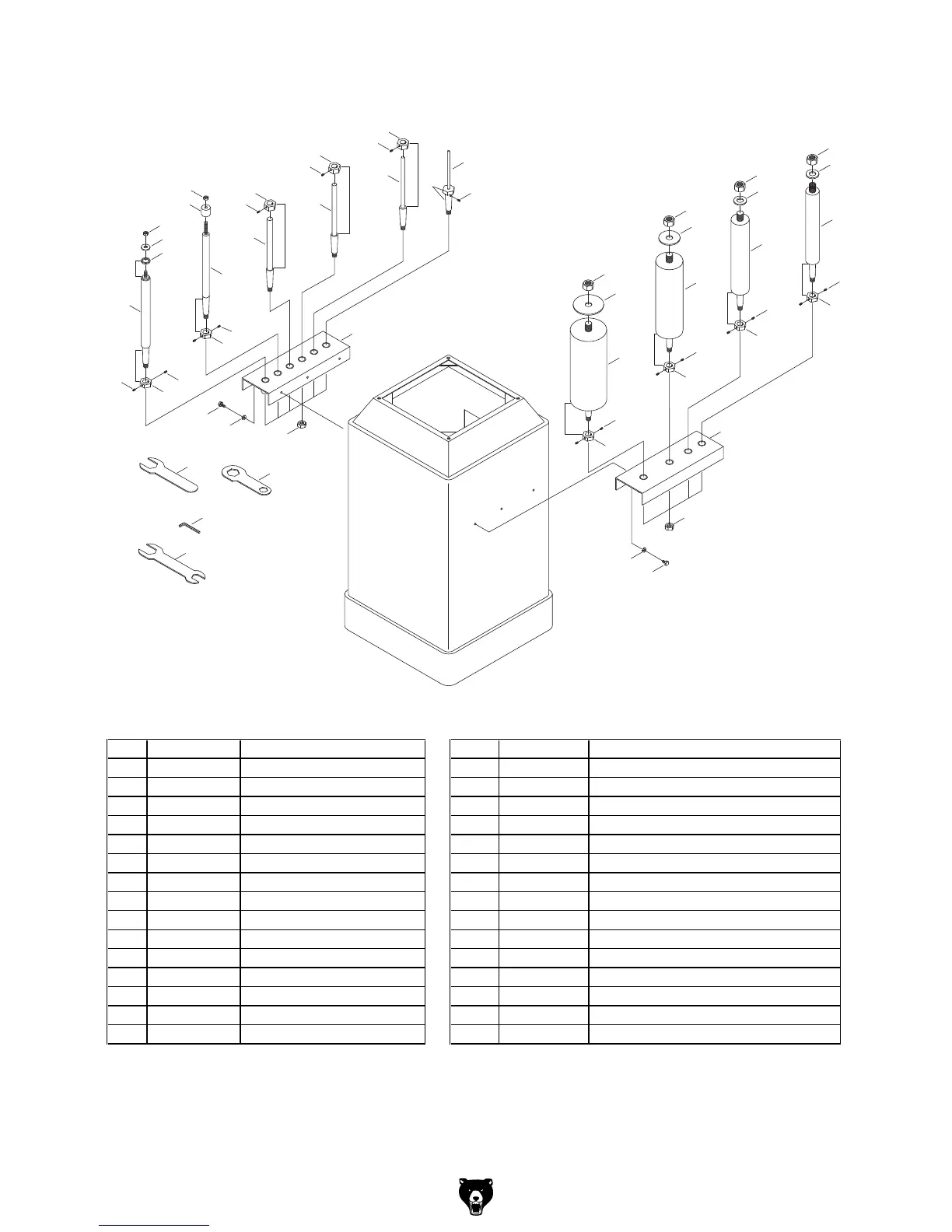

Base Breakdown & List
