Grizzly G4003G User Manual

-98-
Model G4003G (Mfd. Since 1/15)

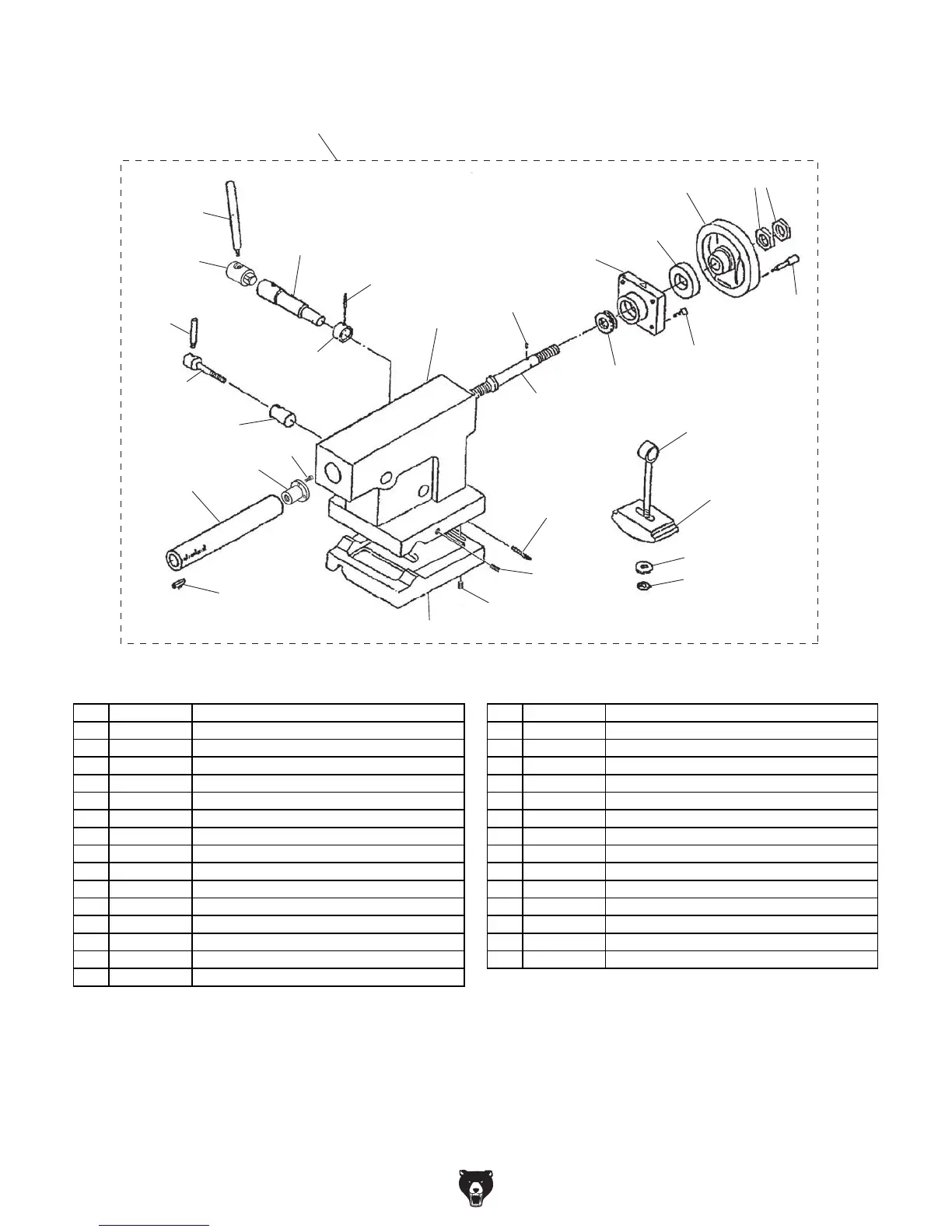

Tailstock
719
732
720
721
722
704
707
708
709
710
712
711
713
714
715
723
725
726
706
731
729
705
702
703
727
728
718
717
716
724
701
REF PART # DESCRIPTION REF PART # DESCRIPTION
701 P4003G0701 TAILSTOCK ASSEMBLY 717 P4003G0717 QUILL LOCK BOLT
702 P4003G0702 KEY 8 X 8 X 30 718 P4003G0718 LOCK SHAFT
703 P4003G0703 QUILL 719 P4003G0719 TAILSTOCK LOCK HANDLE M10-1.5 X 12 90L
704 P4003G0704 TAILSTOCK BODY 720 P4003G0720 TAILSTOCK LOCK SHAFT
705 P4003G0705 CLAMPING BASE 721 P4003G0721 ROLL PIN 5 X 30
706 P4003G0706 SET SCREW M10-1.5 X 50 722 P4003G0722 LOCK COLLAR
707 P4003G0707 QUILL LEADSCREW 723 P4003G0723 CLAMP BOLT 3-7/8"
708 P4003G0708 ROLL PIN 4 X 10 724 P4003G0724 CLAMP SHOE
709 P4003G0709 THRUST BEARING 8101 725 P4003G0725 FLAT WASHER 12MM
710 P4003G0710 HANDWHEEL BRACKET 726 P4003G0726 HEX NUT M12-1.75
711 P4003G0711 GRADUATED DIAL 727 P4003G0727 QUILL LEADSCREW NUT
712 P4003G0712 CAP SCREW M6-1 X 20 728 P4003G0728 CAP SCREW M4-.7 X 10
713 P4003G0713 QUILL HANDWHEEL 729 P4003G0729 SET SCREW M6-1 X 30
714 P4003G0714 HANDWHEEL HANDLE M8-1.25 X 14 88L 731 P4003G0731 SET SCREW M8-1.25 X 50
715 P4003G0715 HEX NUT M12-1.75 732 P4003G0732 HANDLE BASE
716 P4003G0716 QUILL LOCK HANDLE M12-1.75 X 16 170L
