Grizzly G4003G User Manual

-104-
Model G4003G (Mfd. Since 1/15)

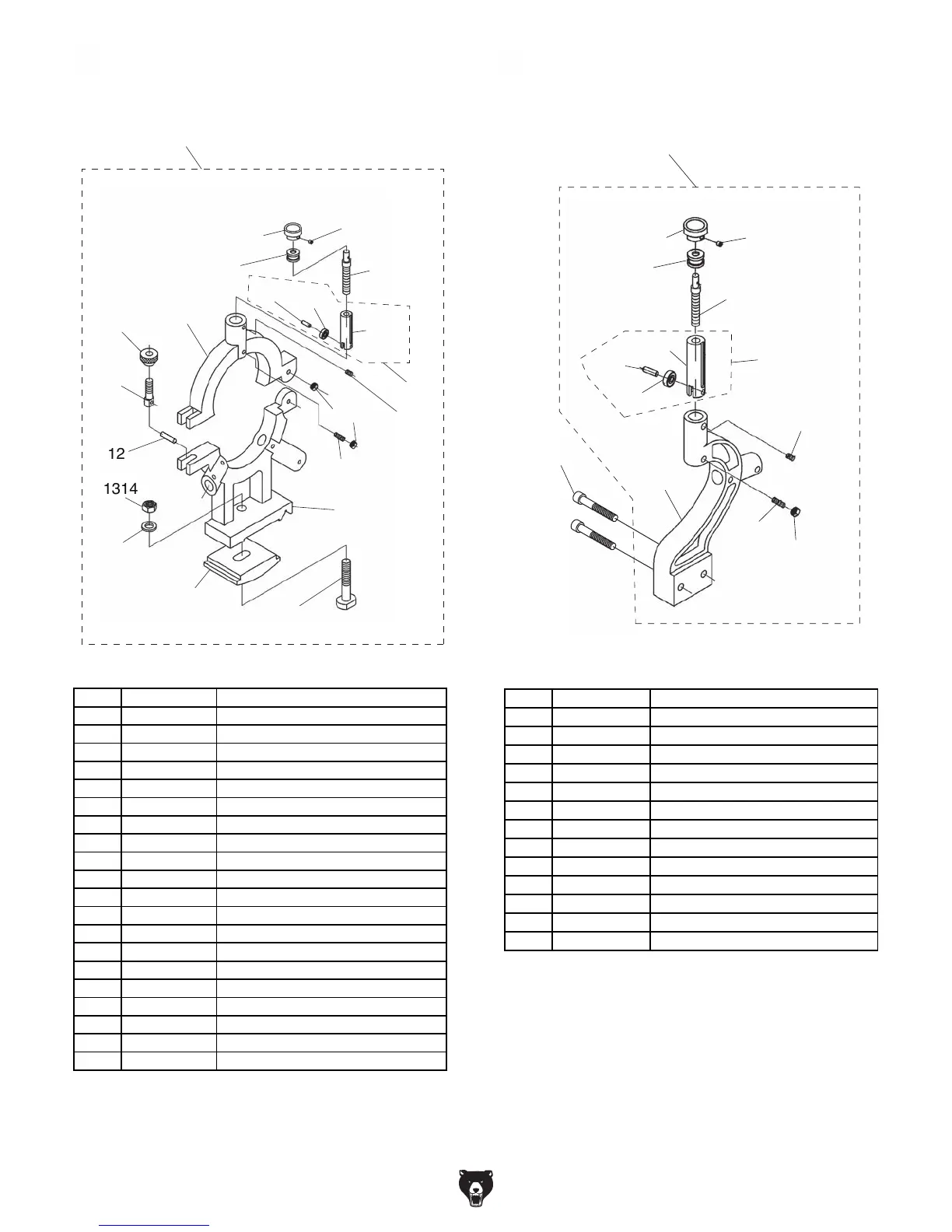

Steady Rest Follow Rest
1300
1301
1302
1303
1304
1305
1305A
1306
1306-1
1306-2
1307
1309
1310
1311
1312
1313
1314
1315
1316
1317
1319
REF PART # DESCRIPTION
1300 P4003G1300 STEADY REST ASSEMBLY
1301 P4003G1301 KNURLED FINGER KNOB
1302 P4003G1302 SET SCREW M6-1 X 6 CONE-PT
1303 P4003G1303 BUSHING
1304 P4003G1304 FINGER ADJUSTMENT SCREW
1305 P4003G1305 FINGER SLEEVE 3"
1305A P4003G1305A FINGER 3" W/BEARING ASSEMBLY
1306 P4003G1306 SET SCREW M6-1 X 8
1306-1 P4003G1306-1 SET SCREW M6-1 X 16 DOG-PT
1306-2 P4003G1306-2 HEX NUT M6-1
1307 P4003G1307 UPPER STEADY REST CASTING
1309 P4003G1309 BALL BEARING 625ZZ
1310 P4003G1310 DOWEL PIN 5 X 16
1311 P4003G1311 LOWER STEADY REST CASTING
1312 P4003G1312 LOCK PIN
1313 P4003G1313 LOCK BOLT M10-1.5 X 18
1314 P4003G1314 HEX NUT M12-1.75
1315 P4003G1315 FLAT WASHER 12MM
1316 P4003G1316 CLAMP PLATE
1317 P4003G1317 T-BOLT M12-1.75 X 75
1319 P4003G1319 KNURLED THUMB KNOB M10-1.5
1400
1401
1402
1403
1404
1405A
1405
1406
1407
1408
1409
1410
1411
1412
REF PART # DESCRIPTION
1400 P4003G1400 FOLLOW REST ASSEMBLY
1401 P4003G1401 KNURLED FINGER KNOB
1402 P4003G1402 SET SCREW M6-1 X 6 CONE-PT
1403 P4003G1403 BUSHING
1404 P4003G1404 FINGER ADJUSTMENT SCREW
1405 P4003G1405 FINGER SLEEVE 3"
1405A P4003G1405A FINGER 3" W/BEARING ASSEMBLY
1406 P4003G1406 SET SCREW M6-1 X 8
1407 P4003G1407 HEX NUT M6-1
1408 P4003G1408 SET SCREW M6-1 X 16 DOG-PT
1409 P4003G1409 FOLLOW REST CASTING
1410 P4003G1410 CAP SCREW M8-1.25 x 35
1411 P4003G1411 BALL BEARING 625ZZ
1412 P4003G1412 DOWEL PIN 5 X 16
