Grizzly G4003G User Manual

Model G4003G (Mfd. Since 1/15)
-101-

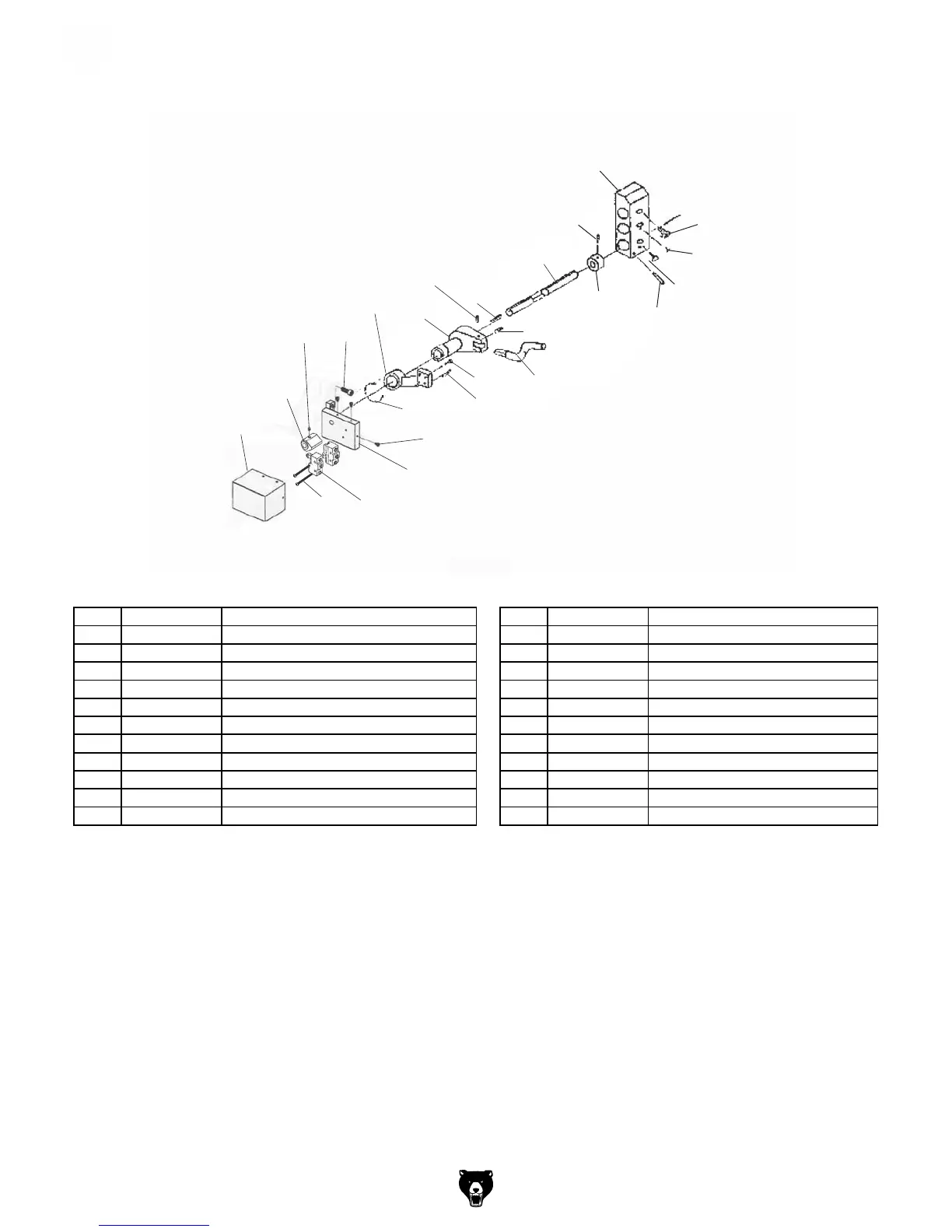

Feed Rod
919V2
918V2
917
916
915
914
913
911
910
909
908
907V2
912
920
921
922
923
924
906
905
904
902
903
902
901
REF PART # DESCRIPTION REF PART # DESCRIPTION
901 P4003G0901 END BRACKET 913 P4003G0913 CAP SCREW M6-1 X 14
902 P4003G0902 CAP SCREW M6-1 X 12 914 P4003G0914 ROLL PIN 5 X 25
903 P4003G0903 BALL OILER 8MM TAP-IN 915 P4003G0915 SUPPORT BRACKET
904 P4003G0904 ROLL PIN 6 X 55 916 P4003G0916 EXT RETAINING RING 30MM
905 P4003G0905 SET SCREW M6-1 X 6 917 P4003G0917 CAP SCREW M8-1.25 X 25
906 P4003G0906 LOCK COLLAR 12 X 20 X 34MM 918V2 P4003G0918V2 CONNECTION BRACKET V2.12.14
907V2 P4003G0907V2 SPINDLE ROD V2.12.14 919V2 P4003G0919V2 SPINDLE ON/OFF SWITCH V2.12.14
908 P4003G0908 KEY 5 X 5 X 35 920 P4003G0920 CAP SCREW M4-.7 X 6
909 P4003G0909 ROLL PIN 4 X 20 921 P4003G0921 SET SCREW M6-1 X 8
910 P4003G0910 COMPRESSION SPRING 7020 922 P4003G0922 SPINDLE SWITCH ARM
911 P4003G0911 SPINDLE SWITCH HANDLE M10-1.5 X 16 923 P4003G0923 SPINDLE SWITCH BOX
912 P4003G0912 HANDLE BRACKET 924 P4003G0924 BUTTON HD CAP SCR M4-.7 X 45
