Grizzly G4003G User Manual

Model G4003G (Mfd. Since 1/15)
-103-

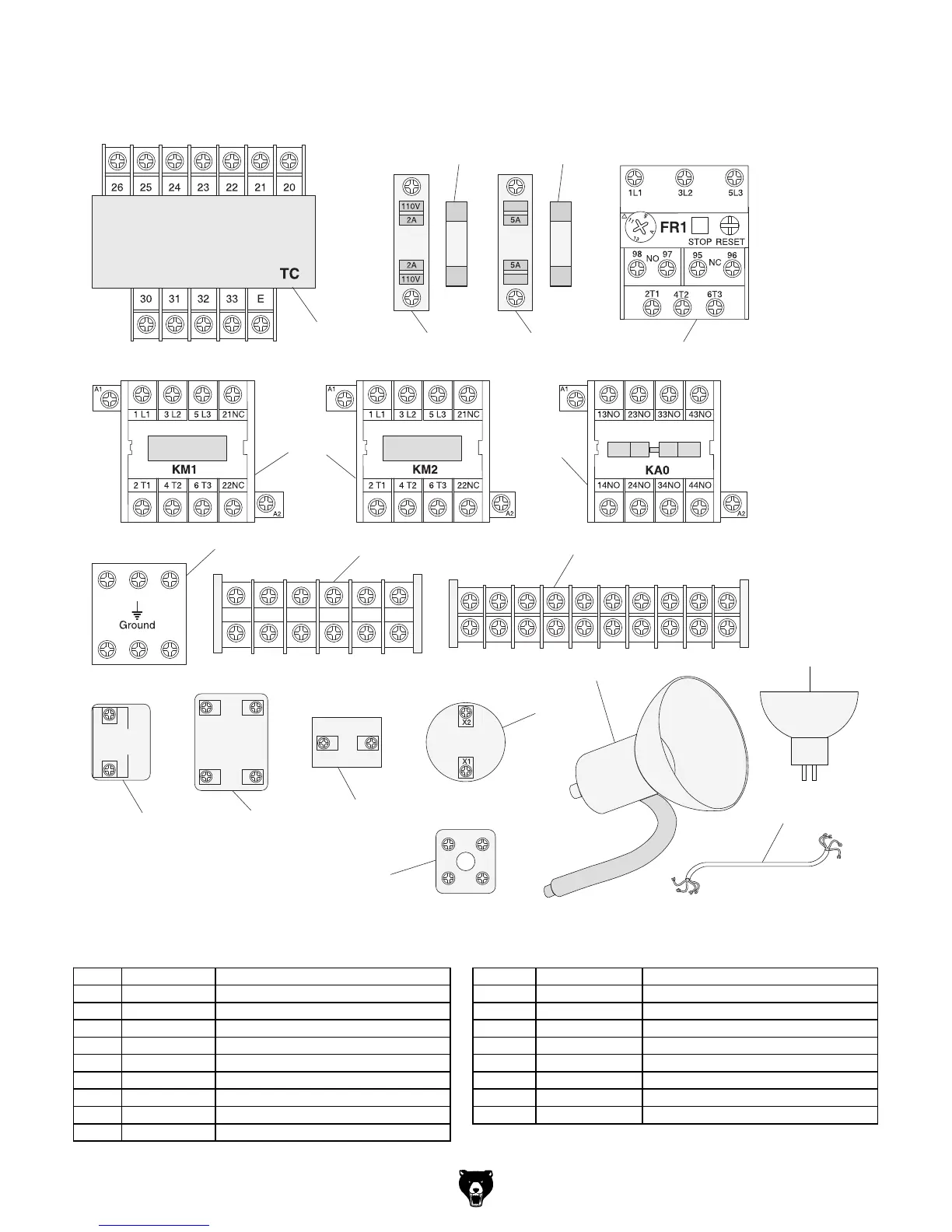

Electrical Components
REF PART # DESCRIPTION REF PART # DESCRIPTION
1201 P4003G1201 TRANSFORMER MTE JBK5-100VATH 1209 P4003G1209 TERMINAL BLOCK 20-POLE
1202 P4003G1202 FUSE HOLDER 2A 1210 P4003G1210 E-STOP RESET BUTTON SS LA103
1202-1 P4003G1202-1 FUSE 2A 1211 P4003G1211 POWER START BUTTON SS LA103
1203A P4003G1203A FUSE 5A 1212 P4003G1212 JOG BUTTON SS LA103
1203V2 P4003G1203V2 FUSE HOLDER 5A V2.10.06 1213 P4003G1213 POWER LAMP SS XD103
1204-1 P4003G1204-1 OL RELAY TIANSHUI JR58-09/25D 110V 1214 P4003G1214 WORK LIGHT TERMINAL BLOCK
1205 P4003G1205 CONTACTOR TIANSHUI GSC1-1801 1215 P4003G1215 HALOGEN WORK LIGHT ASSY
1206 P4003G1206 CONTACTOR TIANSHUI JZC3 40D 1215-1 P4003G1215-1 CORD FOR WORK LIGHT
1207 P4003G1207 GROUND TERMINAL BLOCK 1215-3V2 P4003G1215-3V2 LED BULB 12V 3W BI-PIN
1208 P4003G1208 TERMINAL BLOCK 12-POLE
1201
1202
1204-1
1205
1206
1207
1208
1209
1210
1211
1212
1213
1214
1215
2A
1202-1
1203V2
5A
1203A
1215-1
1215-3V2
24V
24V
