Grizzly G4003G User Manual

-16-
Model G4003G (Mfd. Since 1/15)
Inventory
X. Drill Chuck B16 1.5-13mm .......................... 1
Y. Drill Chuck Key ........................................... 1
Z. Spider Bolts w/Nuts .................................... 4
AA. Fasteners (Not Shown):
—Hex Bolts M12-1.75 x 40 ......................... 6
—Flat Washers 12mm ................................ 6
—Phillips Head Screws M6-1 x 10 ........... 12
—Hex Nuts M6-1 ........................................ 4
—Flat Washers 6mm ............................... 12
Figure 7. Loose components.
H
F
I
G
K
J
U
V
S
T
R
Q
P
O
N
M
L
W
Z
X
Y

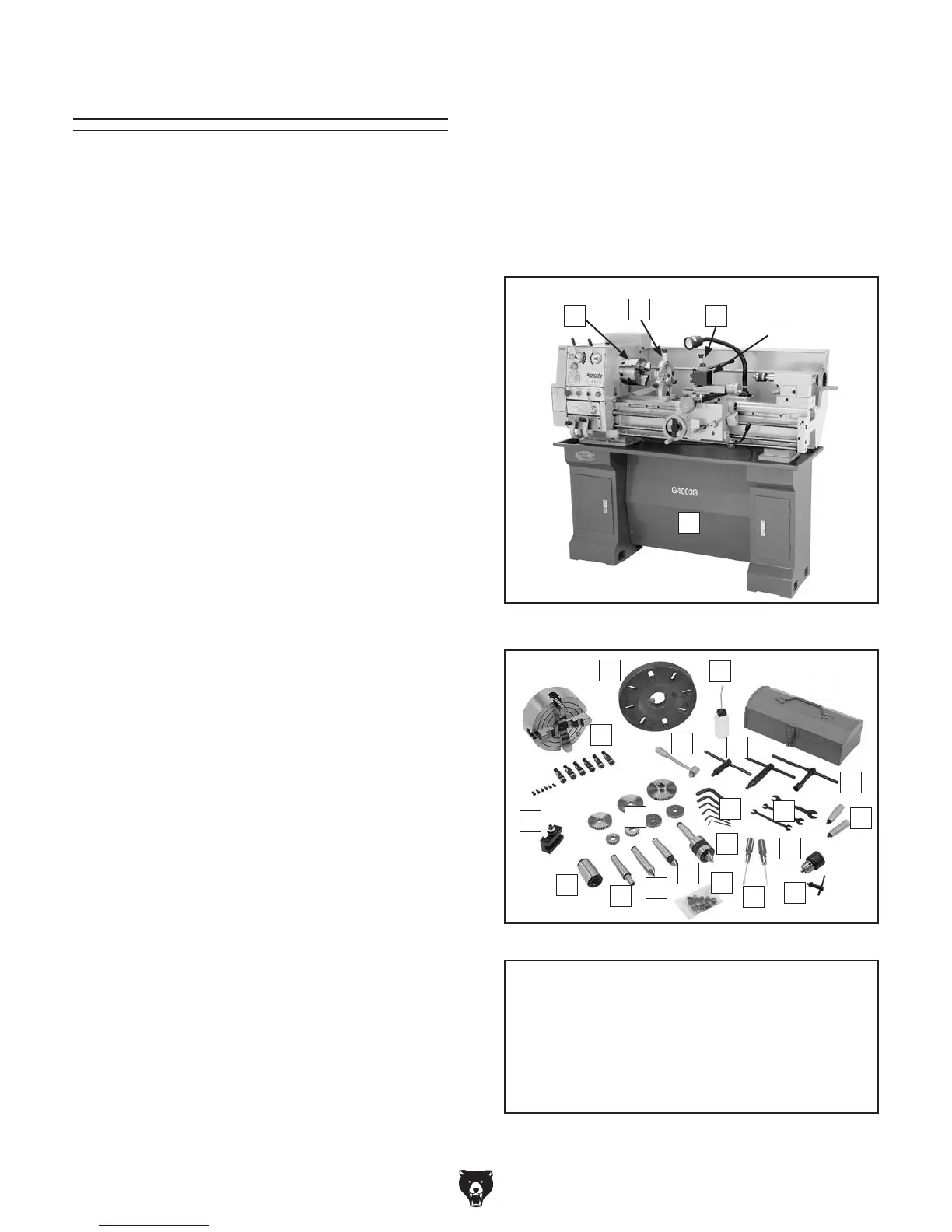

Figure 6. Major components.
E
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Major Components (Figure 6) Qty.
A. 6" Three-Jaw Chuck w/Jaws ...................... 1
B. Steady Rest ................................................ 1
C. Follow Rest ................................................. 1
D. Quick Change Tool Post............................. 1
E. Stand:
Cabinets (Left & Right) ............................... 2
Front Panel ................................................. 1
Front Panel Brackets .................................. 2
Loose Components (Figure 7)
F. 8" Four-Jaw Universal Chuck
w/Camlock Studs and Cap Screws ............ 1
G. 10" Faceplate .............................................. 1
H. Bottle for Oil ............................................... 1
I. Tool Box...................................................... 1
J. Tailstock Wrench ........................................ 1
K. 3- and 4-Jaw Chuck Wrenches .............1 Ea
L. Square Socket T-Wrench ........................... 1
M. Quick Change Tool Holder ......................... 1
N. Change Gears ............................................ 1
—Gear 27-tooth .......................................... 1
—Gear 26-tooth ......................................... 1
—Gear 35-tooth ......................................... 1
—Gear 36-tooth ......................................... 1
—Gears 40-tooth (Installed) ....................... 2
—Gear 45-tooth ......................................... 1
—Gear 50-tooth ......................................... 1
—Gear 60-tooth ......................................... 1
—Gear 86/91-tooth (Installed) .................... 1
O. Hex Wrench Set 2, 4, 5, 6, 8, 10 mm ....1 Ea
P. Wrenches 9/11, 10/12, 12/14 ..................1 Ea
Q. Handwheel Handles ................................... 2
R. Spindle Sleeve MT#5 to MT#3 ................... 1
S. Arbor B16 to MT#3 ..................................... 1
T. Standard Dead Center MT#3 ..................... 1
U. Carbide Tipped Dead Center MT#3 ........... 1
V. Live Center MT#3 ....................................... 1
W. Phillips & Flat Screwdrivers #2 ..............1 Ea
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
D
A C
B
