H2933/H2934/G0447/G0581 Wide Belt Sander -47-

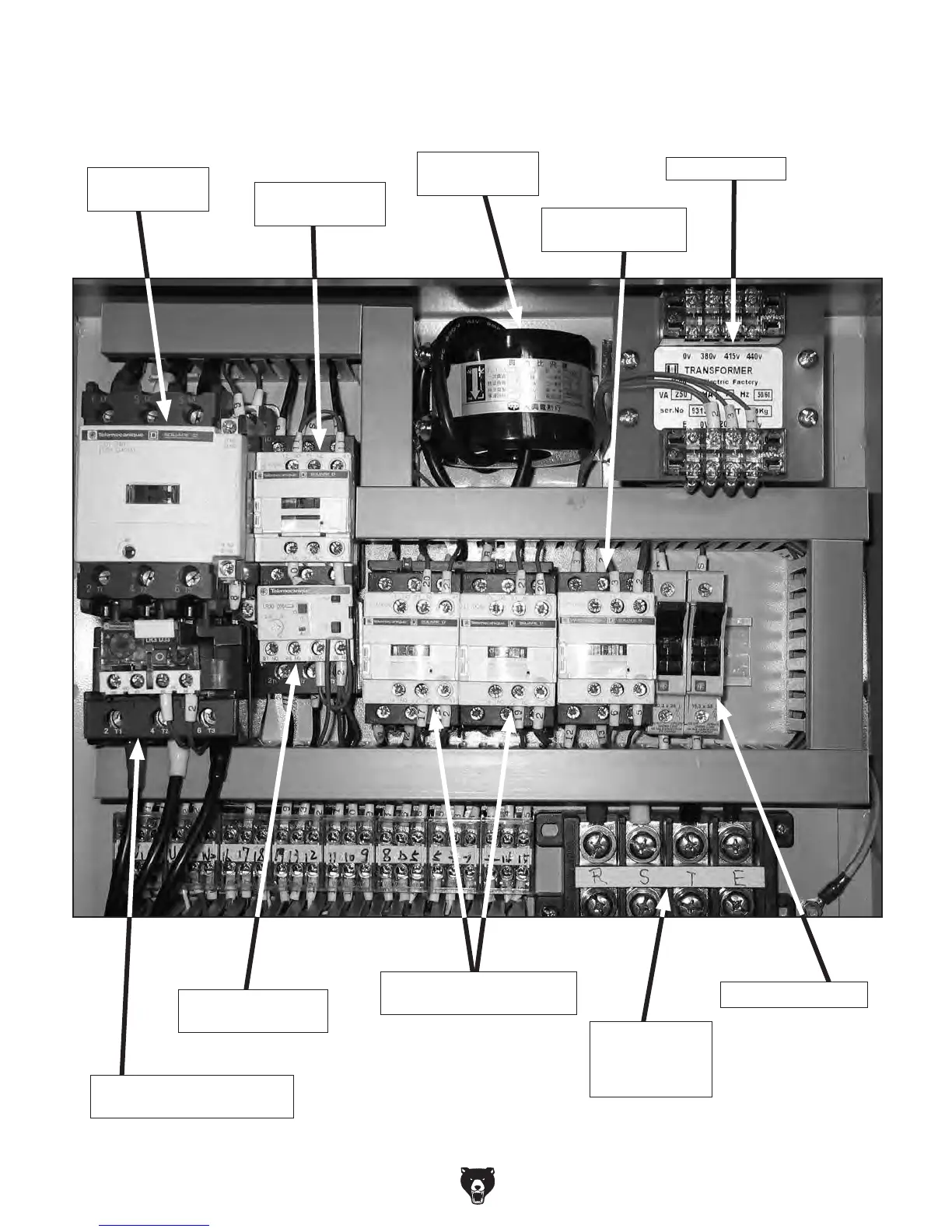

Wiring Box Components (H2933)
Transformer
Sanding Motor
Contactor
Conveyor Motor
Contactor
Amp Meter
Current Sensor
Emergency Brake
Contactor
UP/DOWN Table Motor
Contactors
Sanding Motor Overload
Relay
Conveyor Motor
Overload Relay
Two 4 Amp Fuses
220V/440V
Three-Phase
Power Supply
Junction Block
