H2933/H2934/G0447/G0581 Wide Belt Sander -49-

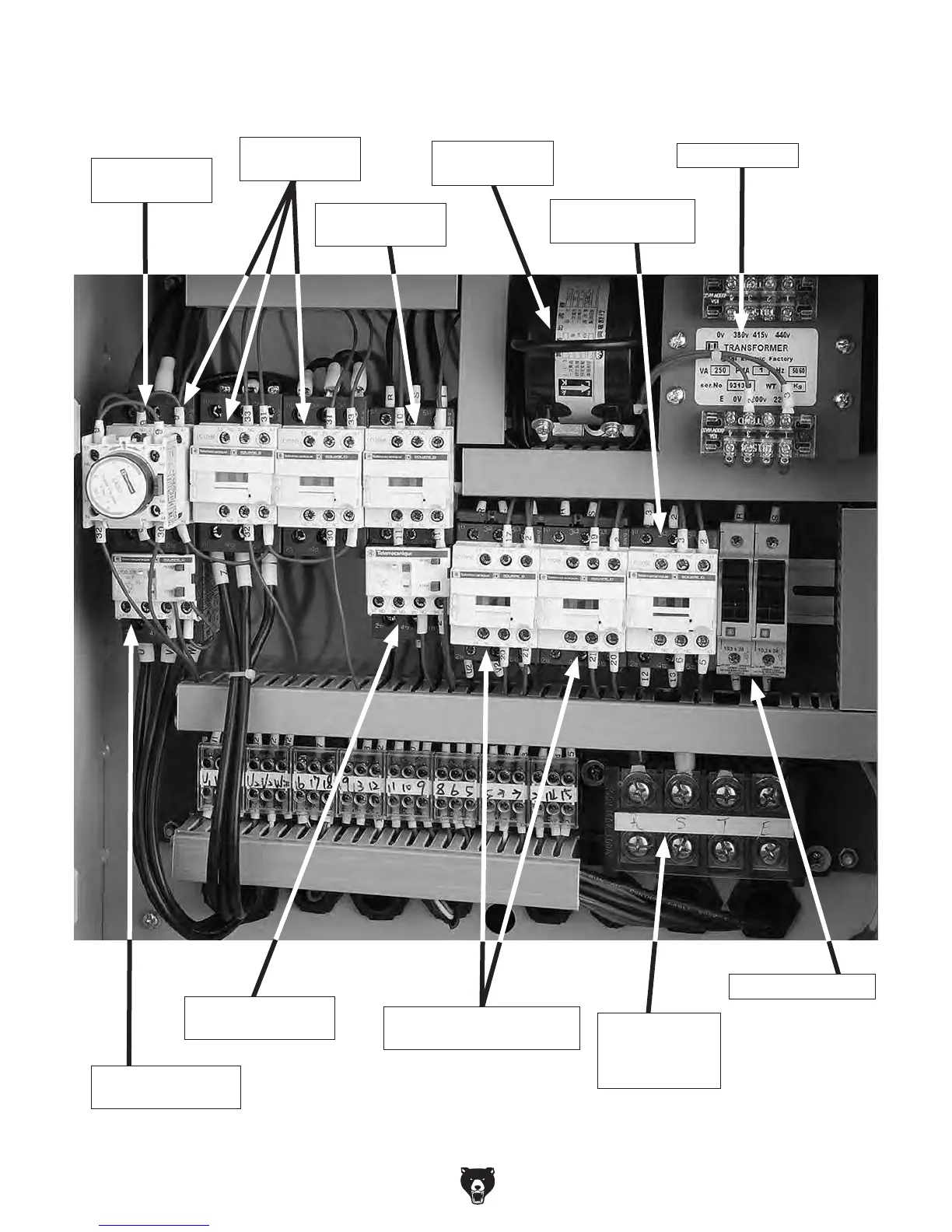

Wiring Box Components (H2934/G0447)
Sanding Motor
Start Delay
Conveyor Motor
Contactor
Emergency Brake
Contactor
UP/DOWN Table Motor
Contactors
Conveyor Motor
Overload Relay
Two 4 Amp Fuses
220V/440V
Three-Phase
Power Supply
Junction Block
Sanding Motor
Contactor
Sanding Motor
Overload Relay
Amp Meter
Current Sensor
Transformer
