GROOMING MOWERS - SGM Series - Models SGM 48-60-72-84
3

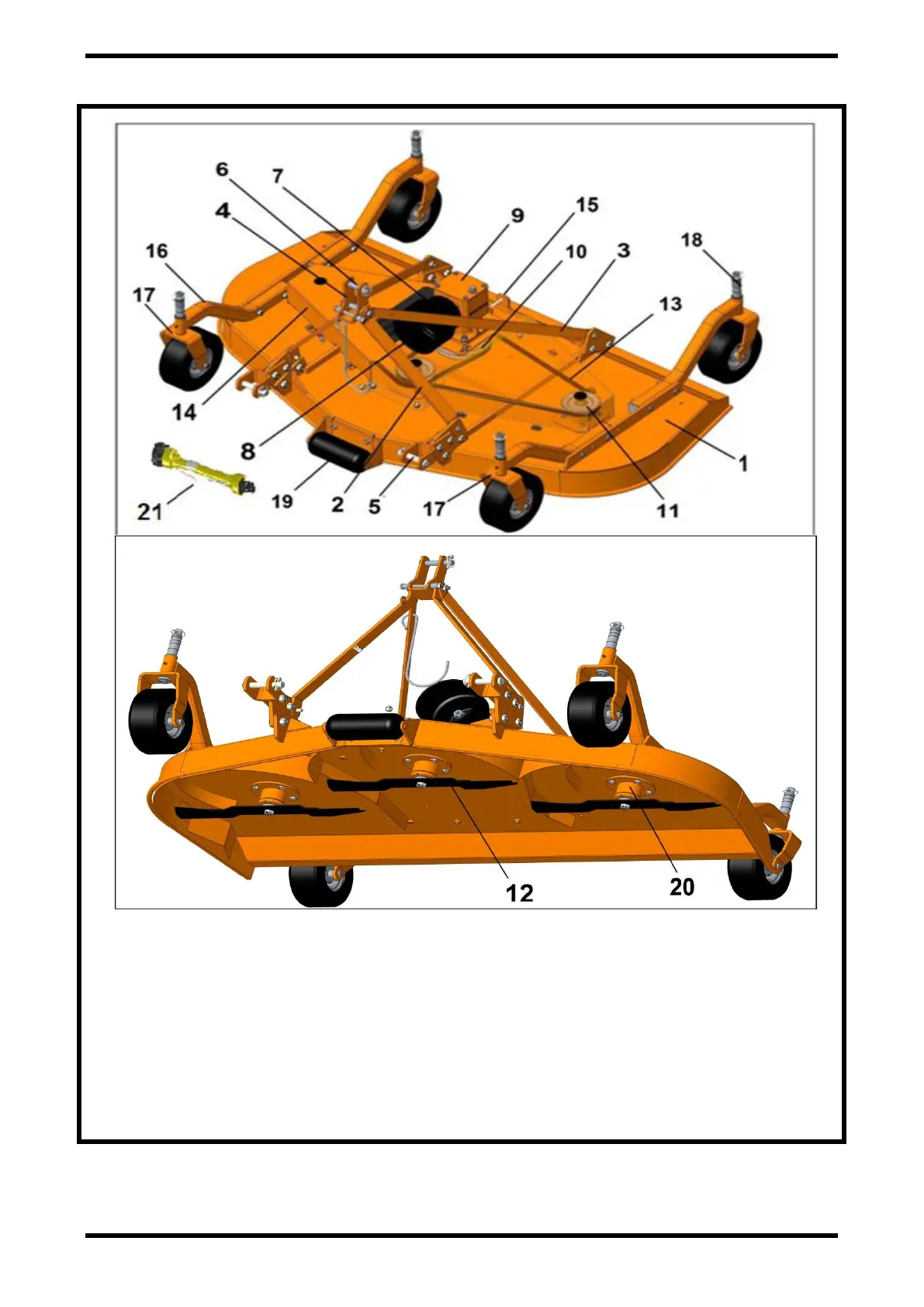

2.3. MAIN PARTS DESCRIPTION
1. Mower deck
2. Top hitch support
3. Top hitch arm
4. Top hitch link
5. Lower hitch pin
6. Upper hitch pin
7. PTO shield
8. Implement Input Connection
9. Gearbox multiplier
10. Driving pulley
11. Driven pulley
12. Blade
13. Transmission belt
14. Belt cover
15. Belt tensioner screw
16. Wheel arm
17. Swivel wheel
18. Height adjusting spacers
19. Front roller
20. Blade spindle
21. PTO driveshaft
NOTE
To make the illustrations more clear, some images of this manual may refer to machines lacking of
some components (e.g. belt cover).
