GROOMING MOWERS - SGM Series - Models SGM 48-60-72-84
21
5.3. ADJUSTMENTS
All adjustment operations must be performed with the tractor engine off, the PTO disengaged, the
mower lowered to the ground or on security stands, the parking brake set and the ignition key off.
Secure blocking prevents equipment from dropping due to hydraulic leak down, hydraulic system
failures, or mechanical component failures.
CUTTING HEIGHT ADJUSTMENT
The cutting height is the distance from the blades to the ground. It determines the height of the
mowed grass.

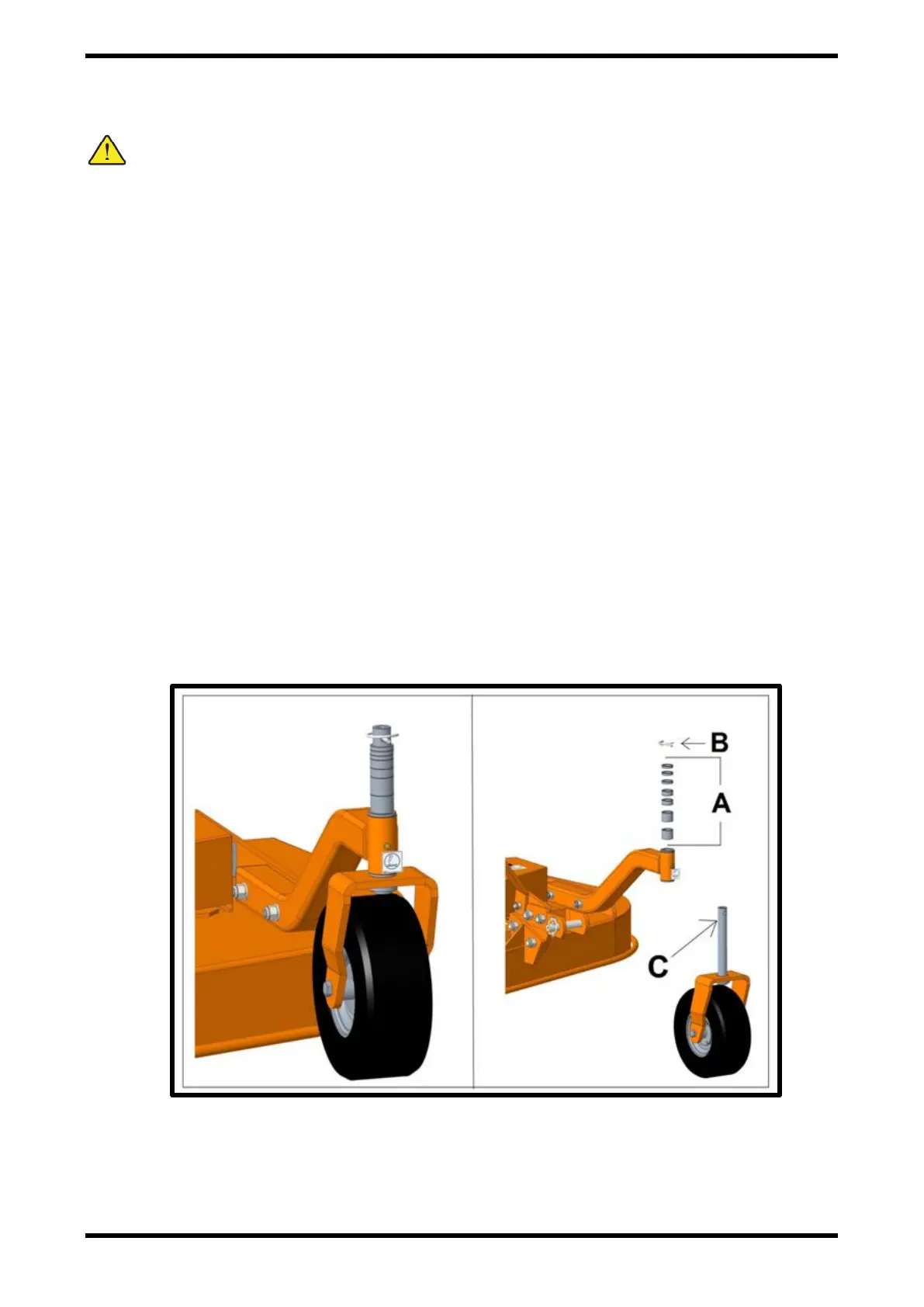

The cutting height can be adjusted by moving the position of the spacers (A) on the four wheel
yokes (see picture below):
Placing spacers between the wheel arm and the wheel yoke raises the cutting height by the size
of the spacer;
Removing spacers between the wheel arm and the wheel yoke lowers the cutting height by the
size of the spacer.
The SGM mowers have cutting height adjustable from 1” to 5”. To adjust the working depth, per-
form following steps:
Using the tractor, raise mower off the ground and support under it with secure blocking to keep
the mower from dropping down during adjustment operations;
