Safety 2
2.1 Product description and features
2.1.1 Product description
Growatt series photovoltaic inverters are used to convert the direct current generated by pho-
tovoltaic panels into alternating current, and send it to the grid in a three-phase manner.
Growatt MOD 3-1 5K TL3-X series inverter can be connected to 2 strings (12-15K TL3-X and 7-
11 K TL3-X-AU can be connected to three strings), has 2 maximum power tracking point track-
ers, so suitable for connection 2 Set of arrays of different panels.

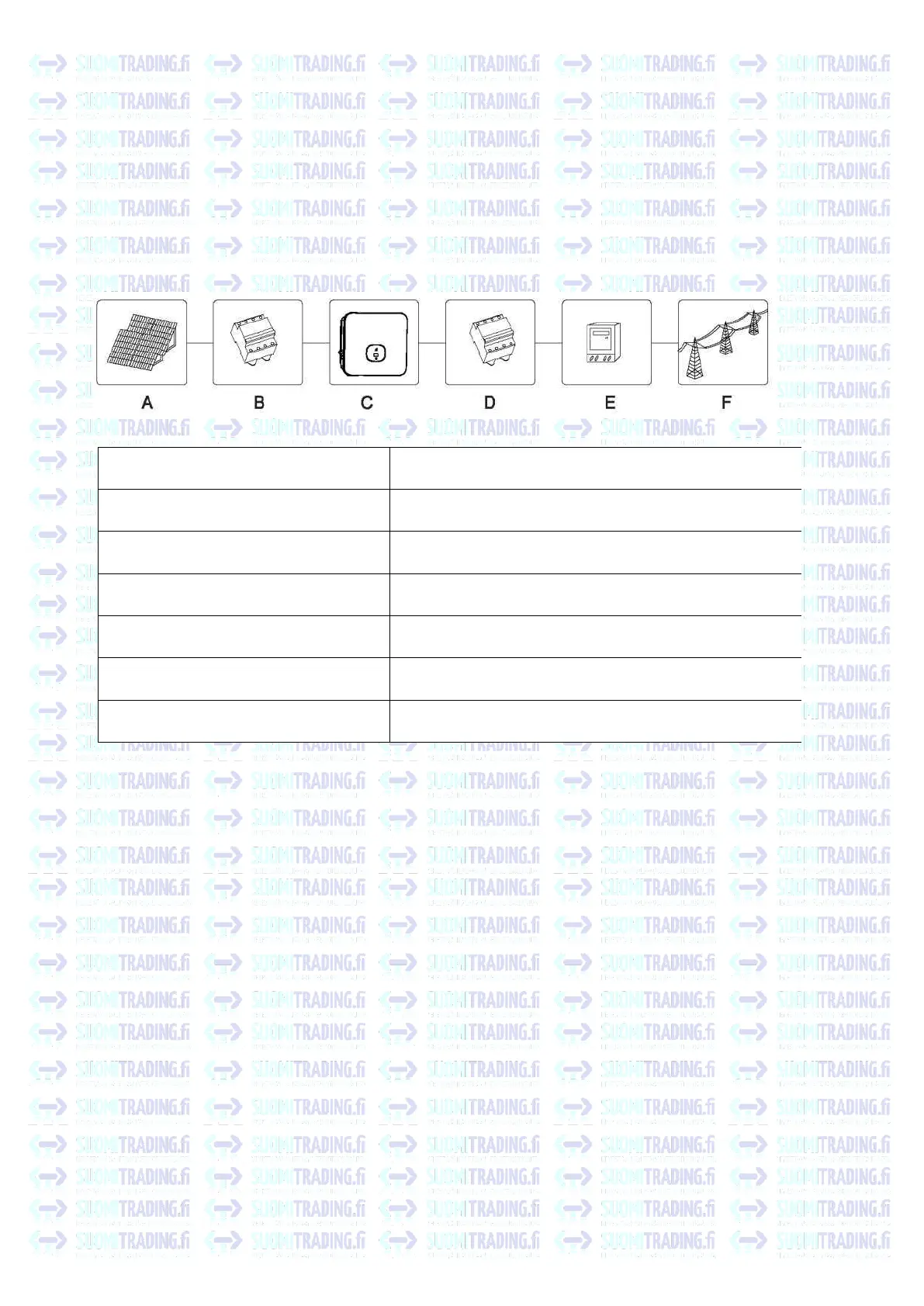

Position
Description
A
Solar panel
B
DC circuit breaker
C
Inverter
D
AC circuit breaker
E
Electric energy meter
F
Utility grid
As shown in Fig 1.1 above,a complete photovoltaic grid-connected system includes photovol-
taic modules,photovoltaic inverters,public grids and other components.ln the photovoltaic
module system,the photovoltaic inverter is a key component.
Note:lf the selected photovoltaic module requires positive or negative grounding, please con-
tact Growatt for technical support before installation.
2.1.2 Productfeatures
The characteristics of the inverter are as follows:
> Dual independent maximum power point tracking
> Built-in DC switch
> Compatible with RS485/Wifi/GPRS/4G communication
> 140V-1100V input voltag range
> The maximum efficiency is as high as 98.6%
> OLED+LED/WIFI+APP display
> Integrated with touch button
> Protection grade Ip66
> The weight is only 16kg
> Simple installation
4
Fig 2.1

Other manuals for Growatt MOD 11KTL3-X

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt MOD 11KTL3-X and is the answer not in the manual?

Growatt MOD 11KTL3-X Specifications

General IconGeneral
Product type-
Maximum power11000 W
Output current18.3 A
Output frequency50/60 Hz
MPP voltage range140 - 1000 V
Number of strings per MPPT1
Output power capacity (max)11 kVA
Input operation voltage (max)1100 V
Input operation voltage (min)160 V
Maximum input current per MPPT13 A
Output operation voltage (max)440 V
Output operation voltage (min)340 V
Total Harmonic Distortion (THD)3 %
Number of maximum power point tracking (MPPT)2
Operating temperature (T-T)-25 - 60 °C
Built-in displayYes
Display technologyOLED
Product colorWhite
Overvoltage categoryCAT II
Power protection featuresOver voltage, Short circuit
International Protection (IP) codeIP66
Weight and Dimensions IconWeight and Dimensions
Depth178 mm
Width425 mm
Height387 mm
