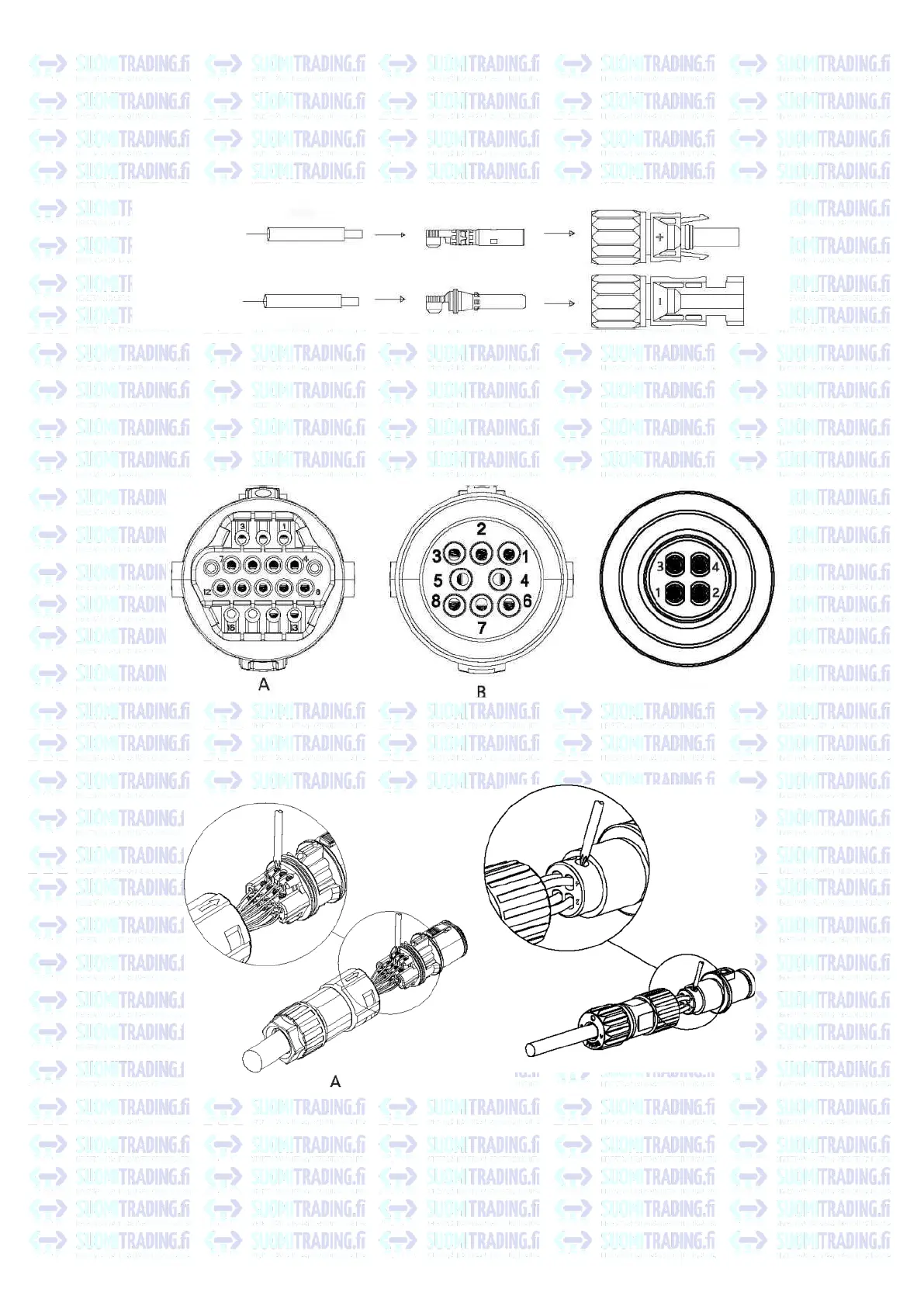

Connect DC terminal
Cables
Positive metal terminal
Positive connector
4~6mm
2
4~6mm
2
Cables
Negative metal terminal
Fig 6.9
Negative connector
6.4 Connect the signal cable
The MOD series inverter has an16-Pin or 8-Pin signal connector except Vietnam models.The
client signal line port is as follows:
Fig 6.10
1.Strip the cable 10mm through the waterproof gland, thread sleeve, and tighten the
screws.
Bjust for Vietnam models
Fig 6.11
22
C just for Vietnam models

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
