OLED display and touch button 9
The OLED display can display the running status of the inverter, as well as various parame-
ters information, and the display interface of the inverter can be switched and the inverter
parameters can be set by touching the button.

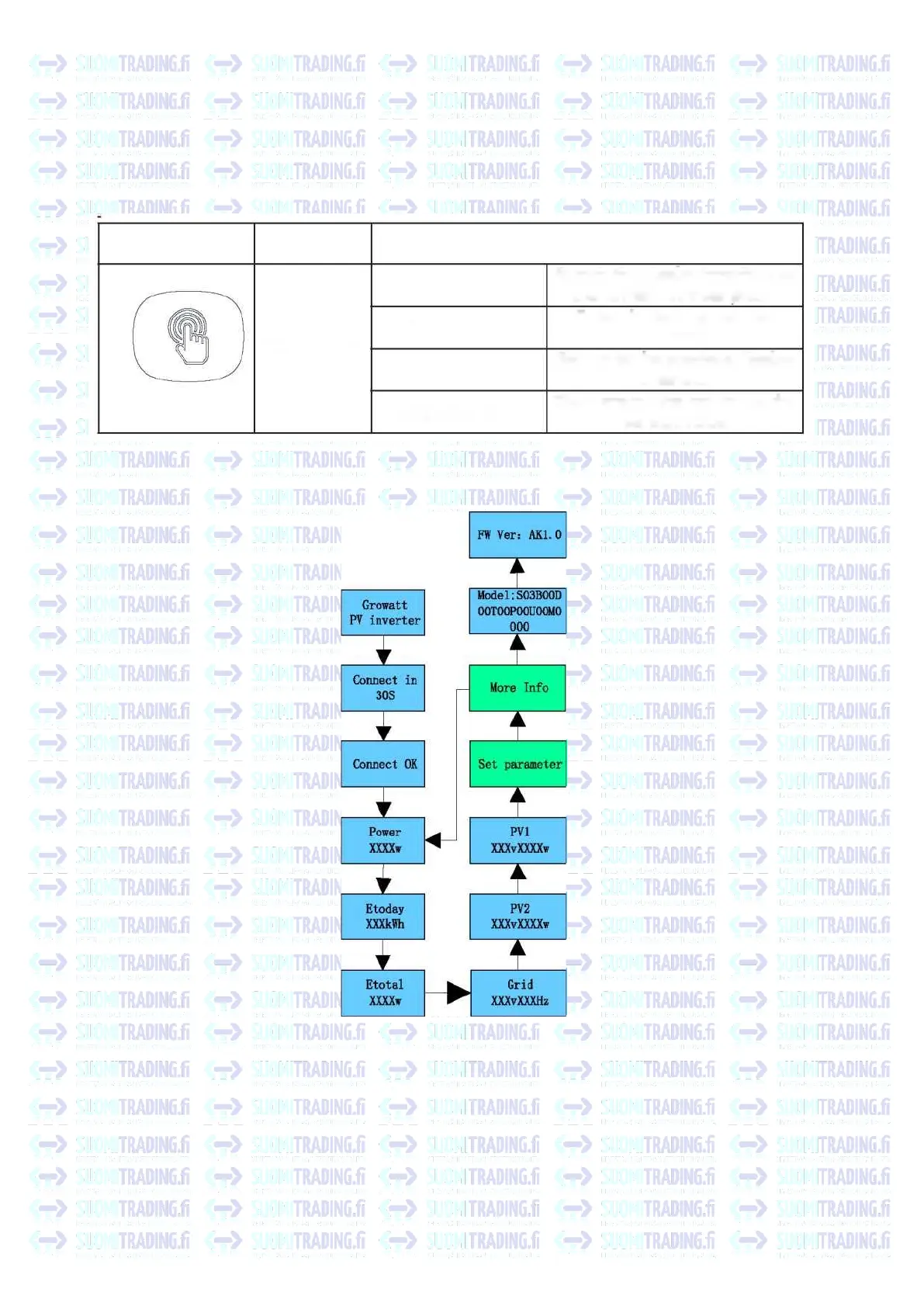

9.1 Boot display
When the inverter is turned on, the OLED display interface is as follows:
Fig 9.1
9.2 OLED display wake up
After the inverter works normally for 5 minutes,the OLED display will be automatically
turned off.At this time,there is no display on the OLED,and the leaf of the indicator win-
dow is green.You need to view the dispaly data or make settings to make the OLED dis-
paly again through touch operation.
32
Mark
Describe
Explain
Touch mark
Single touch
Double touch
Triple touch
Long press for 5s
Switch the display interface or
the current number plus 1
Enter the setting state or
confirm
Return to the previous display
interface
The current data returns to the
default value

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
