Growatt MOD 11KTL3-X Manual

Unpacking inspection 4
Before opening the inverter package,please check whether the outer package is damaged.After
unpacking,please check whether the appearance of the inverter is damaged or lack of acces-
sories.If there is damage or missing parts,please contact the dealer.

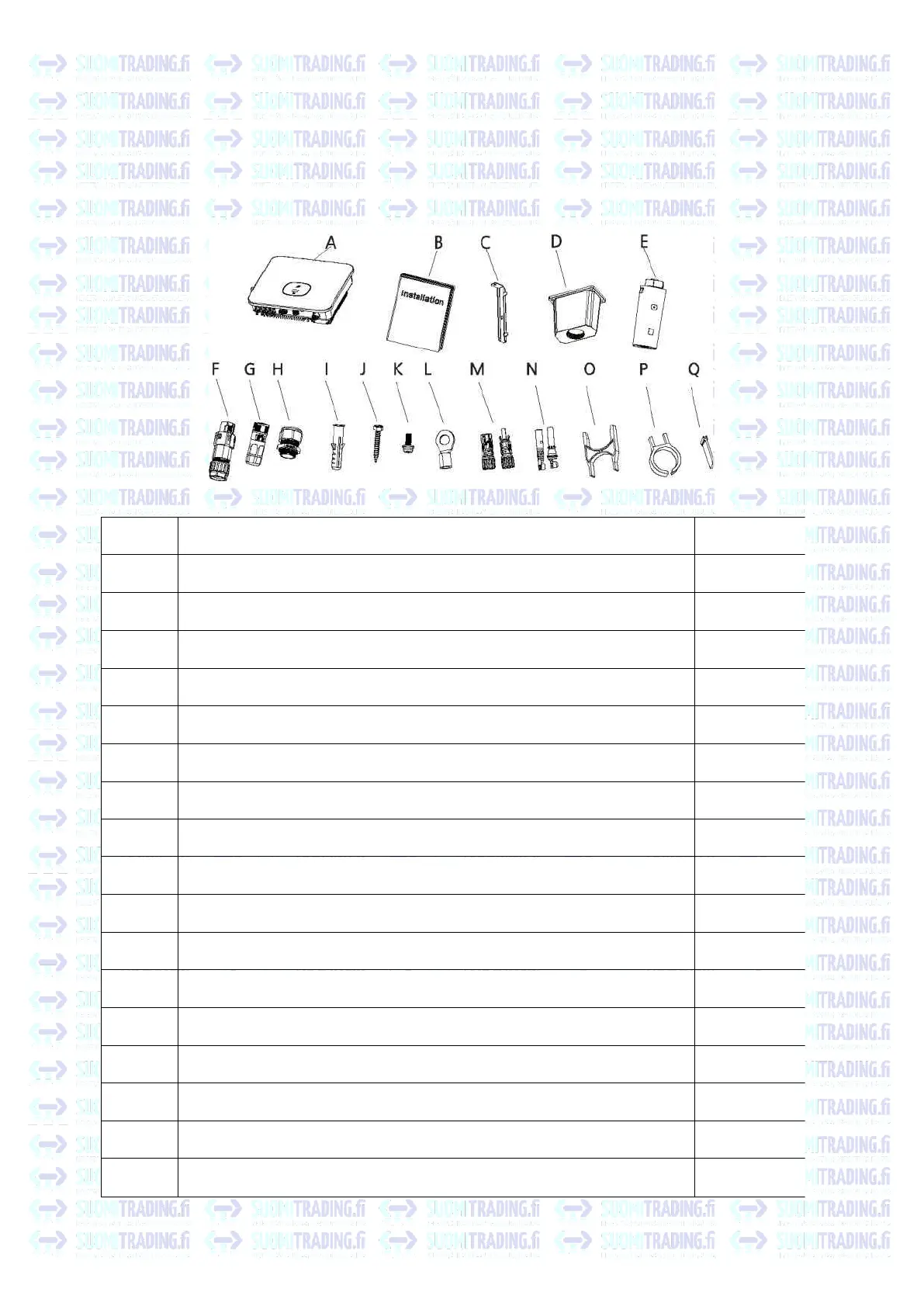

Fig 4.1
No.
Description
Qty.
A
Inverter
1
B
Quick Installation Manual
1
C
Wall mount
1
D
AC waterproof cover(just for Vietnam models)
1
E
Datalogger
1
F
COM port signal connector
1
G
AC connector
1
H
Waterproof connector(just for Vietnam models)
1
I
Plastic expansion tube
3
J
Expansion screw
3
K
Security screw
1
L
AC customer's terminal(just for Vietnam models)
5
M
PV terminal shell
3/3
N
PV terminal core
3/3
0
COM port removal tool
1
P
PV terminal removal tool
1
Q
AC terminal block insulation partitionist for Vietnam models)
1
10

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
