Growatt MOD 11KTL3-X Manual

Product overview 3

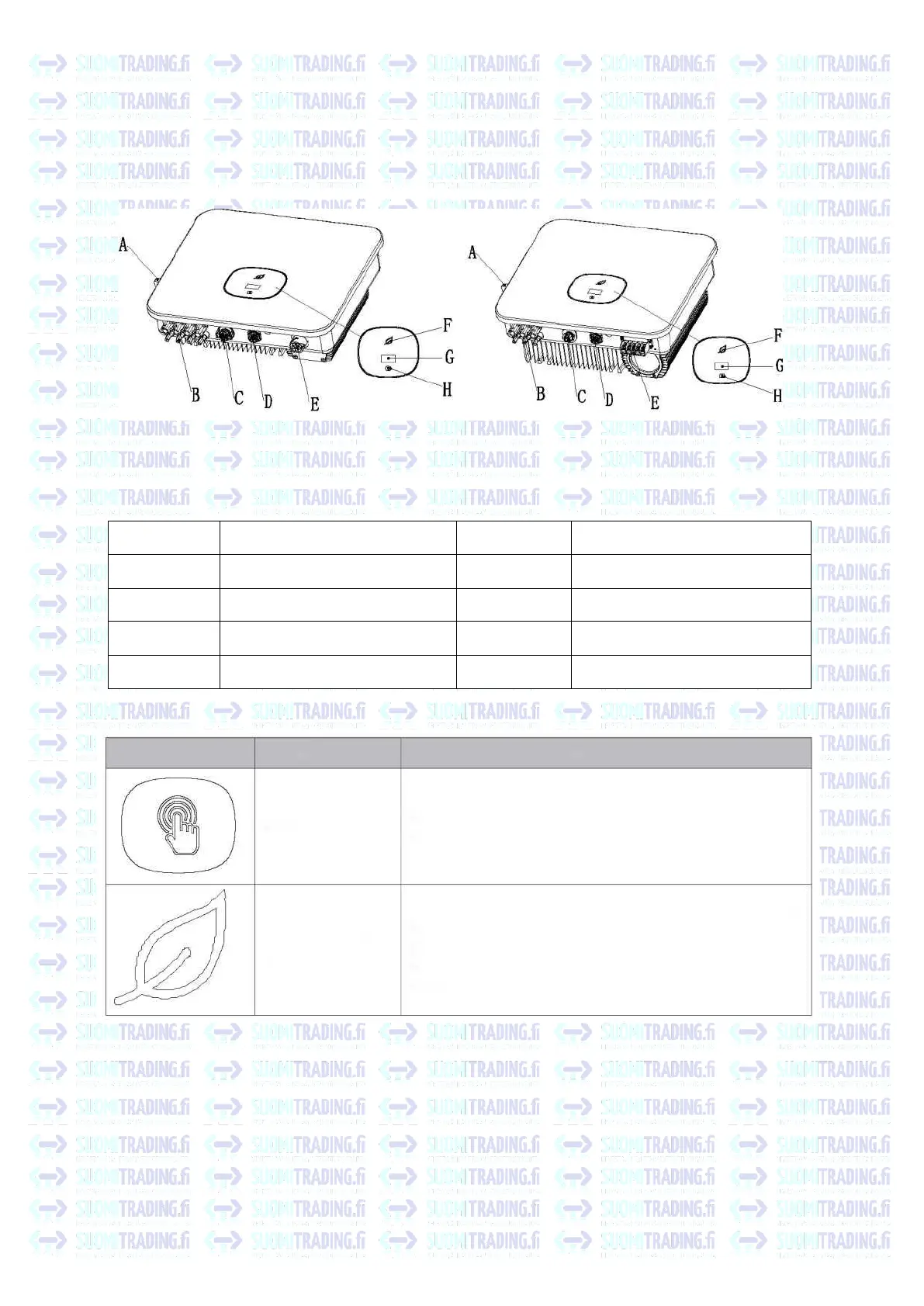

3.1 Appearance overview
The appearance instructions are as follows:
No.
Name
No.
Name
A
DC switch
E
AC terminal
B
PV terminal
F
LED indicator
C
RS485 port
G
LCD screen
D
USB port
H
Touch button
The label description on the inverter:
8
Fig 3.1
(just for Vietnam models)
LOGO
Description
Description
Tap logo
Touch button: We can switch the LED display and set
parameters by touching.
Inverter status
identification
Indicate the current running status of the inverter
Red: fault
Green: normal operation Flashing
red light: warning Flashing green:
update program

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
