Growatt MOD 11KTL3-X Manual

Preparation before wiring :
Connect the protective ground wire (PE)
Connect the inverter to the grounding bar through the protective earth (PE) to achieve
grounding protection.

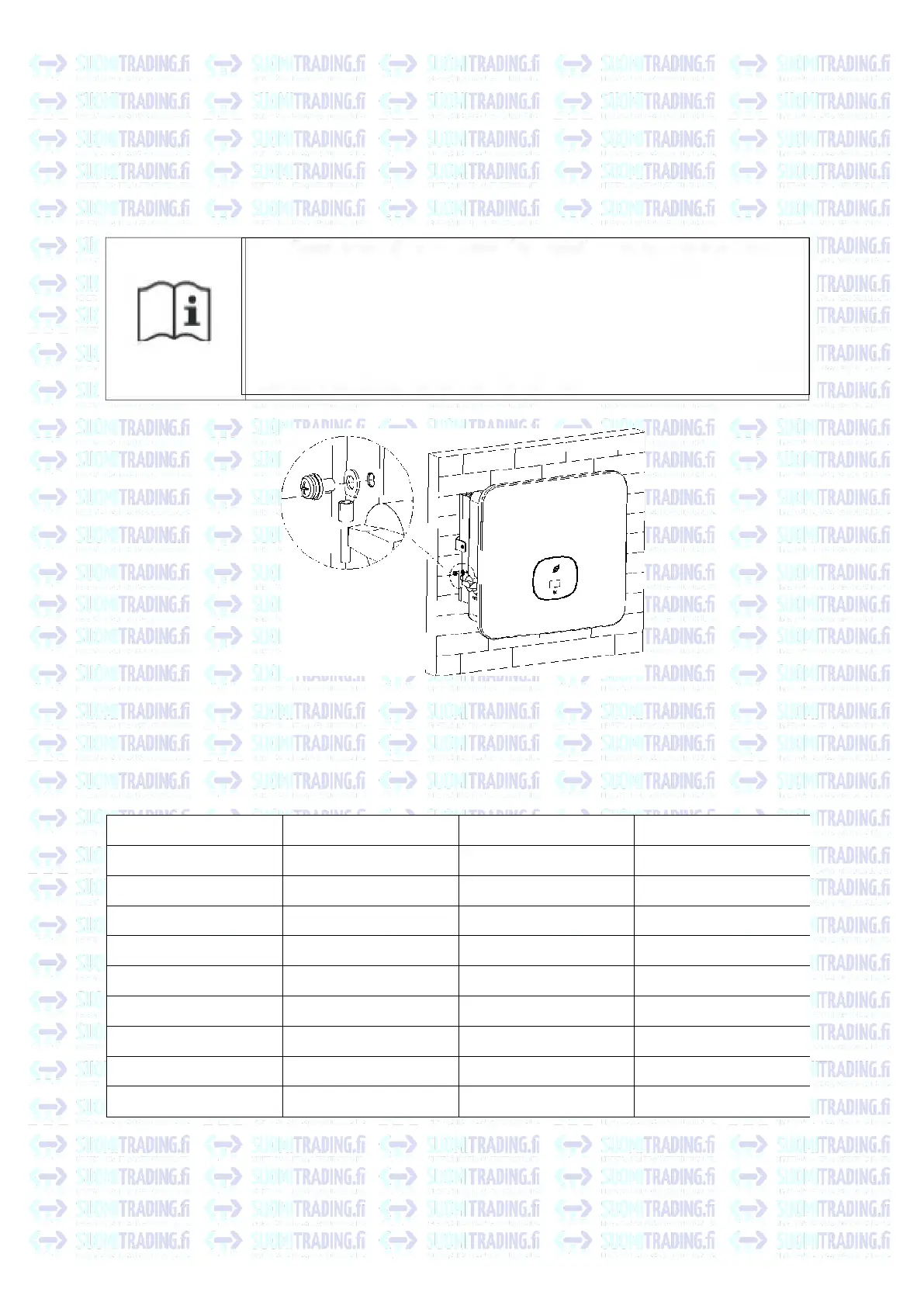

Fig 6.1 Grounding diagram
> Disconnect the inverter DC switch,AC side circuit breaker or switch.
> Measure the voltage and frequency of the public grid (voltage:AC 230V; frequency:50Hz)
>
The recommended specifications of the AC output switch are as follows:
Inverter model
Switch specification
Inverter model
Switch specification
MOD 3000TL3-X
1 0A/230V
MOD 9000TL3-X-AU
20A/230V
MOD 4000TL3-X
1 0A/230V
MOD 1 0KTL3-X
25A/230V
MOD 5000TL3-X
1 5A/230V
MOD 10KTL3-X-AU
25A/230V
MOD 6000TL3-X
1 5A/230V
MOD 11KTL3-X
25A/230V
MOD 7000TL3-X
1 5A/230V
MOD 11 KTL3-X-AU
25A/230V
MOD 7000TL3-X-AU
1 5A/230V
MOD 1 2KTL3-X
25A/230V
MOD 8000TL3-X
20A/230V
MOD 1 3KTL3-X
30A/230V
MOD 8000TL3-X-AU
20A/230V
MOD 1 5KTL3-X
30A/230V
MOD 9000TL3-X
20A/230V
/
/
17
> Good grounding is good for resisting surge voltage impact and im-
proving EMI performance. Therefore,you need to ground the wire before
connecting the AC,DC,and communication cables.
> For a single-machine system,only the PE cable needs to be
grounded;For a multi-machine system,the PE cables of all inverters need
to be connected to the same grounding copper bar to ensure equipoten-
tial connection.

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
