Growatt SPH Series Operation Manual

27 28
RJ45 terminal pin assignment
Method of asserting demand response modes
Note:
If the cable such as “NTC” (lead-acid battery temperature sensor) cable is not used,
please do not remove the filler plug from the cable support sleeve.

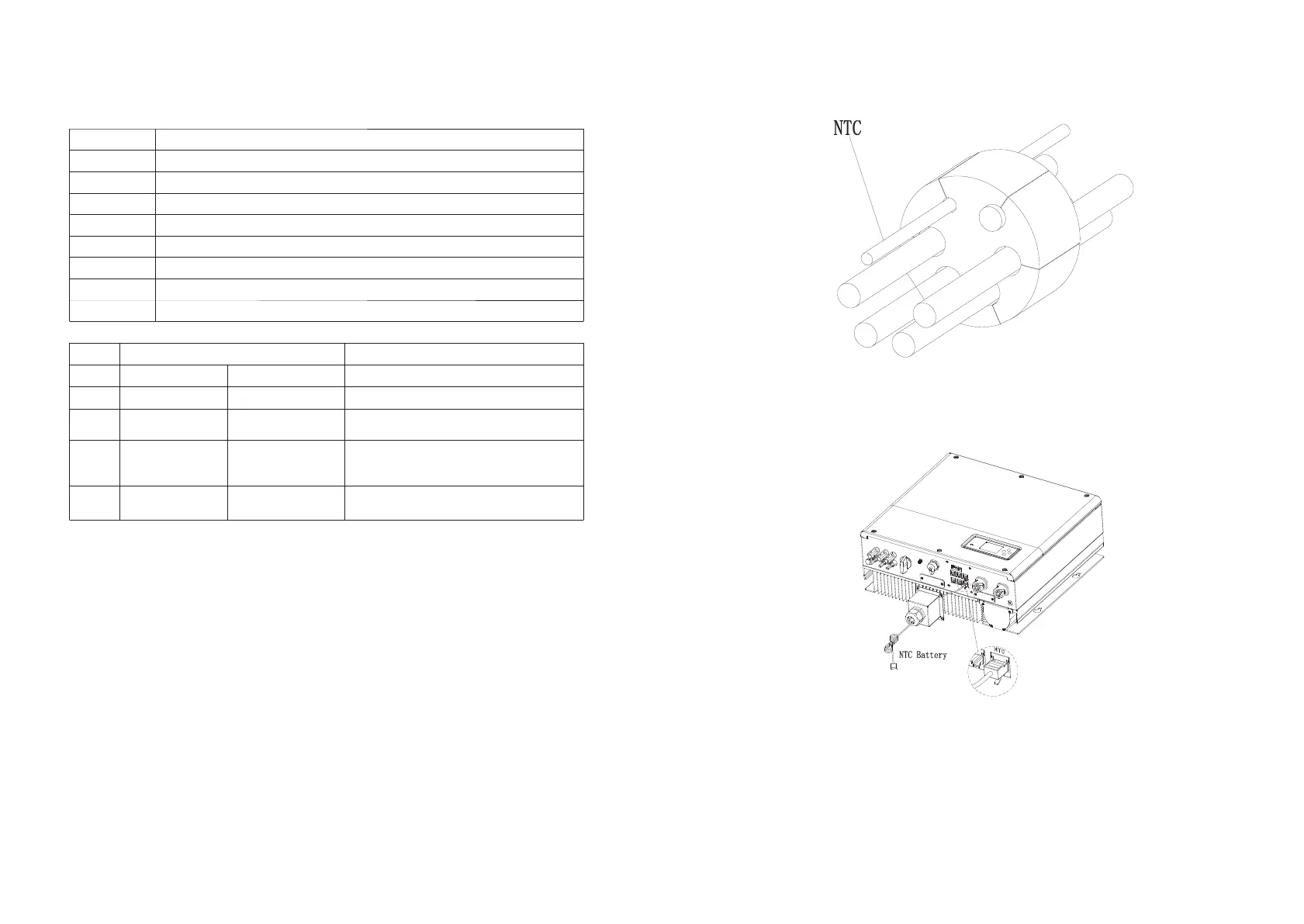

5.4.8 Connection of temperature probe for lead-acid battery
When customer using lead-acid battery, the temperature probe of the lead-acid battery
is used to detect the ambient temperature of the lead-acid battery, the battery
temperature cable of the SPH side connection steps are as follows:
Step1: Unscrew the swivel nut from the cable gland.
Step2: Thread the swivel nut over the “NTC” cable.
Step3: Press the cable support sleeve out of the cable gland.
Step4: Remove the filler plug from the cable support sleeve.
Step5: Route the “NTC” cable through a min opening in the cable support sleeve.
Step6: Thread the “NTC” cable through the cable gland.
Step7: Insert the RJ45 plug of the network cable into the “NTC” pin connector on the
inverter until it snaps into place.
Step8: If no other cables need to be installed, lock the waterproof cover to the inverter
with screws.
Step9: Screw the swivel nut onto the waterproof cover.
PIN
assignment for inverter scapable of both charging and discharging
1
2
3
4
5
6
7
8
DRM5
DRM6
DRM7
DRM8
RefGen
COM/DRM0
/
/
MODE
Rj45 socket asserted by shorting pins
Requirement
DRM0
DRM5
DRM6
DRM7
DRM8
5 6
1 5
2 5
3 5
4 5
operate the disconnection device
Do not generate power
Do not generate at more than 50% of
rated power
Increase power generation (subject to
constraints from other active DRMs)
Do not generate at more than 75% of
rated power and sink reactive power if
capable
Chart 5.34
Chart 5.35
Note:
1. If you are using a lithium battery, you do not need to install this temperature probe,
the probe of the temperature cable should be attached to the surrounding environment
of the lead-acid battery, and the length of this cable is 1.5m, so pay attention to the
distance of battery and SPH.
2.If the cable such as “NTC” (lead-acid battery temperature sensor) cable is not used,
please do not remove the filler plug from the cable support sleeve.

Growatt SPH Series Specifications

General

Type	Hybrid Inverter
Max. Input Voltage	600V
Number of MPPTs	2
Protection Rating	IP65
Output Power Range	3kW - 10kW
Rated AC Output Power	3-10 kW
Communication Interfaces	RS485, USB, Wi-Fi
Output Voltage	230 V
Frequency	50/60 Hz
Operating Temperature	-25°C to 60°C
Cooling Method	Natural Convection
