Growatt SPH Series Operation Manual

45
46
Chart 6.16
Chart 6.17
Chart 6.18

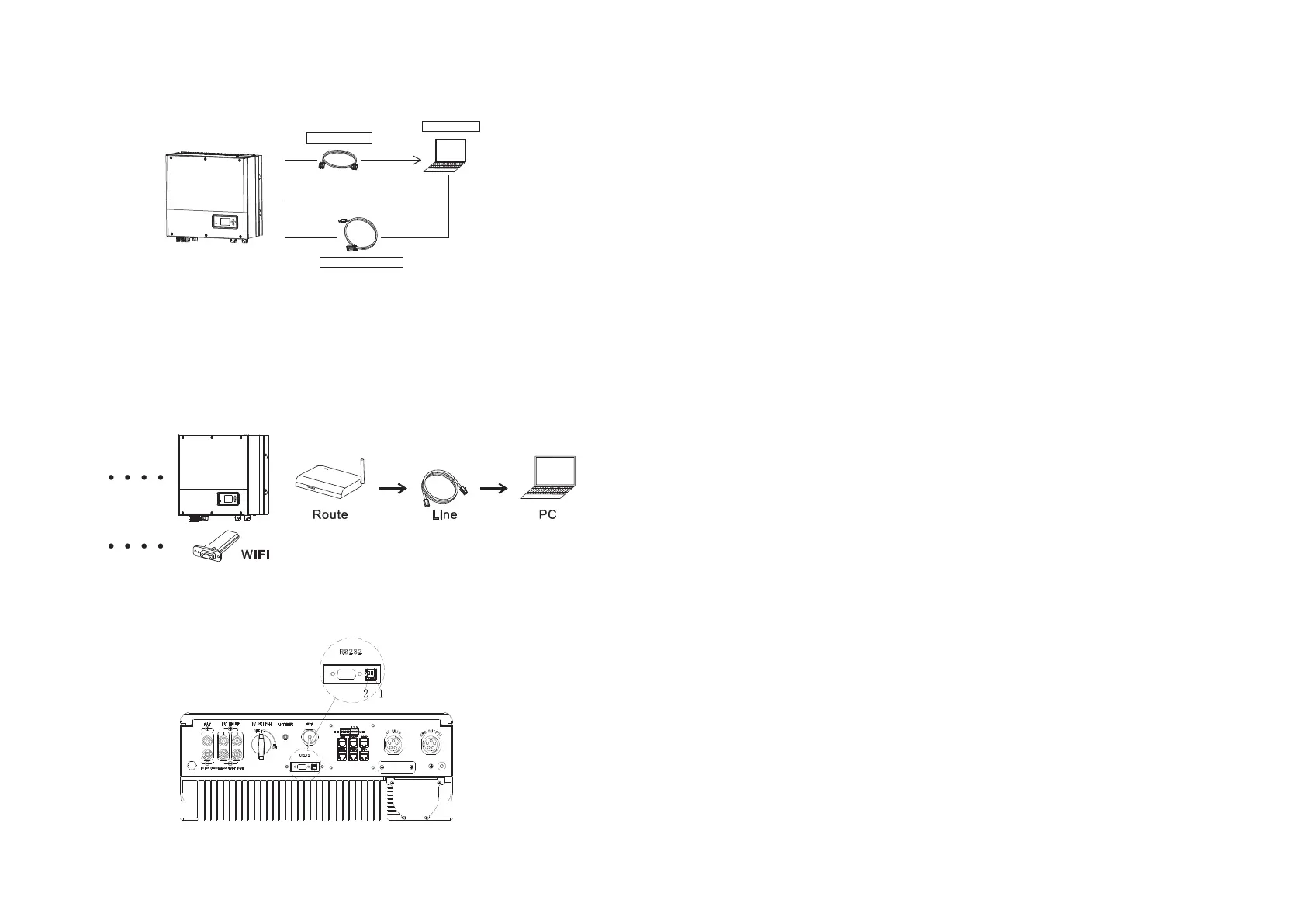

The wiring diagram is as follows:
RS232 cable
Usb-RS232 cable
Computer
6.5.3 The SPH's monitoring
The SPH provide RS232 interface. Users can through the following communication
solution to monitor the SPH.
Note:
This monitoring devices can only be used with Growatt's Shineserver / shinephone
monitor platform. Wi-Fi-S / Shinelink are connect with inverter via RS232 interface and
use computer terminal / or mobile phone for data monitoring.
Before use WIFI communication, you should make sure the follow PIN1 and PIN2 are ON:
Start-up and shut down SPH system 7
7.1 Start-up the SPH system
Users can start-up SPH inverters through following steps:
1.Connect to PV.
2.Connect to Grid.
3.Connect to Battery.
4.Turn the switch on in turn of Grid, battery and PV.
5.When the LED turns green, the working information on LCD indicates the successful
start-up of SPH inverter.
7.2 Disconnect the SPH system
1.Turn off all the circuit breaker and switch.
2.Disconnect PV.
3.Disconnect the inverter.
4.Disconnect the battery.
5.Pull up AC PLUG connection.
6.Waiting until LED, LCD display have gone out, the SPH is shut down completely.

Growatt SPH Series Specifications

General

Type	Hybrid Inverter
Max. Input Voltage	600V
Number of MPPTs	2
Protection Rating	IP65
Output Power Range	3kW - 10kW
Rated AC Output Power	3-10 kW
Communication Interfaces	RS485, USB, Wi-Fi
Output Voltage	230 V
Frequency	50/60 Hz
Operating Temperature	-25°C to 60°C
Cooling Method	Natural Convection
