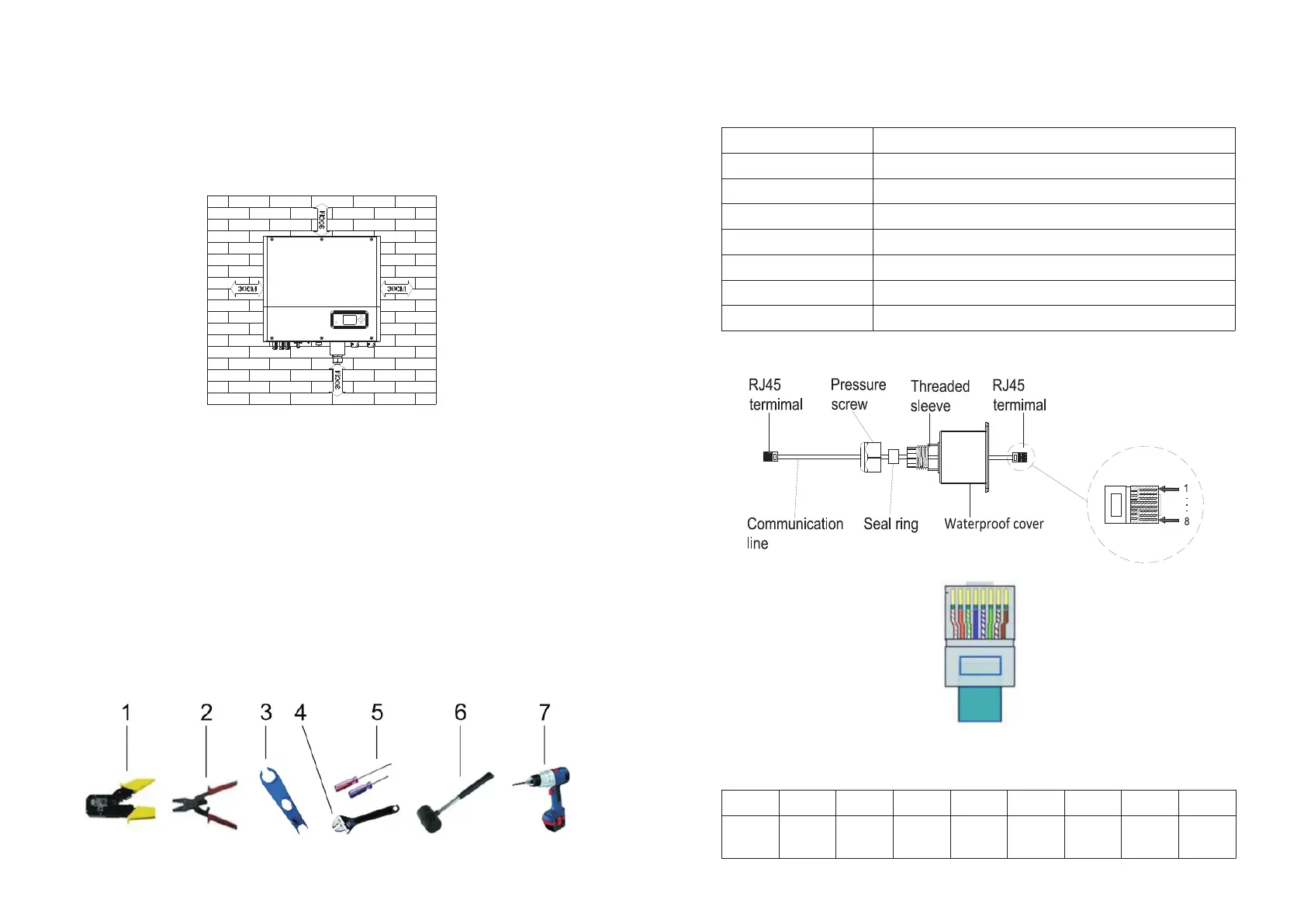

H. Installation position shall not prevent access to the disconnection means.
I. In order to ensure machine can run normally and easy to operate, please pay attention
to provide adequate space for SPH, Please refer to below:
Chart 5.3
Chart 5.4
Chart 5.5
Chart 5.6
J. Do not install the machine near television antenna or any other antennas and antenna
cables.
K. Don't install the machine in the living area.
L. Be sure that the machine is out of the children's reach.
M. Taking the battery fixing space into account, about the dimensions please reference
user manual.
N. The Inflammable and explosive dangerous goods must not be placed around battery in
case of cause serious danger.
5.2 Installation requires tools and RJ 45 terminal sequence of the
LAN line.
When installing，we need to use tools as follow，prepare the follow tools before
installing：
LAN line RJ45 sequence as follow:
LAN line 1-8 colors as below:
No.
Description
1
2
3
4
5
6
7
Press the RJ45 terminal
Press battery terminal connector
Disconnect PV terminal
Unscrew nut
Unscrew screw
Knock expansion screw
Drill holes on the wall
PIN
1
2
3
4
5
6
7
8
Color
White
orange
Orange
White
green
Blue
White
blue
green
White
brown
brown

Growatt SPH Series Specifications

General

Type	Hybrid Inverter
Max. Input Voltage	600V
Number of MPPTs	2
Protection Rating	IP65
Output Power Range	3kW - 10kW
Rated AC Output Power	3-10 kW
Communication Interfaces	RS485, USB, Wi-Fi
Output Voltage	230 V
Frequency	50/60 Hz
Operating Temperature	-25°C to 60°C
Cooling Method	Natural Convection
