1413
Chart 5.4
Chart 5.3

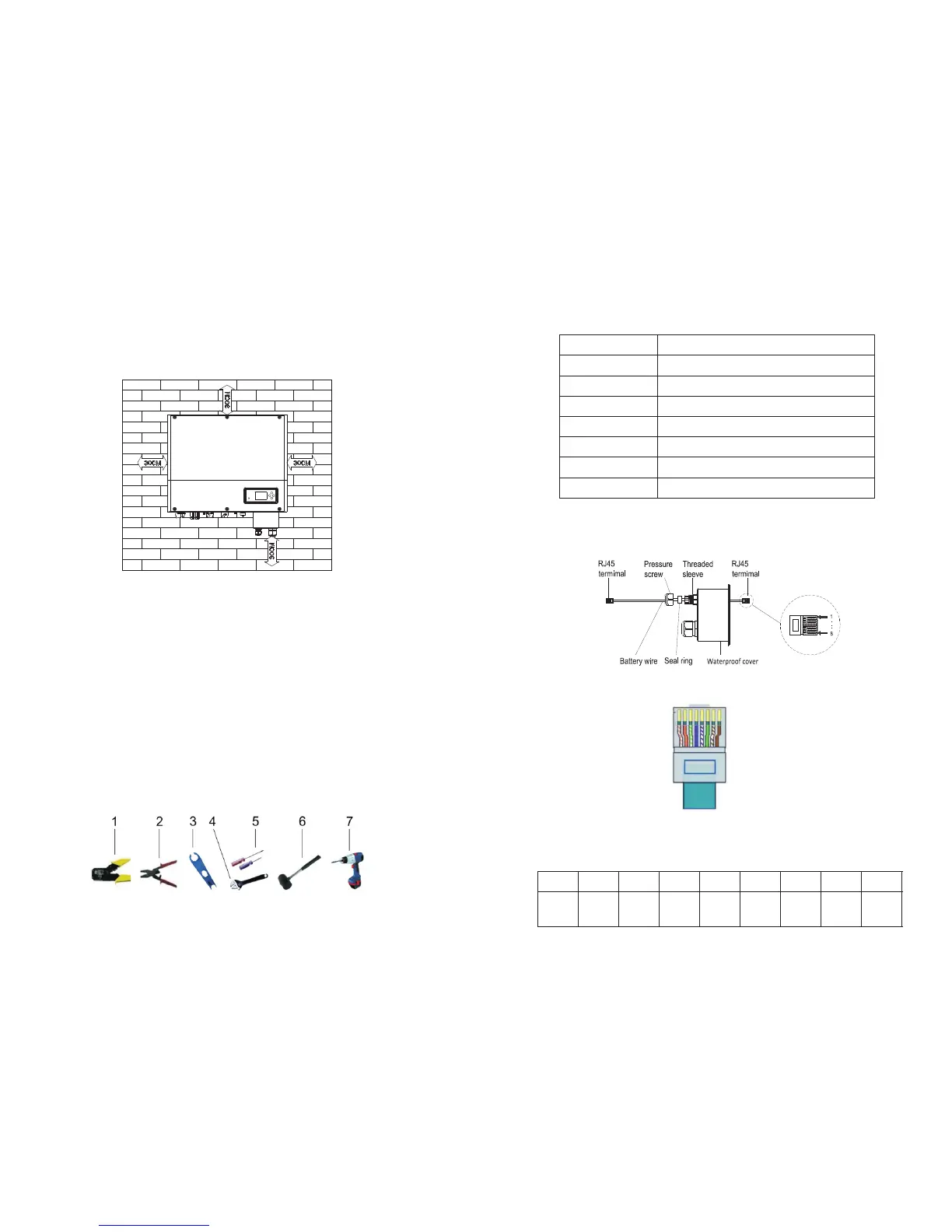

5.2 Installation requires tools and RJ 45 terminal sequence
of the LAN line
H. Installation position shall not prevent access to the disconnection means.
I. In order to ensure machine can run normally and easy to operate, please pay
attention to provide adequate space for SPH, Please refer to below:
J. Do not install the machine near television antenna or any other antennas and
antenna cables
K. Don't install the machine in the living area
L. Be sure that the machine is out of the children's reach
M. Taking the battery fixing space into account, about the dimensions please
reference user manual
N. The Inflammable and explosive dangerous goods must not be placed around
battery in case of cause serious danger.
When installing，we need to use tools as follow，prepare the follow tools before
installing：
No
1
2
3
4
5
6
7
Description
Press the RJ45 terminal
Press battery terminal connector
Disconnect PV terminal
Unscrew nut
Unscrew screw
Knock explosion bolt
Drill holes on the wall
LAN line RJ45 sequence as follow：
Chart 5.5
Chart 5.6
PIN 1 2 3 4 5 6 7 8
color
White
orange
Orange
White
green
Blue
White
blue
green
White
brown
brown
LAN line 1-8 colors as below:
