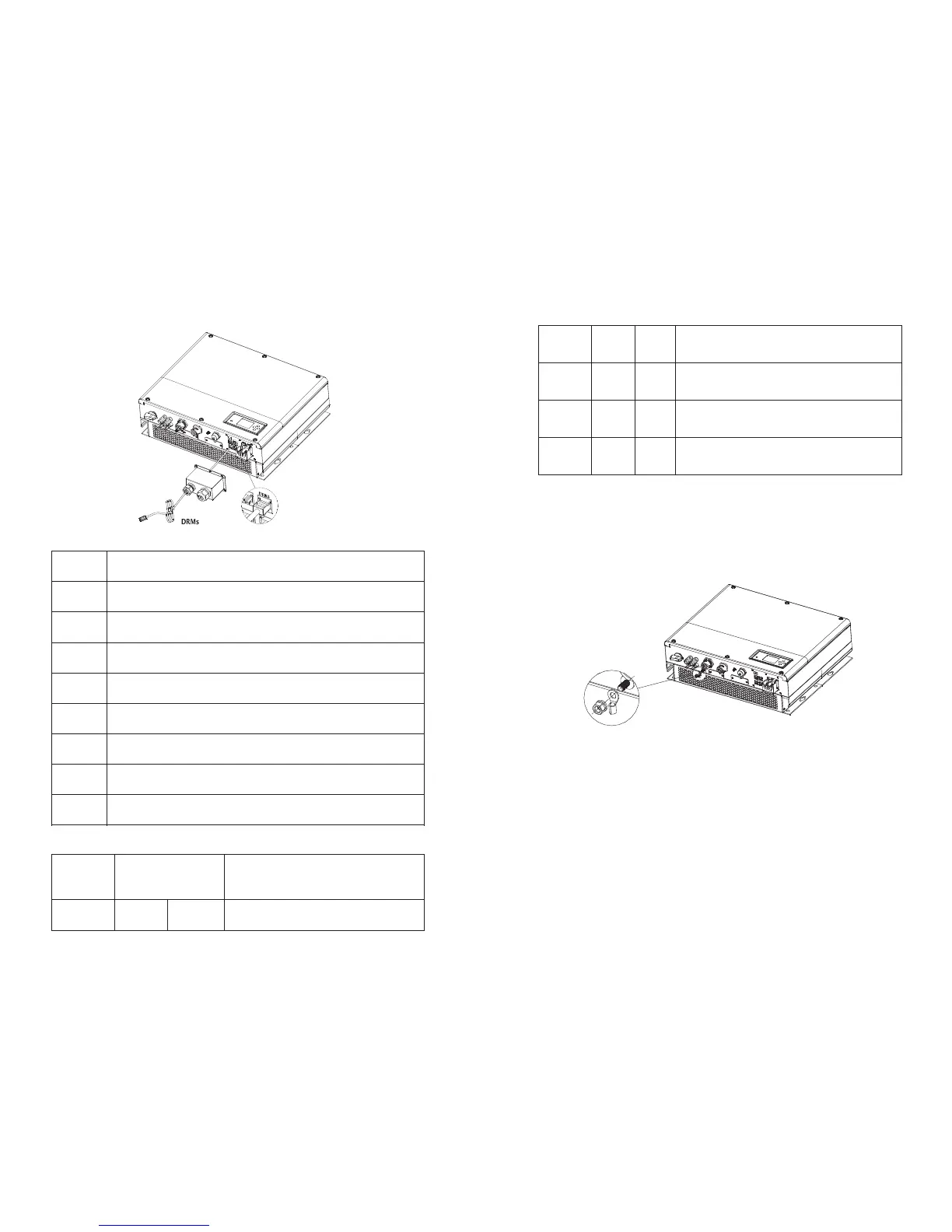

Page #18 background imageLoading...
Page #18 background image
29 30
Chart 5.29
RJ45 terminal pin assignment
5.4.9 Grounding connection
grounding
SPH must be grounded by cable, the grounding point is showed as follow, and the
minimum grounding cable wire diameter is 10.0mm2.
Chart 5.30
DRM5
1
5
Do not generate power
DRM6
2
5
Do no generate at more than 50% of rated
power
DRM7
3
5
Do not generate at more than 75% of rated
power and sink reactive power if capable
DRM8
4
5
Increase power generation(subject to
constraints from other active DRMs)
MODE
RJ 45 socket asserted
by shorting pins
Requirement
DRM0
6
Operate the disconnection device
Method of asserting demand response modes
PV Array Grounding
Grounding conductor of PV panel brackets must be firmly connected to earth at PV
array side and inverter side and SP side. The sectional area of grounding conductor
should be equal to the sectional area of DC grounding conductor. The minimum wire
diameter is 10.0mm.
DC Grounding
Select the DC Grounding mode according to the local standard and use the PV
grounding terminal box and DC Grounding wires of the same specification.
Grounding Device
If the positive pole or the negative pole of PV array need to be grounded in the PV
system, the inverter output should be insulated by Isolation Transformer. Isolation
transformer must conform to IEC62109-1,-2 standard.
Connection as below:
P I N
assignment for inverter scapable of both charging and discharging
1
DRM5
2
DRM6
3
DRM7
4
DRM8
5
RefGen
6
COM/DRM0
7
/
8
/

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt SPH3000 and is the answer not in the manual?

Growatt SPH3000 Specifications

General IconGeneral
ModelSPH3000
CategoryInverter
Rated Power3000 W
Max. DC Voltage550 V
MPPT Voltage Range120 V - 500 V
AC Output Voltage230 V
Frequency50/60Hz
Dimensions505 x 453 x 198 mm
Weight26 kg
Start Voltage150 V
Nominal DC Voltage360 V
Number of MPP Trackers2
AC Nominal Power3000 W
Max. AC Apparent Power3000VA
AC Voltage Range180-280V
Power Factor0.8 leading to 0.8 lagging
THDi<3%
AC Connection TypeSingle Phase
Max. Charging Current50A
Max. Discharging Current50A
Max. DC Power for Charging/Discharging3000W
Protection DegreeIP65
Cooling MethodNatural Convection
Max. Output Power3000 W
Max. Efficiency97.5%
THD<3%
Battery Voltage Range40-60V
CommunicationWiFi
Operating Temperature Range-25 ~ +60 °C
