6.4 Display and button

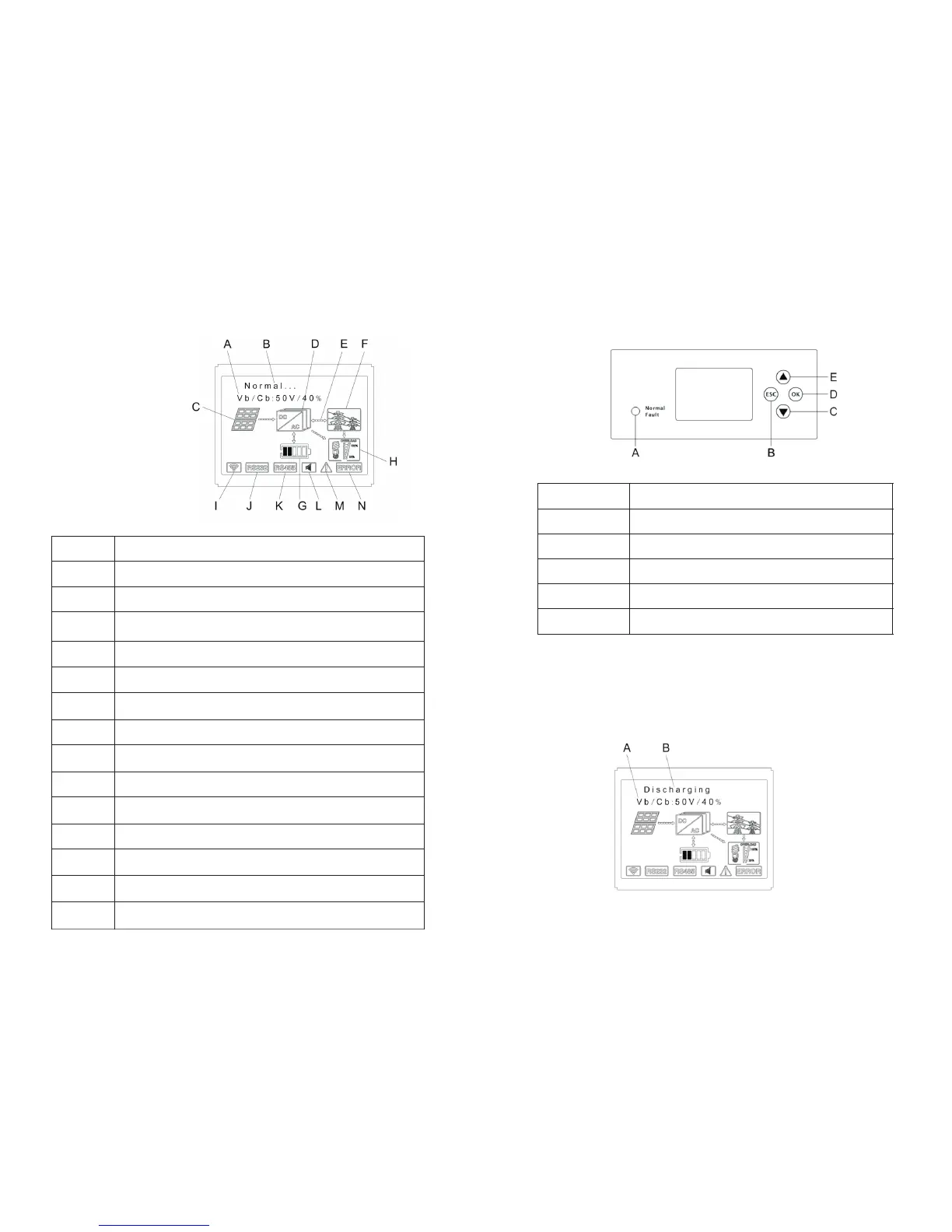

6.4.1 LCD display area
Chart 6.2
location
Description
A
information
B
state
C
D
SPH inverter
E
Power flow line
F
Grid
G
H
Local load
I
Wireless communication
J
Rs232
K
Rs485
L
Buzzer(Reserved)
M
warning
N
fault
PV input (if you connect two tracks, it will show two.
Otherwise show one)
Battery (show the SOC in five grid, Every grid represents 20%)
6.4.2 LED and button instruction
Chart 6.3
location
Status
ESC- button(cancel control)
Down-button
Enter-button
UP-button
A
B
C
D
E
description
Notice：LED showing status of SPH, it has two color, one is green and another is red. Please
turn to 3.1 and read the detail of LED.
6.4.3 LCD display column
LCD display column is used to show the current state, basic information and fault information.
Also include language setting, program charging/discharging priority and system time. On
default condition will take turns to display the information.
Chart 6.4
