Growatt SPH3000 User Manual

43
44

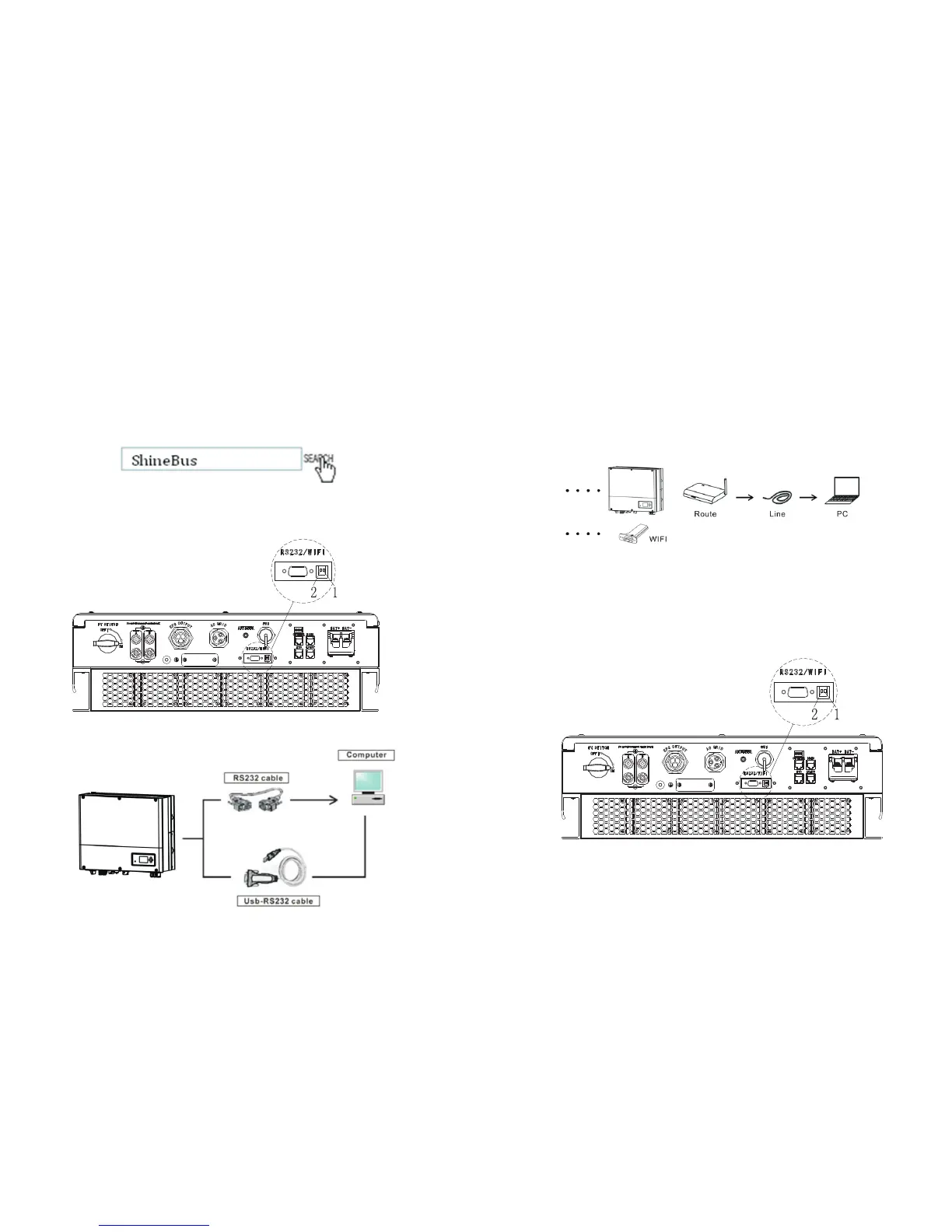

6.5.2 Use of RS232 port
RS232 port is mainly used for monitoring connection with PC, users can monitor ,set
parameters and update the software of the machine through RS232 connection with
machine and PC, using the shinebus software developed by Growatt.
About ShineBus software, when you needed, please download from official website
of Growatt.
About ShineBus software, when you needed, please download from official website
of Growatt.
Chart 6.13
Before use RS232 communication, you should make sure the follow PIN1 and PIN2
are OFF:
Chart 6.14
The wiring diagram is as follows:
Chart 6.15
6.5.3 The SPH's monitoring
The SPH provide RS232 interface. Users can through the following communication
solution to monitor the SPH.
NOTE: this kind of monitoring, Can only be used by the monitor of Growatt's Shine
server software provided by the company.
Through RS232 interface connect to WIFI/3G, use computer terminal for data
monitoring.
Chart 6.16
Before use WIFI communication, you should make sure the follow PIN1 and PIN2
are ON:
Chart 6.17
