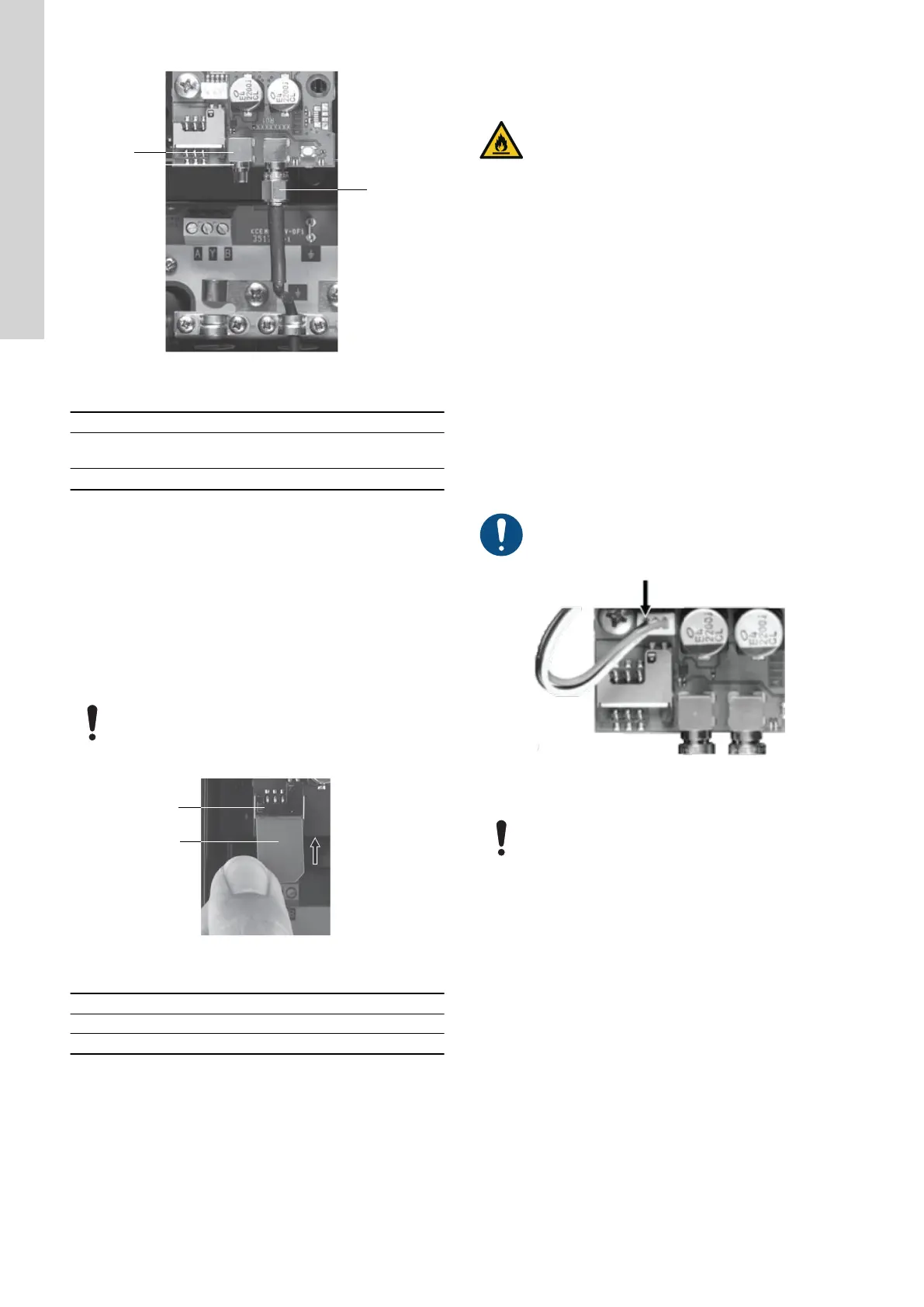

TM084024
Fitting an external cellular antenna
Pos. Description
1
Primary SMA connection for the cellular antenna.
This antenna must always be connected
2
Secondary SMA connection for the cellular antenna
3)
.
3)
Use this antenna connection only if required by the telecom company.
6.1.2
Inserting the SIM card
Before inserting the SIM card into CIM 260, remove the PIN code,
or set the PIN code to "4321".
Procedure
1. Insert the SIM card into a mobile phone.
2. Remove the PIN code from the SIM card, or set the PIN code to
"4321". See the manual of the mobile phone.
3. Insert the SIM card into CIM 260.
The slanted edge of the SIM card must point downwards,
away from the connector.
The connectors on the SIM card must face inwards
towards CIM 260.
TM084025
Inserting the SIM card
Pos. Description
1 SIM card holder
2 SIM card
6.1.3 Connecting the battery and power supply
WARNING
Flammable material
Death or serious personal injury
‐ The safety precautions listed below must be observed
carefully as improper handling of the lithium-ion
battery may result in injury or damage from electrolyte
leakage, heating ignition or explosion.
• Only insert the approved Grundfos battery pack (order no.
99499908).
• Never use this battery pack in other battery chargers.
• Do not dismantle or modify the battery.
• Do not heat or incinerate the battery.
• Do not pierce, crush or cause mechanical damage to the
battery.
• Do not short-circuit the battery.
• Do not allow the battery to get wet or be immersed in water.
• Do not strike or throw the battery.
• For long periods of storage, the temperature must be below 35
°C.
You can fit CIM 260 with a lithium-ion battery (order no. 99499908),
which will ensure sustained cellular connection with the product in
which it is mounted, even if the power is switched off. The battery is
secured by a velcro strap which absorbs vibrations and simplifies
replacement.
If a battery is not connected, the user will not receive any
information in case of a power cut.
TM080060
Connecting the battery
You can only charge the battery if the battery temperature
is within 0 to 45 °C.
Switch on the power supply. CIM 260 is powered either by the
Grundfos product or by the battery.
LED1 flashes yellow, searching for a cellular network. When the
connection to the cellular network has been established, LED1
pulsates yellow, the cellular network is active.
LED2 is permanently green, indicating that you have fitted CIM 260
correctly in the Grundfos product.
6.1.4
Configuration
For software configuration of CIM 260, which includes setting of
SMS functions and SCADA communication parameters, see "CIM
260 SMS commands", which you can download from Grundfos
Product Center.
