Grundfos CME Installation And Operating Instrictions

25
English (US)
10.6 Grundfos GO Remote
The motor is designed for wireless radio or infrared
communication with Grundfos GO Remote.
Grundfos GO Remote enables setting of functions and gives
access to status overviews, technical product information and
actual operating parameters.
Grundfos GO Remote offers three different mobile interfaces
(MI). See fig. 36.

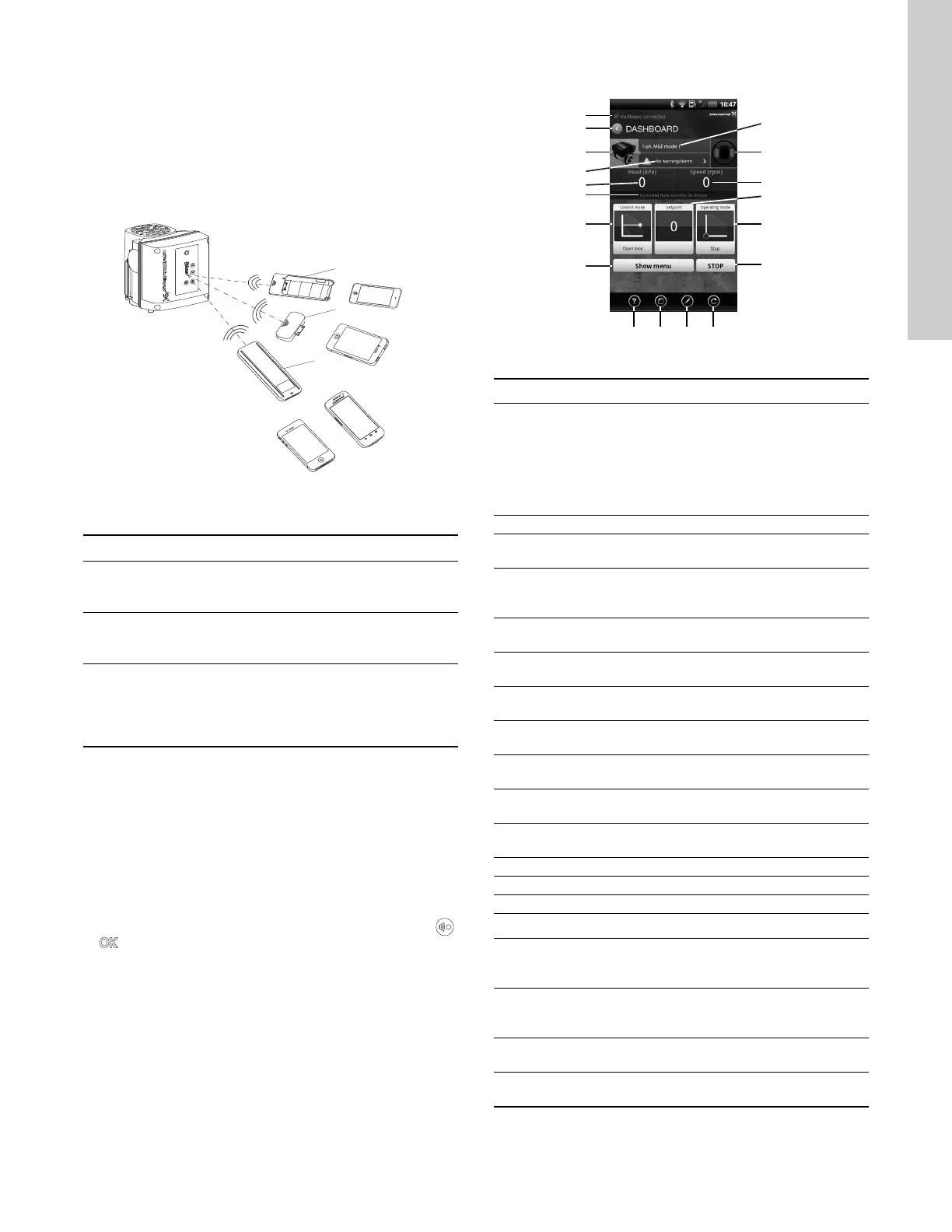

Fig. 36 Grundfos GO Remote communicating with the motor
via radio or infrared light
10.6.1 Communication
When Grundfos GO Remote communicates with the pump, the
indicator light in the middle of the Grundfos Eye will flash green.
Communication must be established using one of these
communication types:
• radio communication
• infrared communication.
Radio communication
Radio communication can take place at distances up to 30
meters. It is necessary to enable communication by pressing
or on the pump control panel.
Infrared communication
When communicating via infrared light, Grundfos GO Remote
must be pointed at the pump control panel.
10.6.2 Navigation
Navigation can be done from the dashboard. See fig. 37.
Dashboard
Fig. 37 Example of dashboard
TM05 5383 3612
Pos. Description
1
Grundfos MI 201:
Consists of an Apple iPod touch 4G and a Grundfos
cover.
2
Grundfos MI 202:
Add-on module which can be used in conjunction
with Apple iPod touch 4, iPhone 4G or later.
3
Grundfos MI 301:
Separate module enabling radio or infrared
communication. The module can be used in
conjunction with an Android or iOS-based
Smartphone with Bluetooth connection.
+
1
2
3
+
+
TM05 5609 3912
Pos. Description Action
1
Connection
indicator
This text appears when Grundfos
GO Remote app has connected
to an MI 201, MI 202 or MI 301.
If the hardware is not connected,
it will not be possible to
communicate with a Grundfos
product.
2 Back button Returns to the previous display.
3
Product
information
Provides technical information
about the product.
4 Product name
Name of the product
communicating with Grundfos GO
Remote.
5
Alarms and
warnings
Shows alarms and warnings.
6 Grundfos Eye
Shows the operating condition of
the product.
7
Primary status
value
Shows the primary status value.
8
Secondary status
value
Shows the secondary status
value.
9 Control source
Shows by which interface the
product is controlled.
10 Control mode
Shows the control mode of the
product.
11
Actual setpoint
value
Shows the actual setpoint value.
12 Operating mode Shows the operating mode.
13 Show menu Gives access to other menus.
14 Stop Stops the product.
Tool bar
15 Help
The help function describes the
menus making it easy for the user
to change settings, etc.
16 Documentation
Gives access to installation and
operating instructions and quick
guides.
17 Report
Enables the creation of user-
defined reports.
18 Update
Enables update of Grundfos GO
Remote app.
1
2
3
5
7
9
10
13
15 16 17 18
14
12
11
8
6
4

Grundfos CME Specifications

General

Liquid temperature range	0 °C to +60 °C
Maximum operating pressure	10 bar
Series	CME
Frequency	50/60 Hz
Max Pressure	10 bar
Pump Type	Centrifugal
Material	Stainless steel
Applications	pressure boosting, irrigation
Pumped liquid	Clean water
Approvals	CE
Max Liquid Temperature	60°C
Power Supply	1-phase or 3-phase
