Grundfos CRE User Manual

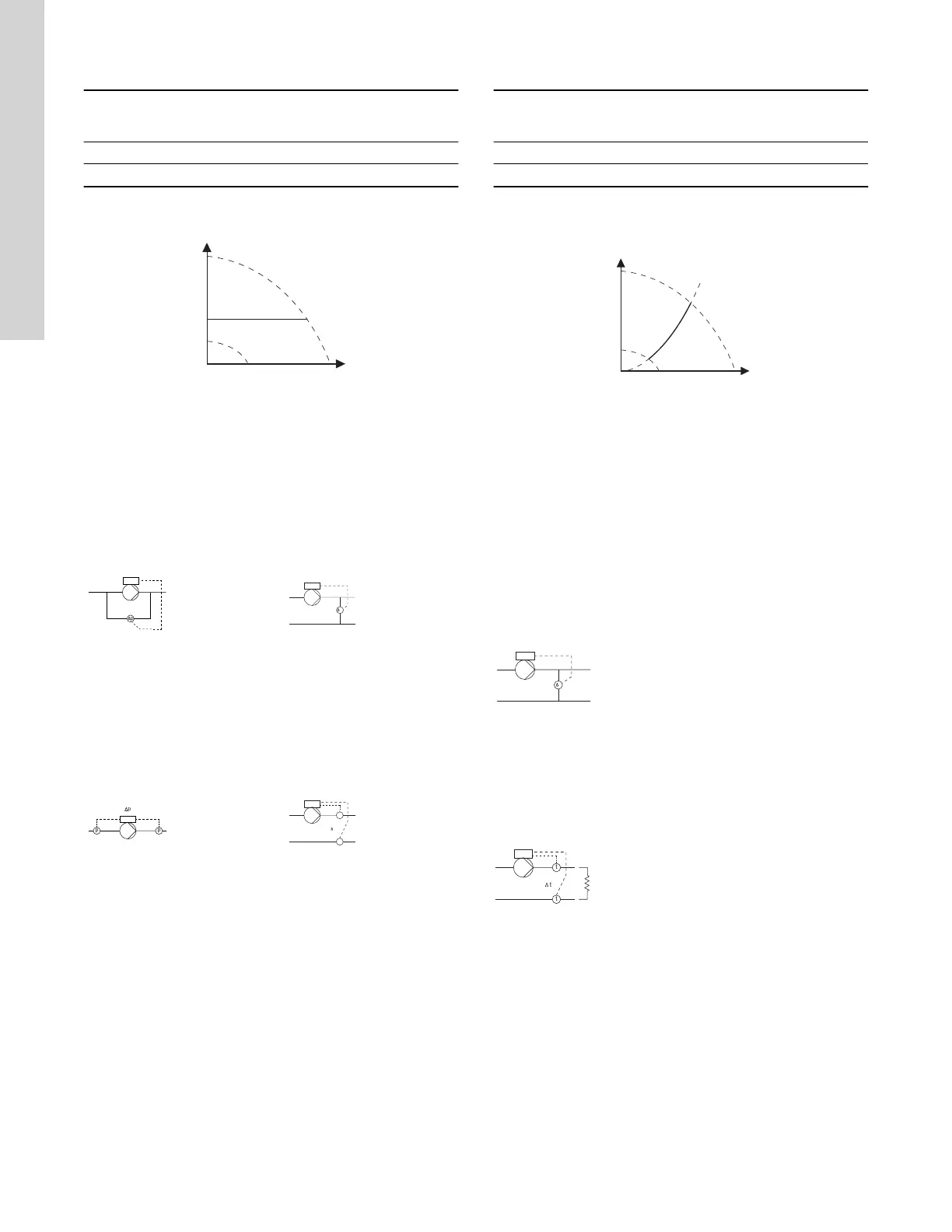

8.4.3 "Constant differential pressure"
Pump variant
"Constant
differential
pressure"
CME ●
CRE, CRIE, CRNE, CRKE, SPKE, MTRE ●
The pump maintains a constant differential pressure, independently
of the flow in the system. See the figure below.
H
Q
TM057901
"Constant differential pressure"
This control mode requires either a differential-pressure sensor or
two external pressure sensors. See the examples below:
Examples
• One differential-pressure sensor.
The pump uses the input from the sensor to control the
differential pressure.
You can set the sensor manually or by using the "Assist" menu.
See the section on assisted pump setup.
p
p
• Two pressure sensors.
Constant differential-pressure control is achievable with two
pressure sensors. The pump uses the inputs from the two
sensors and calculates the differential pressure.
Both sensors must have the same unit and must be set as
feedback sensors. You can set the sensors manually, sensor by
sensor, or by using the "Assist" menu. See the section on
assisted pump setup.
p
p
p
p
p
p
"Constant differential pressure"
"Controller settings"
For recommended controller settings, see the section on controller
settings.
Factory setting
See the section on factory settings.
Related information
8.11 "Controller" ("Controller settings")
8.41 "Assisted pump setup"
9.2 Factory settings
8.4.4
"Constant differential temperature"
Pump variant
"Constant
differential
temperature"
CME ●
CRE, CRIE, CRNE, CRKE, SPKE, MTRE ●
The pump maintains a constant differential temperature in the
system and the pump performance is controlled according to this.
See the figure below.
H
Q
△t
TM057954
"Constant differential temperature"
This control mode requires either two temperature sensors or one
differential-temperature sensor. See the examples below. The
temperature sensors can either be analog sensors connected to
two of the analog inputs or two Pt100/Pt1000 sensors connected to
the Pt100/1000 inputs, if these are available on the specific pump.
Set the sensor in the "Assist" menu under "Assisted pump setup".
See the section on assisted pump setup.
Examples
• One differential-temperature sensor.
The pump uses the input from the sensor to control the
differential temperature.
You can set the sensor manually or by using the "Assist" menu.
See the section on assisted pump setup.
t
• Two temperature sensors.
Constant differential-temperature control is achievable with two
temperature sensors. The pump uses the input from the two
sensors and calculates the differential temperature.
Both sensors must have the same unit and must be set as
feedback sensors. You can do this manually, sensor by sensor,
or by using the "Assist" menu. See the section on assisted
pump setup.
t
t
t
Constant differential temperature
"Controller settings"
For recommended controller settings, see the section on controller
settings.
Factory setting
See the section on factory settings.
Related information
8.11 "Controller" ("Controller settings")
8.41 "Assisted pump setup"
9.2 Factory settings
36
English (US)

Grundfos CRE Specifications

General

Protection Class	IP55
Material	Stainless Steel
Applications	Water supply, pressure boosting, irrigation
Impeller Material	Stainless Steel
Pump Housing Material	Stainless Steel
Connection Size	DN32 to DN200 (depending on model)
Power Supply	3-phase
Control	Integrated frequency converter
