3.2 Identification
3.2.1 Nameplate
The information on the pump nameplate is described below.
Ver-PN-SN
p
DK-8850 Bjerringbro, Denmark
Hz
RPM
GPM
%
PEI
P code:
PEI
VL
CL
Imp.Dia.
(in)
H /Hmax
pmax / tma x
hp
[P2]
1 2 3
4 5
6
7
8
9
10
11
12 13
14
15 16
17
18
21
19
20
Model
excl.motor
lb
ft.
PSI / ˚F
η
=
TM075722

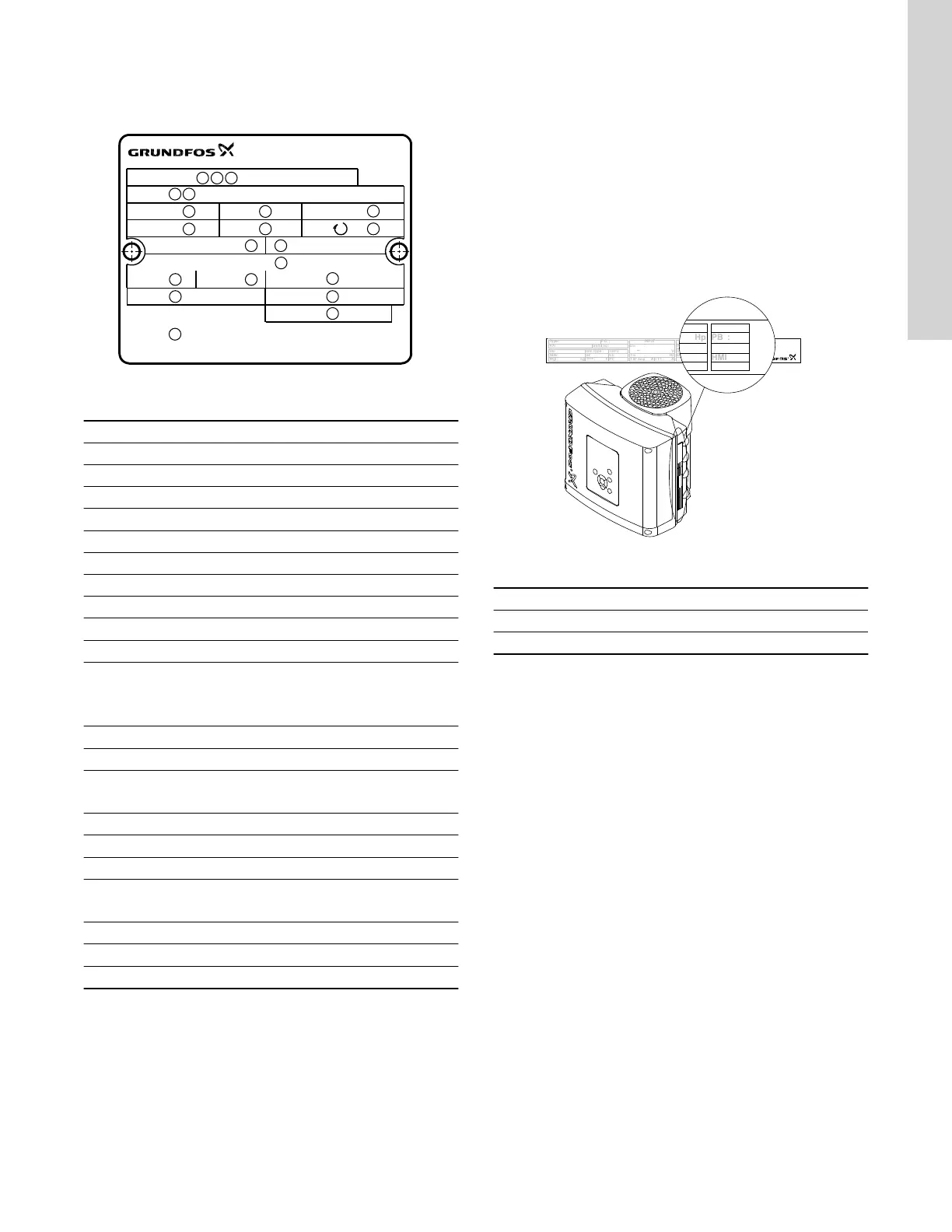

Example of a nameplate
Pos. Description
1 Version
2 Product number
3 Serial number
4 Model
5 Type designation
6 Frequency
7 Rated speed
8 Weight excluding motor
9 Motor-rated power output
10 Rated flow rate
11 Direction of rotation
CCW: Counterclockwise
CW: Clockwise
12 Head at rated flow rate / Maximum head
13 Hydraulic efficiency at rated flow rate
14 Maximum system pressure / Maximum liquid temperature.
Note that this field may have two sets of data.
15 Pump Energy Index, constant load
16 Pump Energy Index, variable load
17 Impeller diameter
18 External reference
(Other Equipment Manufacturer number)
19 Production code
20 Country of origin
21 Approval marks
3.2.2 Identification of functional module
You can identify the fitted module in one of the following ways:
Grundfos GO Remote
You can identify the functional module in the "Fitted modules" menu
under "Status".
Pump display
For pumps fitted with the advanced operating panel, you can
identify the functional module in the "Module type" menu under
"Status".
Motor nameplate
You can identify the fitted module on the motor nameplate. See the
figure below.
Env.Type :
Serial no :
SF CL:
PF:
PB
FM
HMIEff
n max:
CIMWgt
:
DE
:
kg
NDE
:
T
amb
:
:
F AA
V
~
P.C.
:
Made in Hungary
OUTPUT
VARIANT
INPUT
TEFC
Type
:
P.N.
:
U
in
:
I
1/1
:
f
in
Hp
Hz
P2
I SF Amp:
rpm
: : :
:
:
:
:
Xxxxxxxxxxx
E.P. Motor
DK - 8850 Bjerringbro, Denmark
PB
FM
HMI
CIM
VARIANT
Hp
rpm
:
:
:
:
TM061889
Identification of functional module
Variant Description
FM 200 Standard functional module
FM 300 Advanced functional module
7
