11. Setting by means of the control panel
11.1 Control panel
The control panel is used for local setting of the CUE.
The functions available depend on the pump family connected to
the CUE.

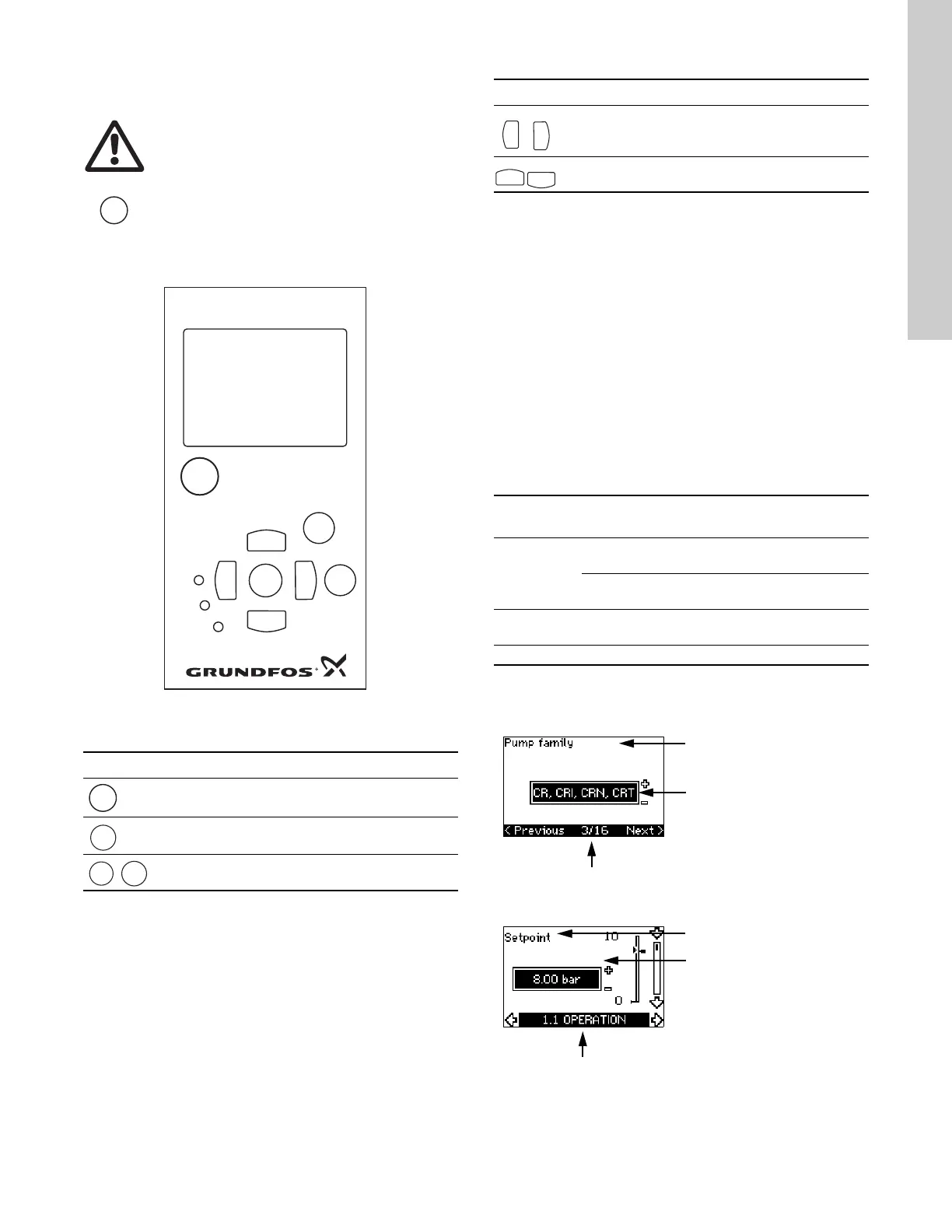

Fig. 46 Control panel of the CUE
Editing buttons
Navigating buttons
The editing buttons of the control panel can be set to these
values:
•Active
• Not active.
When set to "Not active" (locked), the editing buttons do not
function. It is only possible to navigate in the menus and read
values.
Activate or deactivate the buttons by pressing the arrow up and
arrow down buttons simultaneously for 3 seconds.
Adjusting the display contrast
Press [OK] and [+] for darker display.
Press [OK] and [-] for brighter display.
Indicator lights
The operating condition of the pump is indicated by the indicator
lights on the front of the control panel. See fig. 46.
The table shows the function of the indicator lights.
Displays, general terms
Figures 47 and 48 show the general terms of the display.
Fig. 47 Example of display in the start-up guide
Fig. 48 Example of display in the user menu
Warning
The on/off button on the control panel does not
disconnect the CUE from the power supply and
must therefore not be used as a safety switch.
The on/off button has the highest priority. In "off"
condition, pump operation is not possible.
TM03 8719 2507
Button Function
Makes the pump ready for operation/starts and
stops the pump.
Saves changed values, resets alarms and expands
the value field.
Changes values in the value field.
On/On/
Off
+
-
CUCUE
>
>
>
>
OK
On/On/
Off
OnOn
Off
Alarm
Alarm
On/On/
Off
OK
+
-
Button Function
Navigates from one menu to another. When the
menu is changed, the display shown will always be
the top display of the new menu.
Navigates up and down in the individual menu.
Indicator
light
Function
On (green)
The pump is running or has been stopped by a
stop function.
If flashing, the pump has been stopped by the
user (CUE menu), external start/stop or bus.
Off (orange)
The pump has been stopped with the on/off
button.
Alarm (red) Indicates an alarm or a warning.
>
>
>
>
Display name
Current display / total number
Value field
Display name
Display number, menu name
Value field
