17.2 Main dimensions and weights
1)
The dimensions are maximum height, width and depth. Dimensions are without options.
17.3 Surroundings
TM03 9000 2807 TM03 9002 2807

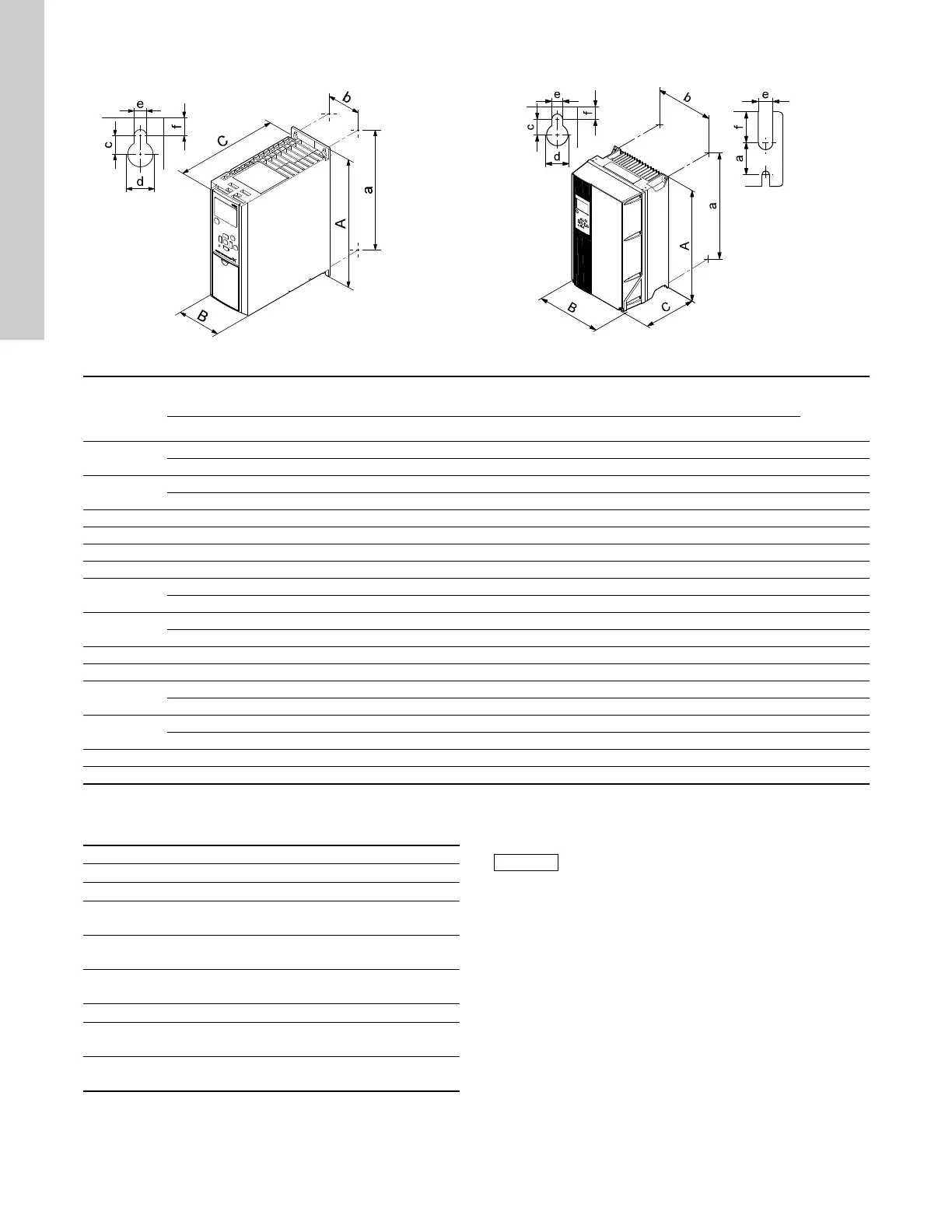

Fig. 58 Enclosures A2 and A3 Fig. 59 Enclosures A4, A5, B1, B2, B3, B4, C1, C2, C3 and C4
B4, C3, C4
Enclosure
Height
[in.
1)
(mm
1)
)]
Width
[in.
1)
(mm
1)
)]
Depth
[in. (mm)
1)
]
Screw holes
[in. (mm)]
Weight
[lbs. (kg)]
AaBbCC
2)
cØdØef
A2 10.5 (268) 10.1 (257) 3.5 (90) 2.7 (70) 8.0 (205) 8.6 (219) 0.31 (8) 0.43 (11) 0.21 (5.5) 0.35 (9) 10.8 (4.9)
IP21/NEMA1 14.7 (375) 13.7 (350) 3.5 (90) 2.7 (70) 8.0 (205) 8.6 (219) 0.31 (8) 0.43 (11) 0.21 (5.5) 0.35 (9) 11.6 (5.3)
A3 10.5 (268) 10.1 (257) 5.1 (130) 4.3 (110) 8.0 (205) 8.6 (219) 0.31 (8) 0.43 (11) 0.21 (5.5) 0.35 (9) 14.5 (6.6)
IP21/NEMA1 14.7 (375) 13.7 (350) 5.1 (130) 4.3 (110) 8.0 (205) 8.6 (219) 0.31 (8) 0.43 (11) 0.21 (5.5) 0.35 (9) 15.4 (7)
A4 16.5 (420) 15.7 (401) 7.9 (200) 6.7 (171) 6.9 (175) 6.9 (175) 0.32 (8.2) 0.47 (12) 0.26 (6.5) 0.35 (6) 20.2 (9.2)
A5 16.5 (420) 15.8 (402) 9.5 (242) 8.4 (215) 7.8 (200) 7.8 (200) 0.32 (8.2) 0.47 (12) 0.25 (6.5) 0.35 (9) 30.8 (14)
B1 18.8 (480) 17.8 (454) 9.5 (242) 8.2 (210) 10.2 (260) 10.2 (260) 0.47 (12) 0.74 (19) 0.35 (9) 0.35 (9) 50.7 (23)
B2 25.5 (650) 24.5 (624) 9.5 (242) 8.2 (210) 10.2 (260) 10.2 (260) 0.47 (12) 0.74 (19) 0.35 (9) 0.35 (9) 59.5 (27)
B3 15.7 (399) 14.9 (380) 6.5 (165) 5.5 (140) 9.7 (248) 10.3 (262) 0.31 (8) 0.47 (12) 0.26 (6.8) 0.31 (7.9) 26.4 (12)
IP21/NEMA1 18.7 (475) - 6.5 (165) - 9.8 (249) 10.3 (262) 0.31 (8) 0.47 (12) 0.26 (6.8) 0.31 (7.9) -
B4 20.4 (520) 19.4 (495) 9.09 (231) 7.8 (200) 9.5 (242) 9.5 (242) - - 0.33 (8.5) 0.59 (15) 51.8 (23.5)
IP21/NEMA1 26.3 (670) - 10.0 (255) - 9.6 (246) 9.6 (246) - - 0.33 (8.5) 0.59 (15) -
C1 26.7 (680) 25.5 (648) 12.1 (308) 10.7 (272) 12.2 (310) 12.2 (310) 0.47 (12) 0.74 (19) 0.35 (9) 0.38 (9.8) 99.2 (45)
C2 30.3 (770) 29.0 (739) 14.5 (370) 13.1 (334) 13.2 (335) 13.2 (335) 0.47 (12) 0.74 (19) 0.35 (9) 0.38 (9.8) 143.3 (65)
C3 21.6 (550) 20.5 (521) 12.1 (308) 10.6 (270) 13.1 (333) 13.1 (333) - - 0.33 (8.5) 0.66 (17) 77.1 (35)
IP21/NEMA1 29.7 (755) - 12.9 (329) - 13.3 (337) 13.3 (337) - - 0.33 (8.5) 0.66 (17) -
C4 25.9 (660) 24.8 (631) 14.5 (370) 12.9 (330) 13.1 (333) 13.1 (333) - - 0.33 (8.5) 0.66 (17) 110.2 (50)
IP21/NEMA1 37.4 (950) - 15.3 (391) - 13.3 (337) 13.3 (337) - - 0.33 (8.5) 0.66 (17) -
D1 47.5 (1209) 45.4 (1154) 16.5 (420) 11.9 (304) 15.0 (380) - 0.78 (20) 0.43 (11) 0.43 (11) 0.98 (25) 229.2 (104)
D2 62.5 (1589) 60.4 (1535) 16.5 (420) 11.9 (304) 15.0 (380) - 0.78 (20) 0.43 (11) 0.43 (11) 0.98 (25) 332.8 (151)
Relative humidity 5-95 % RH
Ambient temperature Max. 122 °F (50 °C)
Average ambient temperature over 24 hrs. Max. 113 °F (45 °C)
Minimum ambient temperature at full
operation
32 °F (0 °C)
Minimum ambient temperature at reduced
operation
14 °F (-10 °C)
Temperature during storage and
transportation
-13 to 149 °F
(-25 to 65 °C)
Storage duration Max. 6 months
Maximum altitude above sea level without
performance reduction
3280 ft. (1000 m)
Maximum altitude above sea level with
performance reduction
9840 ft. (3000 m)
Note
Note
The CUE comes in a packaging which is not
suitable for outdoor storage.
