Grundfos DID User Manual

English (GB)
26
12.3 Weights
12.4 Dimensions

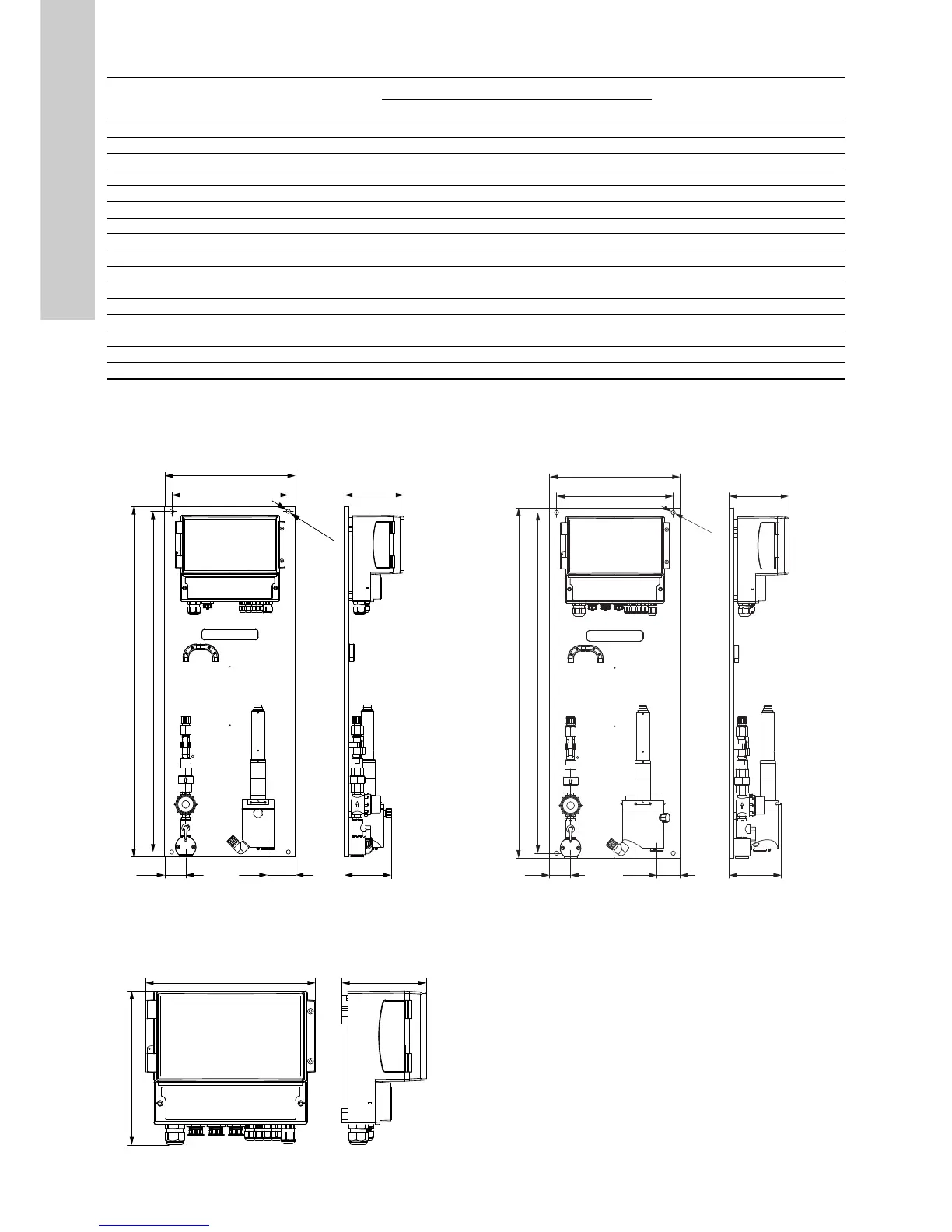

Within the figures below the needed dimensions for mounting the DID equipped with one sensor or up to three sensors are displayed.
Furthermore the exact position of the water inlet and outlet are marked. Finally the dimensions of the Control unit CU 382 are displayed.
Fig. 9 Dimensions of DID measurement and control system
with flow cell BF1, for one sensor (mm)
Fig. 10 Dimensions of DID measurement and control system
with flow cell BF3, for up to 3 sensor (mm)
Fig. 11 Dimensions of control unit CU 382 front and side (mm)
Description
Without packaging With packaging
Product number
[kg] [kg]
DID-1 BF1-FCL2 4.26 8.095 98915656
DID-1 BF1-CDI2 4.26 8.095 98915657
DID-1 BF1-PA2 4.26 8.095 98915658
DID-1 BF1-HP2 4.26 8.095 98915659
DID-3 BF3-FCL2/TCL2 4.72 8.775 98915660
DID-3 BF3-FCL2/PH 4.71 8.765 98915661
DID-3 BF3-FCL2/TCL2/PH 4.97 9.175 98915662
DID-3 BF3-FCL2/ORP 4.71 8.765 98915663
DID-3 BF3-FCL2/PH/ORP 4,96 9.165 98915664
DID-1 BF1-PH 4.25 8.085 98915665
DID-1 TI1-PH 2.075 5.875 98915666
DID-1 TI1-ORP 2.075 5.875 98915667
DID-3 TI2-ORP/PH 2.85 6.8 98915668
DID-3 BF3-ORP/PH 4.7 8.755 98915669
DID-1 BF1-CND 4.25 8.085 98915670
DID-1 TI1-CND 2.075 5.875 98915671
TM06 5852 0216
280
730 750
250
127.3
100
ø 9 4x
45
60
TM06 5853 0216
280
730 750
250
45 50.3
127.3
111.7
ø9 4x
TM06 5897 0216
117.3
213
235.6
