18
8.2.2 DMH 254, 255, 257

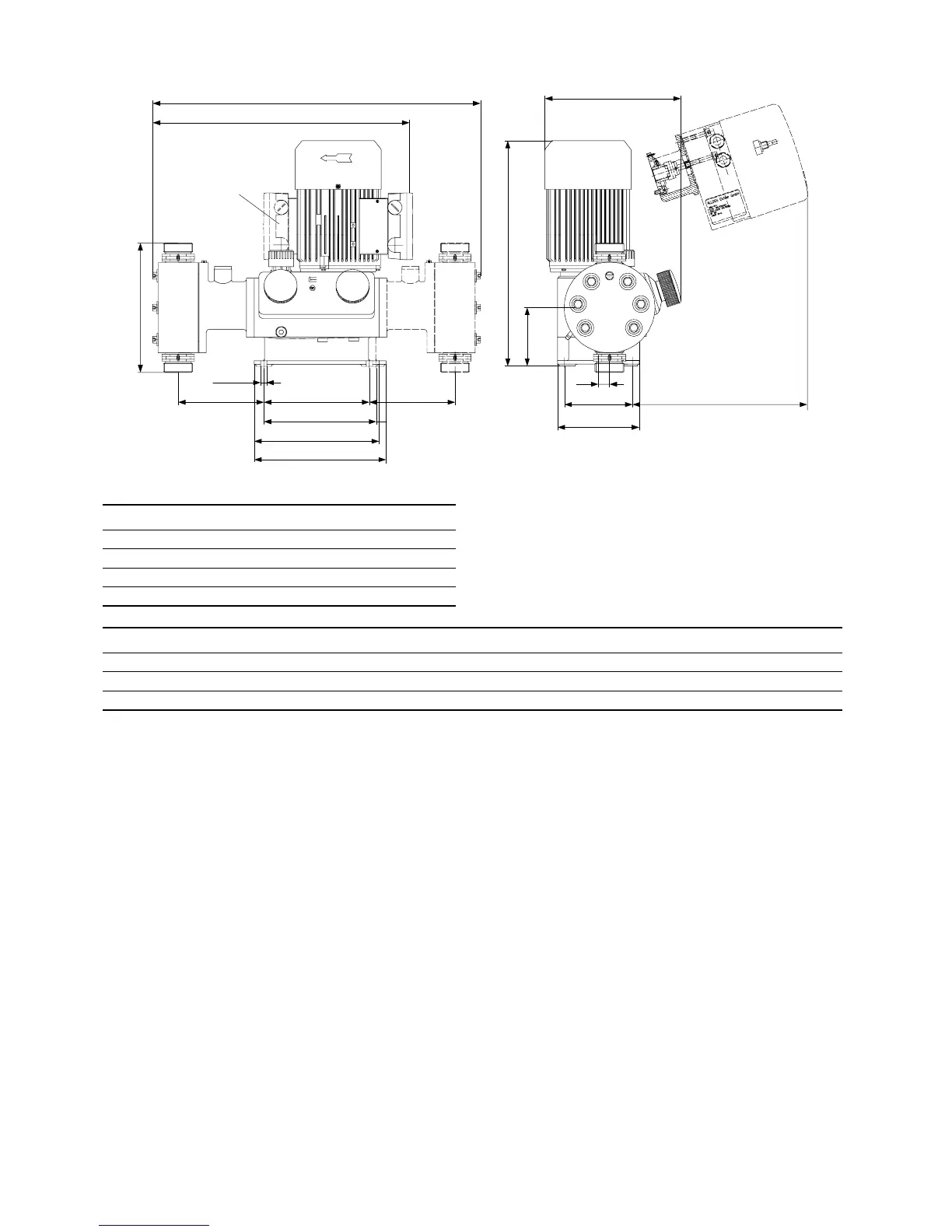

Fig. 9 DMH 254, 255, 257
Measurements in mm.
TM03 6455 4506
Z1
l / l'
d
b
g
j
c
n
k
f
fx
m
mx
h
a
e
k
9mm
Pos. Description
Z1 For double pump, motor turned by 180 °
fx, mx For double pumps
l For electrical stroke-length adjustment
l’ For pneumatic stroke-length adjustment
Pump type abcdeffxghj k ll’nmmx
DMH 254 436 492 156 252 207 185 260 126 718 10 185 235 413 180 225 300
DMH 255 510 492 156 254 228 185 260 126 869 10 253 235 413 180 225 300
DMH 257 589 553 170 274 280 241 333 129 980 25 262 245 420 195 290 382
