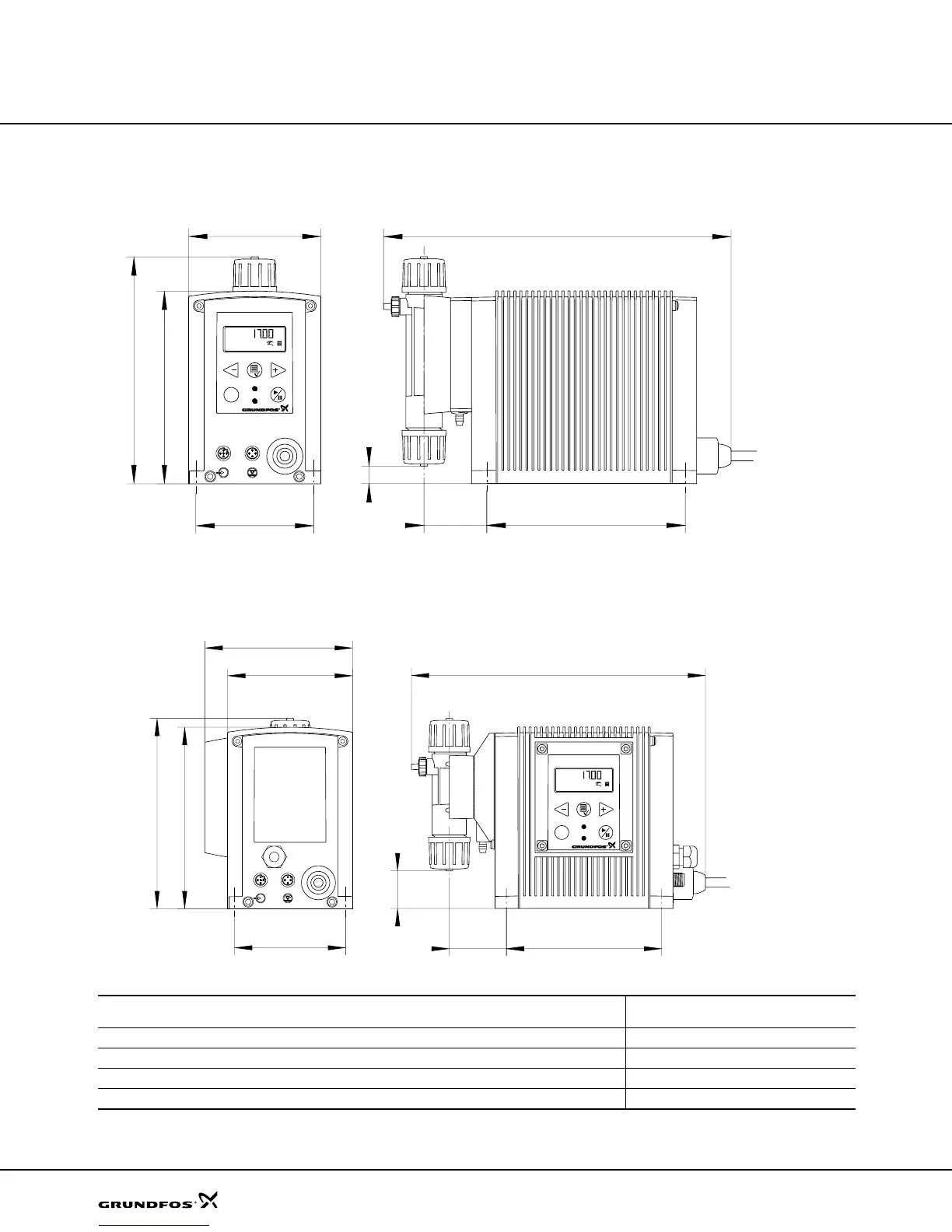

Dimensions
DME and DMS
Front-fitted control panel DME 2 to 48, DMS
Side-fitted control panel DME 2 to 48, DMS
Dimensions are in inches (mm)
TM03 0238 4604
TM03 0239 4604
C
6 5/16
4 3/8
B
A
3 7/8
D
1.97
ml/h
100%
B
A
6 5/16
5.12
4 3/8
3 7/8
C
D
1.97
ml/h
100%
Pump type
DME 2
DMS 2
DMS 4
DME 8
DMS 8
DME 12
DMS 12
DME 19 DME 48
A 5.4 (137) 7.56 (192)
B 9.4 (239) 11.57 (294)
C 1.4 (36) 0.59 (15)
D 6.6 (168) 7.40 (188)
