10

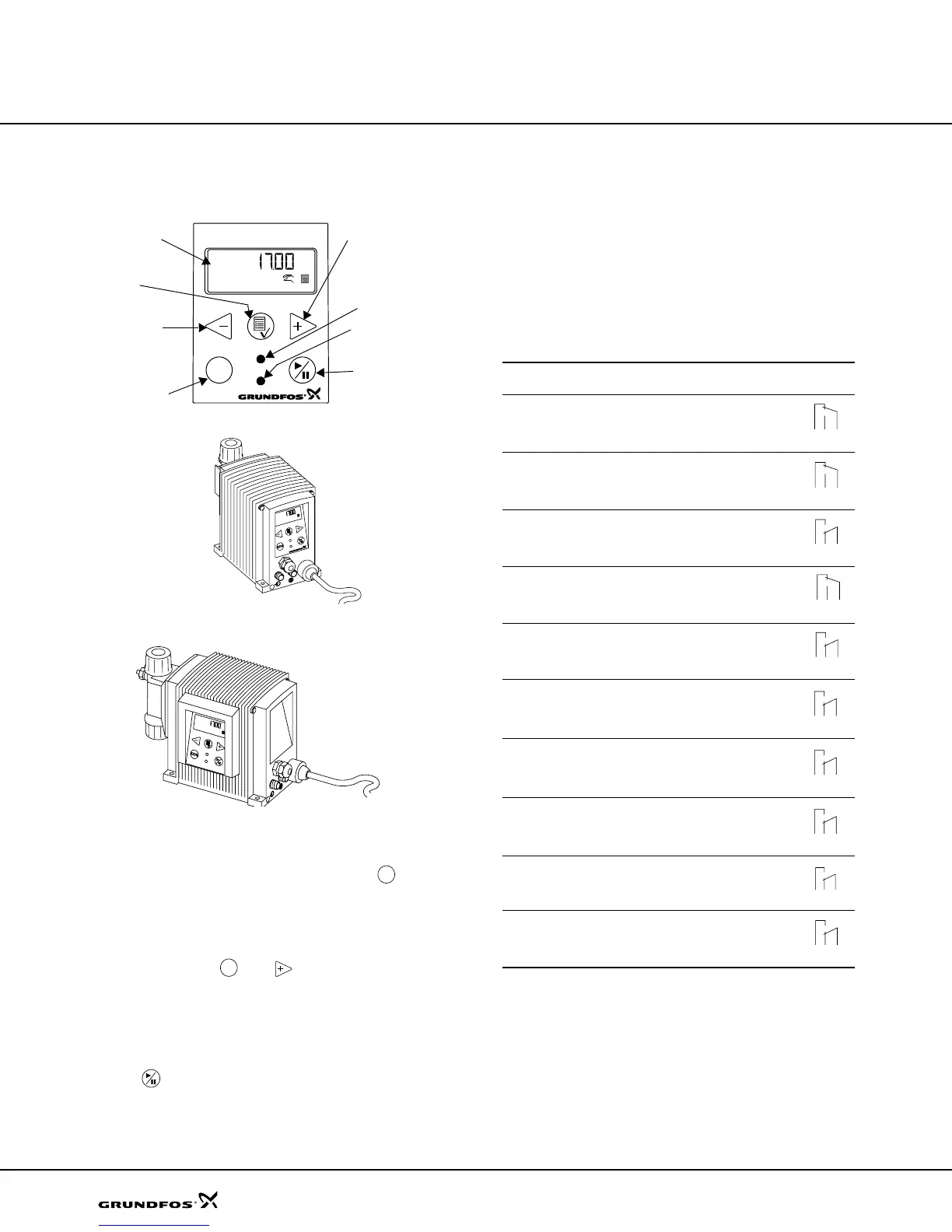

Control panel
Control panel fitted to the front.
Control panel fitted to the side (not DMS-B).
Priming button
The pump control panel incorporates a button.
Press this button if the maximum capacity is required
over a short period, e.g. during start-up. When the
button is released, the pump automatically returns to
the previous operating mode.
When the buttons and are pressed simultane-
ously, the pump can be set to run for a specific number
of seconds at maximum capacity. The remaining
numbers of seconds will appear in the display. This
feature is useful when flushing the pump. The
maximum value is 300 seconds.
Press to stop the pump before the set time has
passed.
Indicator lights and alarm output
(DME 2 to 48, DMS)
The green and red indicator lights on the pump indicate
operation or fault.
In control variant AR, the pump can activate an external
alarm signal by means of a built-in alarm relay. The
alarm signal is activated by means of an internal poten-
tial-free contact.
The functions of the indicator lights and the built-in
alarm relay appear from the table below.
TM01 8946 1202TM01 8941 0900TM01 8949 0900
ml/h
100%
LCD Display
Priming button
Navigation/
settings
Menu/
accept
Navigation/
settings
Green
indicator light
Red
indicator light
On/off button
settings
100%
100%
Condition
Green
LED
Red LED Display
Alarm
output
1
Pump running On Off
Normal
indication
Pump paused Flashing Off
Normal
indication
Pump fault Off On EEPROM
Supply failure Off Off Off
Pump running, low
chemical level
2
On On
Normal
indication
Empty tank
2
Off On
Normal
indication
Analog signal
< 2 mA
Off On
Normal
indication
The pump is not dosing
enough according to the
signal from the dosing
monitor
3
On On
Normal
indication
More pulses than capacity On On
Normal
indication
Overheated Off On
MAX
TEMP
1
Control variant AR, only.
2
Requires connection to level sensors.
3
Requires dosing monitor function activated and a dosing
monitor device connected to the pump.
132
NC NO C
132
NC NO C
1
23
NC NO C
132
NC NO C
1
23
NC NO C
1
23
NC NO C
1
23
NC NO C
1
23
NC NO C
1
23
NC NO C
1
23
NC NO C
Functions
DME and DMS
Dm123.book Page 10 Tuesday, February 8, 2005 8:24 AM
