29

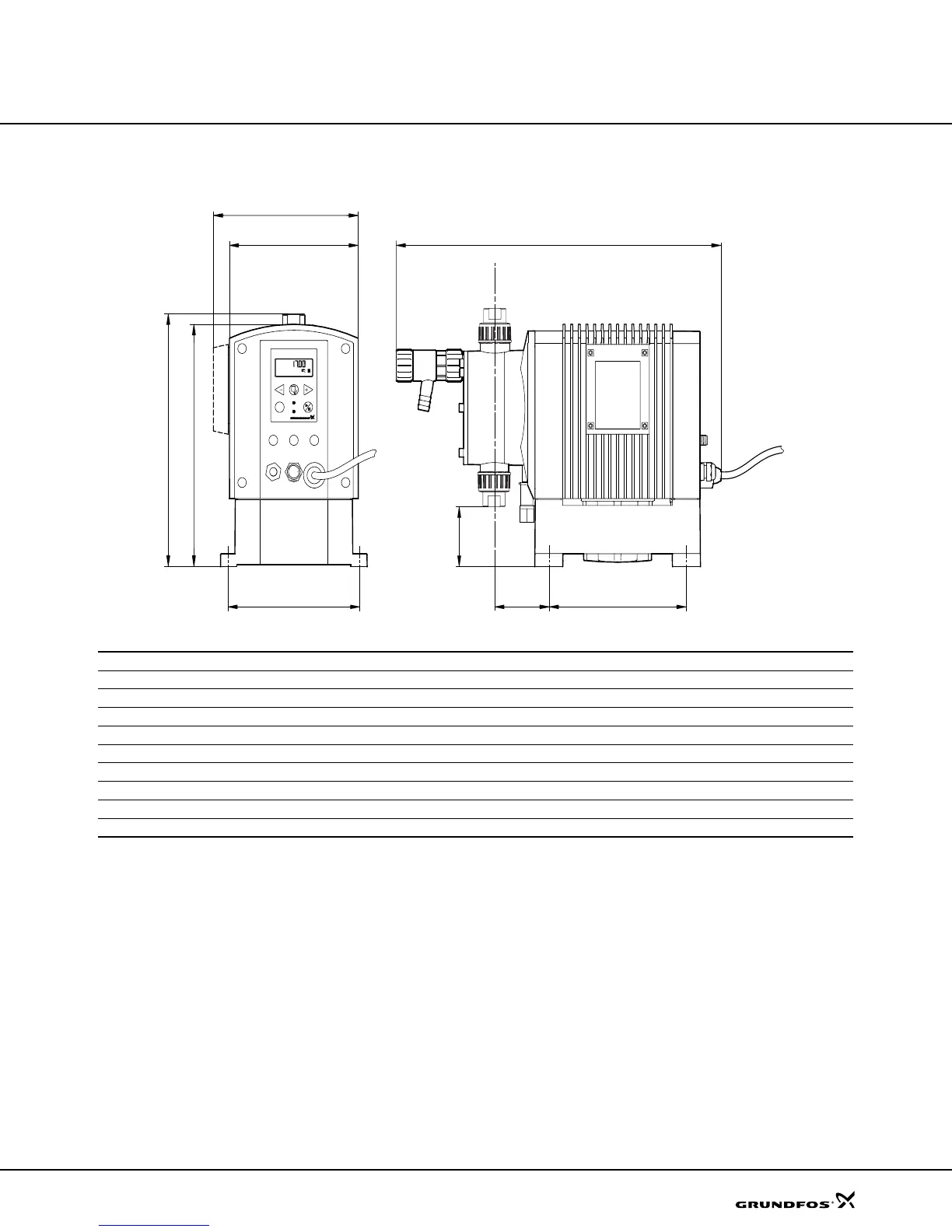

DME (60 to 940)
Dimensions are in inches (mm)
TM03 0589 0305
A
C
D
B
I
F
G
E
H
DME 60 DME 150 DME 375 DME 940
A 6.93 (176) 6.93 (176) 9.37 (238) 9.37 (238)
B 7.8 (198) 7.8 (198) 8.58 (218) 8.58 (218)
C 13.03 (331) 13.58 (345) 18.54 (471) 19.53 (496
D 11.18 (284) 11.18 (284) 14.33 (364) 14.33 (364)
E 7.09 (180) 7.09 (180) 9.06 (230) 9.06 (230)
F 17.48 (444) 17.48 (444) 21.26 (540) 21.22 (539)
G 1.61 (41) 1.10 (28) 1.22 (31) 0.24 (6)
H 2.91 (74) 2.91 (74) 3.74 (95) 3.74 (95)
I 7.36 (187) 7.36 (187) 9.69 (246) 9.69 (246)
Dimensions
DME and DMS
Dm123.book Page 29 Tuesday, February 8, 2005 8:24 AM
