Accessories

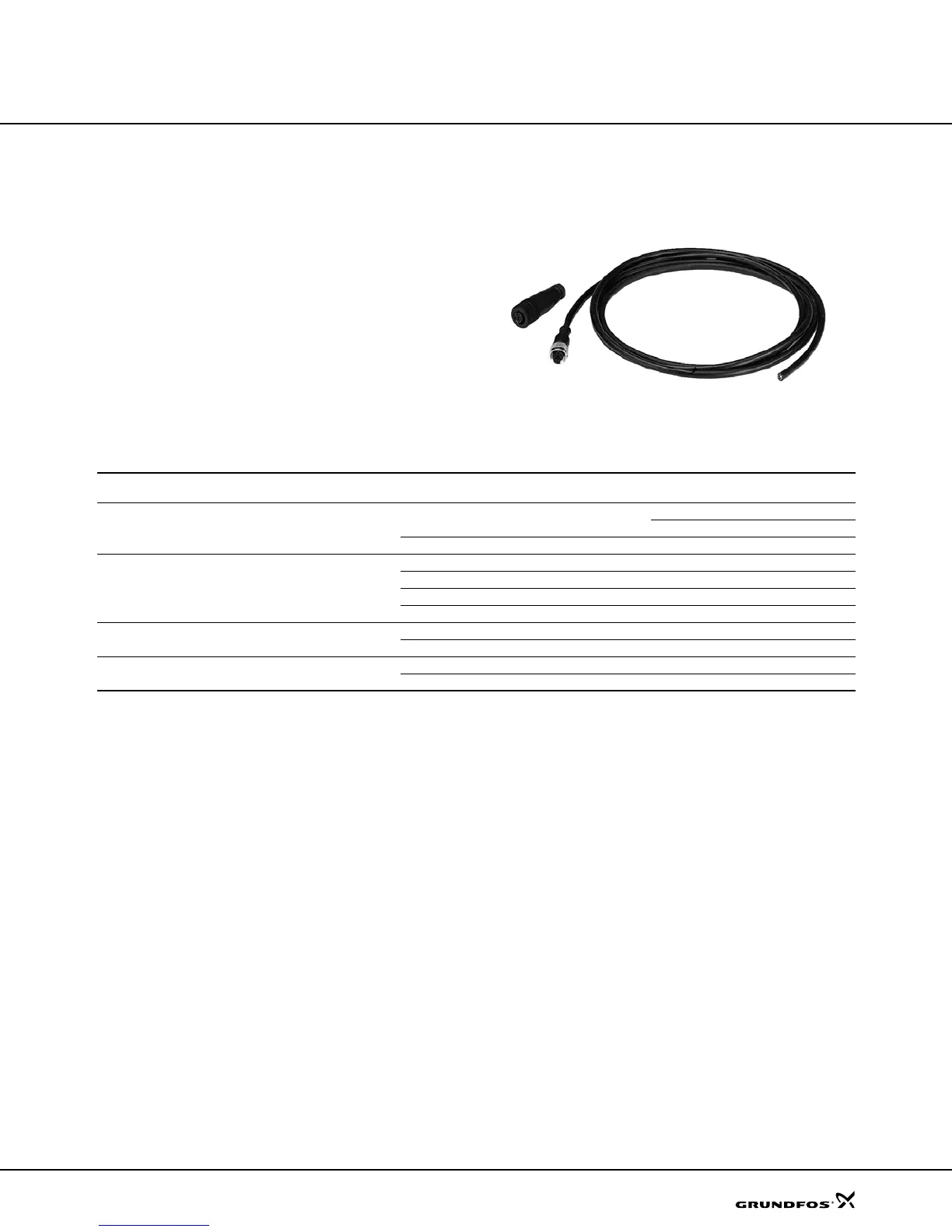

Cable and plug
Cable and plug
Cable and plug for connection of pump to external
control devices, such as process controllers, flow
meters, start/stop contacts, and level sensors.
Grundfos level control units are factory-fitted with cable
and plug connection for Grundfos dosing pumps.
The cables and plugs fit all dosing pumps, types DME
and DMS-A.
Cable material: PUR (0.34 mm
2
)
Plug type: M12.
TM01 8955 0900
Signal
Number of
poles
Type
Cable length
[ft]
Product number
Pulse, 0/4-20 mA, start/stop 5
Control cable with plug
6.5 96440447
16 96440448
Plug terminal without cable - 96440449
Dual-level or stop signal 4
Control cable with plug 6.5 96440450
Control cable with plug 16 96449451
Plug terminal without cable - 96440452
Extension cable 6.5 96483235
Stop dosing input and output* 5
Control cable with plug 6.5 96527109
Control cable with plug 16 96527111
Alarm Relay Cable*
3
Relay cable with plug 6.5 96534214
Relay cable with plug 16 96534215
*
)
Only DME 60 to 940
Note - DME 2 to 48 and DMS AR versions have alarm relay cable hard-wired to pump.
