Grundfos DMS D Series Product Guide

46
Accessories
Foot valve
Foot valve

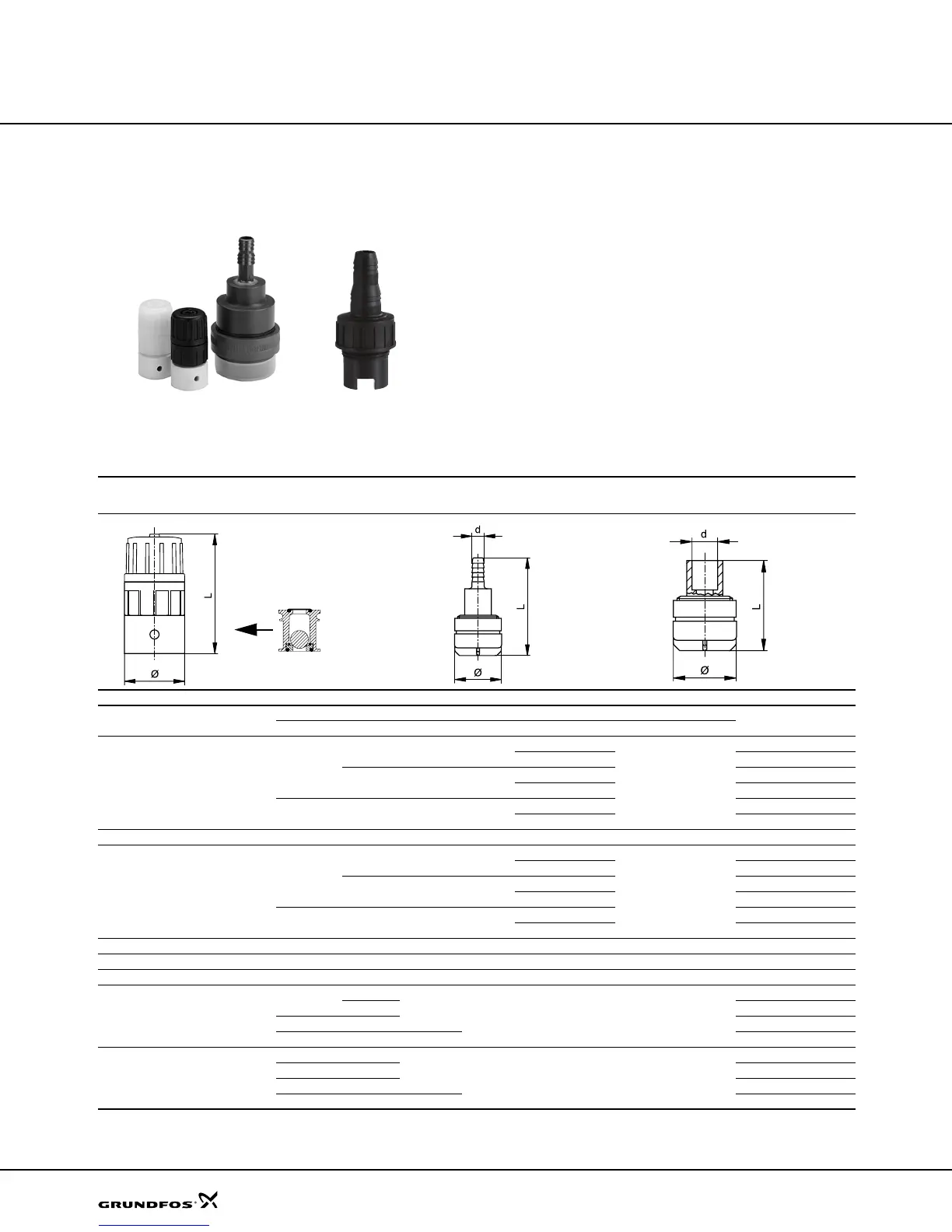

Foot valve complete with non-return valve, strainer and
tube or pipe connection.
Dimensions
TM01 9285 1600/GR8109
DN 4, DN 8 DN 6, DN 10, DN 15, DN 20, DN 25
Tubing/non-return valve Hose clamp Pipe cementing
TM01 9276 1600/TM02 6433 TM01 2201 1600 TM01 9277 1600
Non-return valve
Max flow rate
Size
Materials Connection Dimensions
Product Number
GPH (l/h) Housing Gasket Ball Type ID/OD or NPT ø (in) L (in)
4 (15) DN 4
PP
EPDM Ceramic Tubing
0.17" x 1/4"
1.4 2.8
96480503
1/4" x 3/8" 96479782
FKM Ceramic Tubing
0.17" x 1/4" 96480589
1/4" x 3/8" 96479784
PVDF FKM Ceramic Tubing
0.17" x 1/4" 96480589
1/4" x 3/8" 96479784
12.7 (48) DN 6 SS CSM SS NPT 1/4" 1.3 1.5 96479794
19 (72) DN 8
PP
EPDM Ceramic Tubing
1/4" x 3/8"
1.4 2.8
96480621
3/8" x 1/2" 96479798
FKM Ceramic Tubing
1/4" x 3/8" 96480622
3/8" x 1/2" 96480623
PVDF FKM Ceramic Tubing
1/4" x 3/8" 96480624
1/4" x 3/8" 96479801
39.6 (150) DN 10 SS CSM SS NPT 1/2" 2 2.2 96480625
99.1 (375) DN 15 SS CSM SS NPT 1/2" 2.5 3.7 96480627
248.3 (940) DN 25 SS CSM SS NPT 1" 3.5 4.7 96480628
248.3 (940) NPT 3/4"
PP
EPDM
Ceramic
NPT 3/4" 3/4"
96566136
FKM 96566138
PVDF FKM 96566139
SS FKM SS 96537921
248.3 (940) NPT 1 1/4"
PP EPDM
Glass
NPT 1 1/4" 1 1/4"
96566145
PP FKM 96566146
PVDF FKM 96566147
SS FKM SS 96537970
