Grundfos PHP A-1 4.0 User Manual

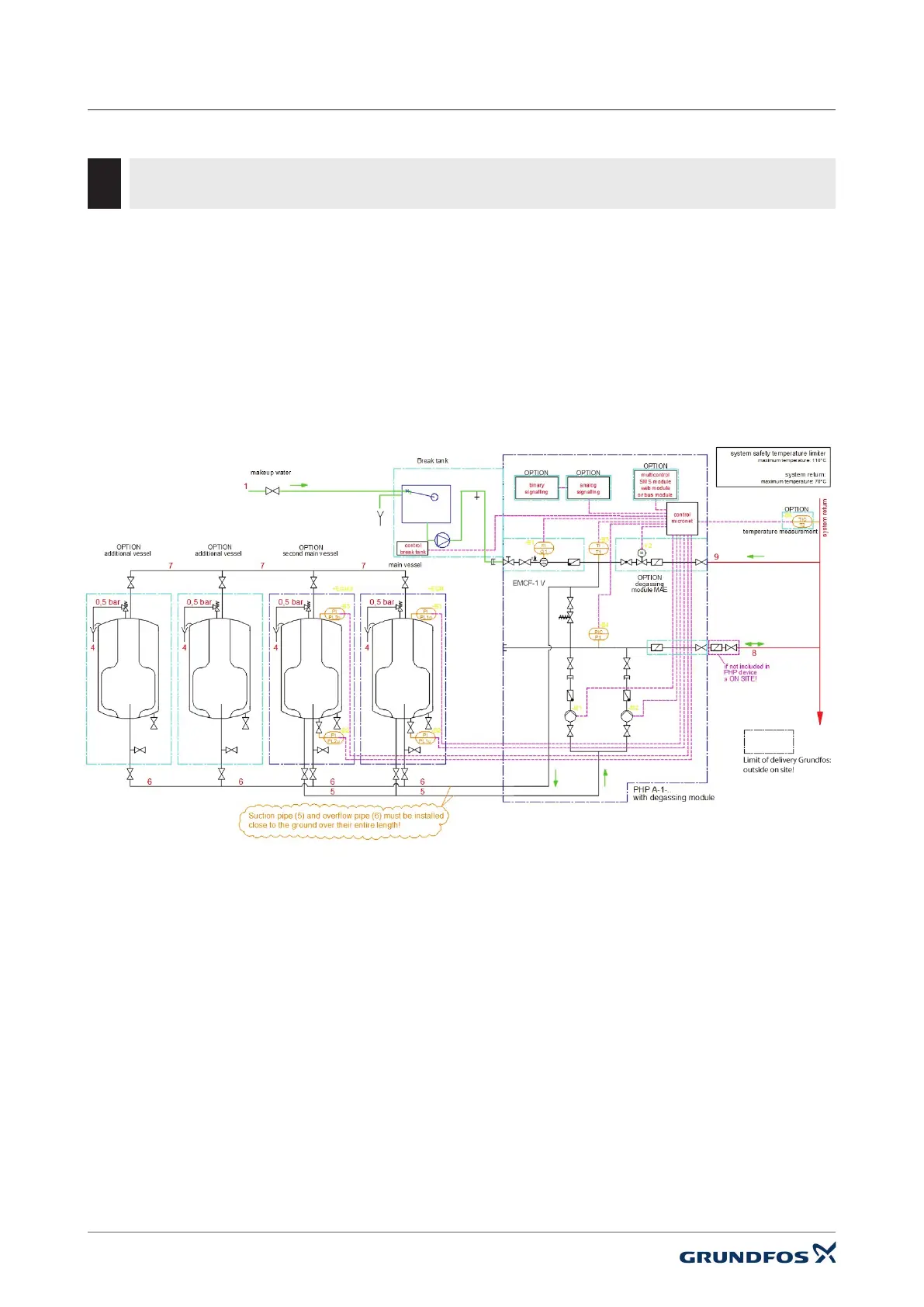

PHP modular with degassing
(standard diagram):
Options:
2 pcs. main vessels with level measurement, 2 pcs.
additional vessels, expansion modules, makeup module
EMCF-1 V, sensor T2
1. Ma
keup water
2. Expansion overflow pipe from system return min. DN25
3. Expansion pressure pipe to system return min. DN25
4. Discharge hopper for vessel safety valve
5. Suction pipe from expansion vessel
6. Overflow pipe to expansion vessel
7. Gas-side vessel connection DN20
8. Expansion pipe
9. Degassing pipe
PHP A-1 Instruction Manual / Hydraulic diagrams
3 Hydraulic diagrams
09
