Grundfos S Series User Manual

2.7 Applications
Depending on the installation type, the pumps can be
used for submerged or dry, horizontal or vertical
installation.
Maximum solids size: 80-145 mm depending on the
impeller type.
Installation
type
Description Accessories
S
Sewage pump with-
out cooling jacket for
submerged installa-
tion on auto coupling
Auto coupling
C
Sewage pump with
cooling jacket for
submerged installa-
tion on auto coupling
Auto coupling
D
Sewage pump with
cooling jacket for dry,
vertical installation
Ranges 50,
54, 58 and 62:
base stand for
vertical instal-
lation
Ranges 66
and 70: base
plate or stand
for vertical in-
stallation
H
Sewage pump with
cooling jacket for dry,
horizontal installation
Base stand or
plate for hori-
zontal installa-
tion.
ST
Sewage pump with-
out cooling jacket for
installation in column
pipe
Seat ring

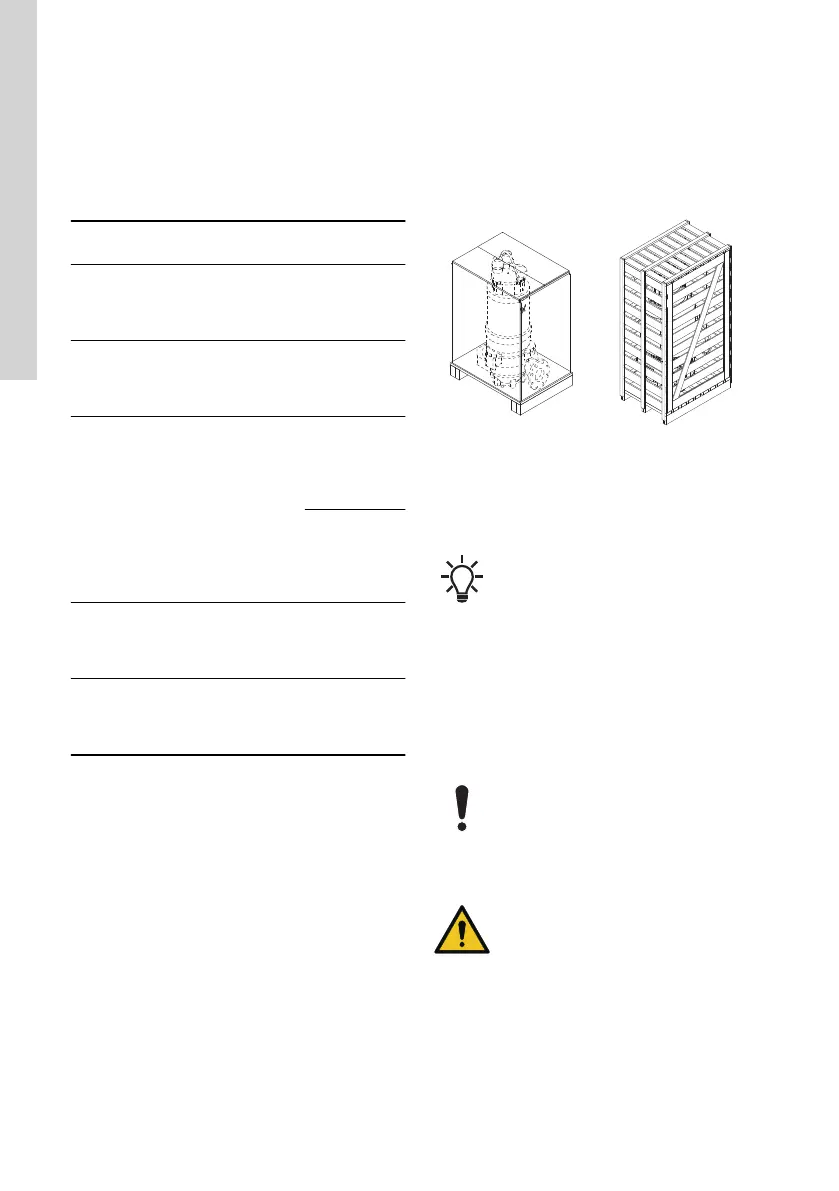

3. Receiving the product
S pumps are transported from the factory either in
horizontal or vertical position. Range 50 is supplied
on a wooden pallet and in a cardboard box. Ranges
54-70 are supplied on a wooden pallet and in a crate.
TM066073
Transport method S
pumps, range 50
TM066068
Transport method S
pumps, range 54-70
Dispose of pallets and other packaging material
according to local waste disposal regulations.
Store the cable end protectors for later
use.
3.1 Lifting the pump
Make sure to use the appropriate lifting equipment as
S pumps can weigh up to 2375 kg without
accessories.
The specific pump weight is stated on the nameplate.
See sections Nameplate and Dimensions and
weights.
Always use CE-marked lifting equipment.
DANGER
Crushing hazard
Death or serious personal injury
‐ Always check the lifting bracket and
chain for corrosion or wear before lift-
ing.
‐ Always lift the pump by its lifting brack-
et or by a fork-lift truck.
12
English (GB)
