Grundfos SQ Service Instructions

2 / 19
1. Type identification
This section shows the nameplates, the type keys and the codes that can appear in the variant code.

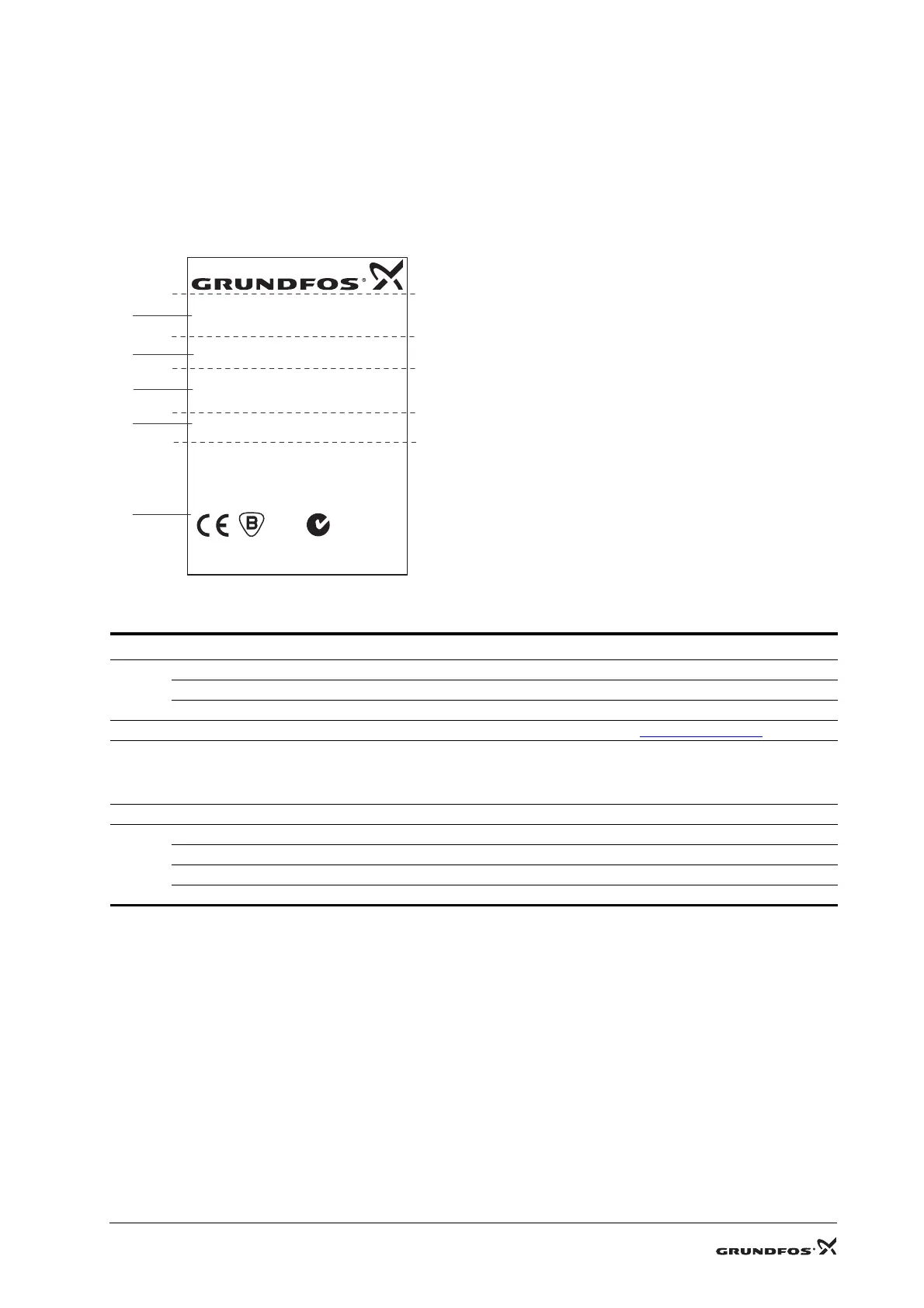

1.1 Nameplates
1.1.1 Nameplate, pump
The pump nameplate is engraved into the pump sleeve.
Example of nameplate, Europe, S-AMREG, APREG, Japan, Australia
Key to nameplate
TM03 0018 3704
Pos. Code Description
1
PROD.NO. 96080386 Product number
MODEL B Pump generation
P1 0436 Production code - Bjerringbro (P1) + year/week code
2 SQ/SQE 3-30 Type designation, see 1.2.1 Type key, pump
3
Q: 3 m³/h
H: 26 m
Stages: 2
Flow (Q) 3 [m³/h]
Head (H) 26 [m]
Number of stages 2
4 P2 motor 0.44 kW Required input power pump 0.44 [kW]
5
Weight 1.0 kg Pump net weight in kg
MADE IN DENMARK Country of origin: Denmark
Misc. marks of approval: CE etc.
Rp 1 1/4 Type and size of connecting thread
Weight
MADE IN DENMARK
PROD.NO.
MODEL B
Rp 1 1/4
SQ/SQE 3-30
Q: 3 m
3
/h
Stages: 2
P
2 motor
N2042
96080386
P1 0436
H: 26 m
0.44 kW
1.0 kg
1
2
3
4
5

Grundfos SQ Specifications

General

Motor	Permanent magnet motor
Material	Stainless steel
Protection class	IP68
Frequency	50/60 Hz
Application	Irrigation, Pressure boosting
Pumped liquid	Water
Power Supply	Single-phase or Three-phase
Operating Temperature	0 - 40 °C
