Grundfos SQ Service Instructions

4 / 19

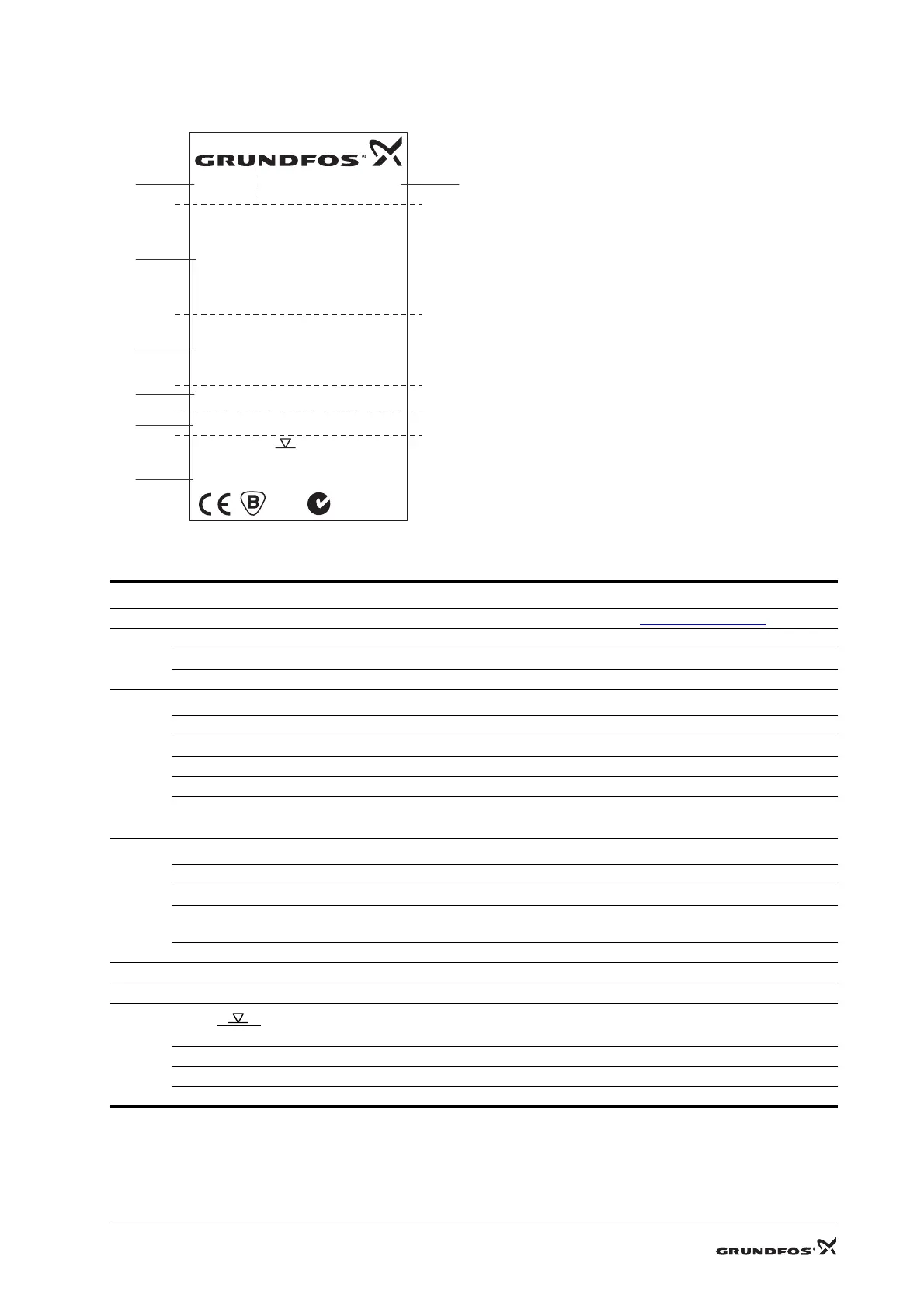

1.1.2 Nameplate, motor
The motor nameplate is engraved into the motor sleeve.
Key to nameplate, motor
TM03 0016 3704
Pos. Code Description
1 MSE3NE Type designation, see 1.2.2
Type key, motor
2
PROD.NO. 96511018 Product number
MODEL B Motor generation
P1 0436 Production code – Bjerringbro (P1) + year/week code
IEC data
3
U: 1x200-240 V - 50/60 Hz Required electricity supply [V]
P1: 1.02 kW Input power [kW]
I: 5.2 A Input current [A]
P2: 0.7 kW Output power [kW].
S1/40C 0.15 m/s
IEC/EN 60034 Cl. 1
Continuous operation up to 40°C, min. flow velocity
past the motor in m/s. Standard: IEC/EN 60034.
N-AMREG data
4
P2 0.5 HP Output power (P2) in horse power
SF 1.85 SF AMP 5.2 Service factor + max. ampere for a given SF
CONT. DUTY 104F 0.5 ft/s
Suitable for continuous operation at 104°F and flow of
0.5 ft/s
Ins. CL. F Code A Insulation class F. Start-kVA per hp
5 PF 1.0 RPM 10700 Power factor = 1. Rated speed 10,700 rpm
6 Weight 3.2/7 kg/lb Motor net weight in kg and pounds
7
Enclosure class: IP 68. Max installation depth: 150 m.
THERMALLY PROTECTED Temperature sensor built into the electronic unit
MADE IN DENMARK Country of origin: Denmark
Misc. marks of approval: CE, etc.
MSE3NE
MADE IN DENMARK
PROD.NO.
MODEL B
U: 1 x 200-240 V - 50/60 Hz
P
1: 1.02 kW
PF 1.0
P
2: 0.70 kW
S1/40 C 0.15 m/s
CONT. DUTY 104 F 0.5 ft/s
Ins. Cl. F Code A
Weight 3.2/7 kg/lb
P
2: 0.5 HP
SF 1.85 SF AMP 5.2
I: 5.2 A
IEC/EN 60034 Cl. 1
THERMALLY PROTECTED
IP 68
150m
96511018
P1 0436
RPM: 10700
N2042
1
3
4
5
7
6
2
IP 68 150 m

Grundfos SQ Specifications

General

Motor	Permanent magnet motor
Material	Stainless steel
Protection class	IP68
Frequency	50/60 Hz
Application	Irrigation, Pressure boosting
Pumped liquid	Water
Power Supply	Single-phase or Three-phase
Operating Temperature	0 - 40 °C
