Grundfos TP Service Instructions

English (GB)
5
3. Handling
Pumps fitted with motors smaller than 4 kW should be lifted by
means of nylon straps. See fig. 1.

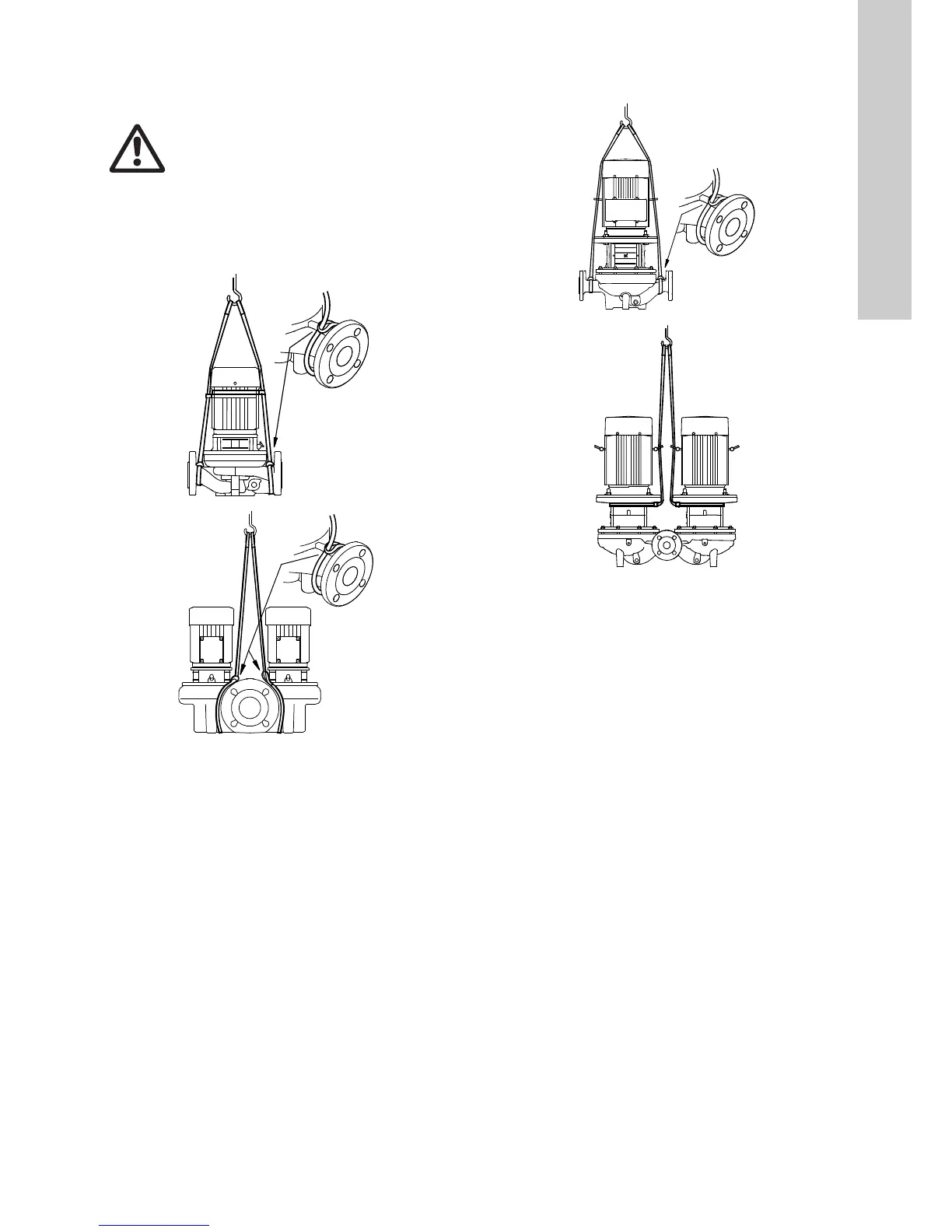

Fig. 1 Lifting the pump by means of nylon straps
Pumps fitted with motors of 4 kW and up should be lifted by
means of nylon straps and shackles. See fig. 2.
Fig. 2 Lifting the pump by means of nylon straps and
shackles
Warning
The lifting eyes fitted to large pump motors can
be used for lifting the pump head (motor, motor
stool and impeller). The lifting eyes must not be
used for lifting the entire pump.
TPD: The centrally positioned thread of the pump
housing must not be used for lifting purposes as
the thread is placed below the centre of gravity of
the pump.
TM02 5500 3302 - TM02 5499 3302
TM02 5502 3302 - TM02 5501 3302
TP
TPD
TP
TPD

Grundfos TP Specifications

General

Motor Efficiency	IE3
Series	TP
Connection Type	Flanged
Protection Class	IP55
Installation	In-line
Material	Stainless Steel
Maximum Operating Pressure	16 bar
Flange Standard	EN 1092
Pump Housing Material	Stainless Steel
Impeller Material	Stainless Steel
Temperature Range	-25 °C to +120 °C
Liquid Temperature Range	-25 °C to +120 °C
