4.2.4 Foundation
We recommend that you install the pump on a
concrete foundation which is heavy enough to provide
permanent and rigid support for the entire pump. The
foundation must be capable of absorbing any
vibration, normal strain or shock. As a rule of thumb,
the weight of the concrete foundation must be 1.5
times the weight of the pump. Place the pump on the
foundation and fasten it.
Recommended concrete foundations for TP, TPD
Series 300 pumps
For TP Series 300 pumps with weights of 150 kg or
more, we recommend that you mount the pump on a
concrete foundation with the dimensions stated in the
table below. The same recommendation applies for
TPD Series 300 pumps with weights of 300 kg or
more.

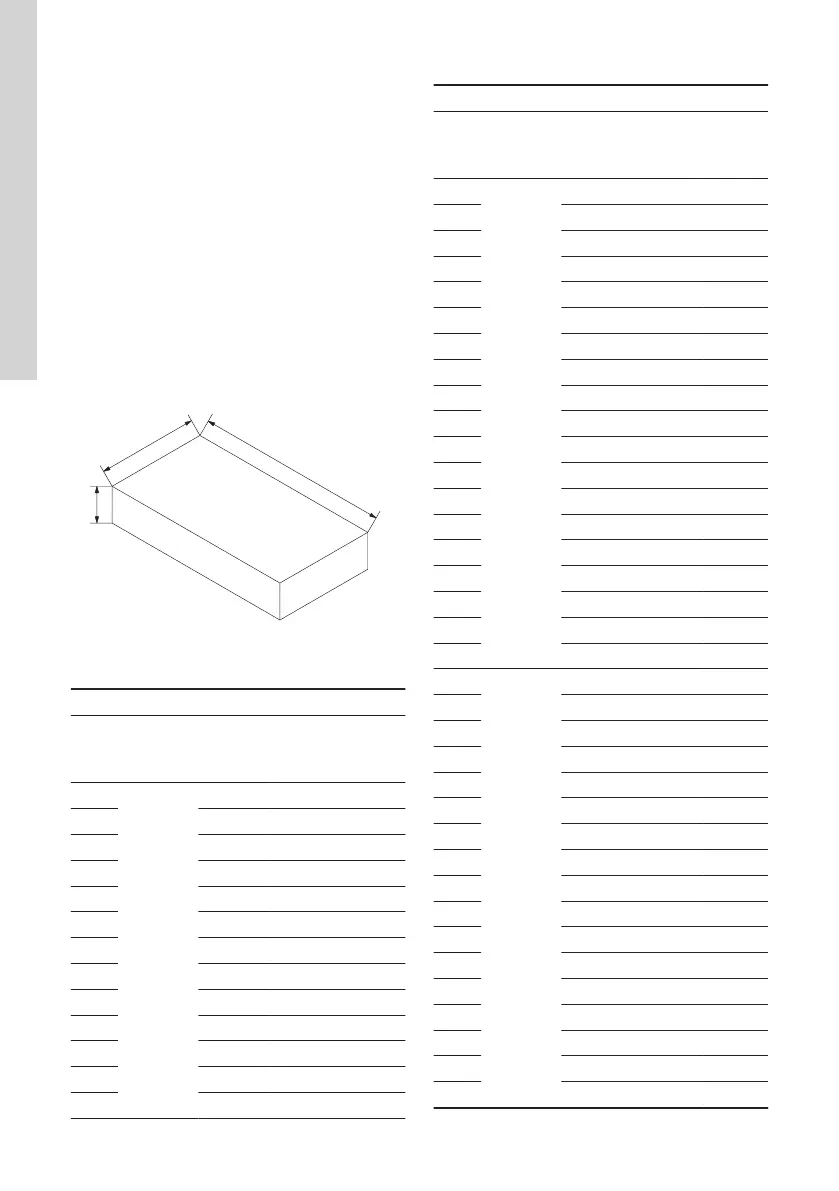

TM039190
Foundation for TP, TPD Series 300 pumps
Concrete foundation dimensions
Pump weight
[kg]
Y
(height)
[mm]
Z
(length)
[mm]
X
(width)
[mm]
150
≤ DN 200
280 565 565
200 310 620 620
250 330 670 670
300 360 710 710
350 375 750 750
400 390 780 780
450 410 810 810
500 420 840 840
550 440 870 870
600 450 900 900
650 460 920 920
700 470 940 940
750 480 970 970
Concrete foundation dimensions
Pump weight
[kg]
Y
(height)
[mm]
Z
(length)
[mm]
X
(width)
[mm]
800 490 990 990
850 500 1010 1010
900 510 1030 1030
950 520 1050 1050
1000 530 1060 1060
1050 540 1080 1080
1100 550 1100 1100
1150 560 1100 1100
1200 560 1130 1130
1250 570 1150 1150
1300 580 1160 1160
1350 590 1180 1180
1400 600 1190 1190
1450 600 1200 1200
1500 610 1220 1220
1550 620 1230 1230
1600 620 1250 1250
1650 630 1250 1250
1700 635 1270 1270
800
DN 300
DN 350
DN 400
450 1400 800
1000 450 1400 1000
1200 450 1400 1200
1400 500 1600 1200
1600 500 1600 1350
1800 500 1600 1500
2000 550 1600 1600
2200 550 1700 1700
2400 550 1800 1800
2600 600 1800 1800
3000 600 2000 2000
3400 680 2000 2000
3800 760 2000 2000
4200 840 2000 2000
4600 920 2000 2000
5000 1000 2000 2000
5400 1080 2000 2000
14
