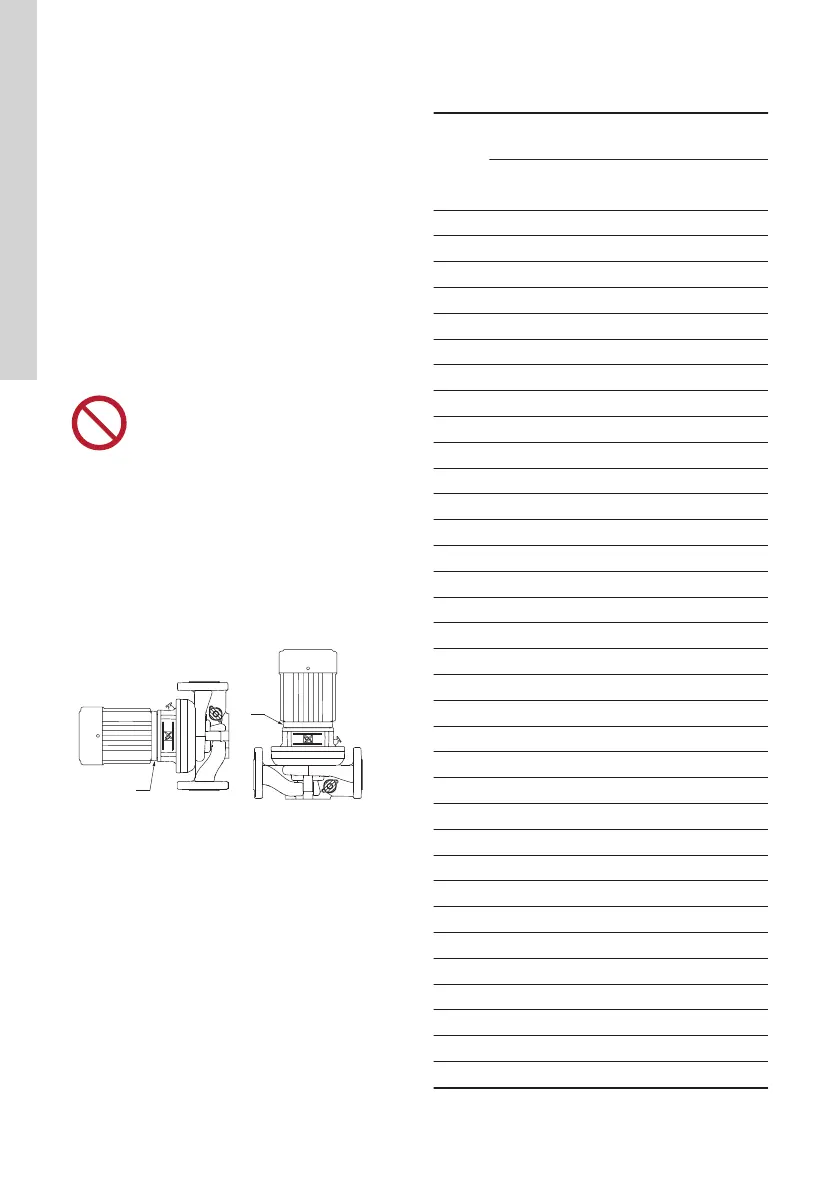

9.1.4 Inlet pressure
To ensure optimum and quiet pump operation, the
inlet pressure (system pressure) must be adjusted
correctly.
For the calculation of specific inlet pressures, contact
the local Grundfos company or see the data booklet
for TP, TPD, TPE, TPED, TPE2, TPE2 D, TPE3,
TPE3 D, if at hand.
The total pressure of the inlet pressure and the pump
pressure must be lower than the maximum operating
pressure stated on the pump nameplate.
The pumps comply with IEC 60335-2-51 if the
maximum inlet pressure is equal to or less than half
of the maximum operating pressure stated on the
pump nameplate.
9.1.5 Maximum flow rate
Do not exceed the maximum flow rate as
otherwise there is a risk of, for instance,
cavitation and overload.
The minimum and maximum flow rates and total
heads can be read either from the performance curve
pages in the relevant data booklets or from a curve
for a specific pump when selecting it in Grundfos
Product Center. See www.grundfos.com.
9.2 Enclosure class
Closed drain hole in motor: IP55
Open drain hole in motor: IP44. See the figure below.
A
A
TM009831
Drain hole (A) in motor flange
9.3 Electrical data
See the motor nameplate.
9.4
Sound pressure level
The sound pressure level of the pump with single-
phase motors is lover than 70 dB(A).
The sound pressure level of the pump with three-
phase motors is shown in the table below.
Maximum sound pressure level
Three-
phase
motor
s
[kW]
50 Hz
[dB(A)]
60 Hz
[dB(A)]
2-pole 4-pole 6-pole 2-pole 4-pole
0.12 ˂ 70 ˂ 70 - ˂ 70 ˂ 70
0.18 ˂ 70 ˂ 70 - ˂ 70 ˂ 70
0.25 56 41 - ˂ 70 45
0.37 56 45 - 57 45
0.55 57 42 - 56 45
0.75 53 59.5 - 57 49
1.1 53 49.5 - 58 53
1.5 58 50 47 64 53
2.2 60 51 52 65 55
3.0 59.5 53 63 53.5 55
4.0 63 54 63 67.5 57
5.5 62 50 63 68 62
7.5 60 51 66 65 62
11.0 60 53 - 64.5 66
15.0 60 66 - 65 66
18.5 60.5 63 - 65.5 63
22.0 65.5 63 - 70.5 63
30.0 70 65 - 75 65
37.0 71 66 - 75 65
45.0 67 66 - 75 65
55.0 72 67 - 75 68
75.0 74 70 - 77 71
90.0 73 70 - 77 71
110 76 70 - 81 75
132 76 70 - 81 75
160 76 70 - 81 75
200 - 70 - 81 75
250 - 73 - 86 77
315 - 73 - - 77
355 - 75 - - -
400 - 75 - - -
500 - 75 - - -
560 - 78 - - -
630 - 78 - - -
24
English (GB)

Grundfos TP Specifications

General

Motor Efficiency	IE3
Series	TP
Connection Type	Flanged
Protection Class	IP55
Installation	In-line
Material	Stainless Steel
Maximum Operating Pressure	16 bar
Flange Standard	EN 1092
Pump Housing Material	Stainless Steel
Impeller Material	Stainless Steel
Temperature Range	-25 °C to +120 °C
Liquid Temperature Range	-25 °C to +120 °C
