1
Chapter 1: Reference
This chapter describes the major components of the Model 672 Precision Scale. Keypad functions are
explained in this chapter. Also tables show the connections for the second scale and comm ports.
ENCLOSURE
The enclosure is powder coat die cast aluminum with a handle for ease of portability. The Model 672
offers a small footprint which will conserve space.

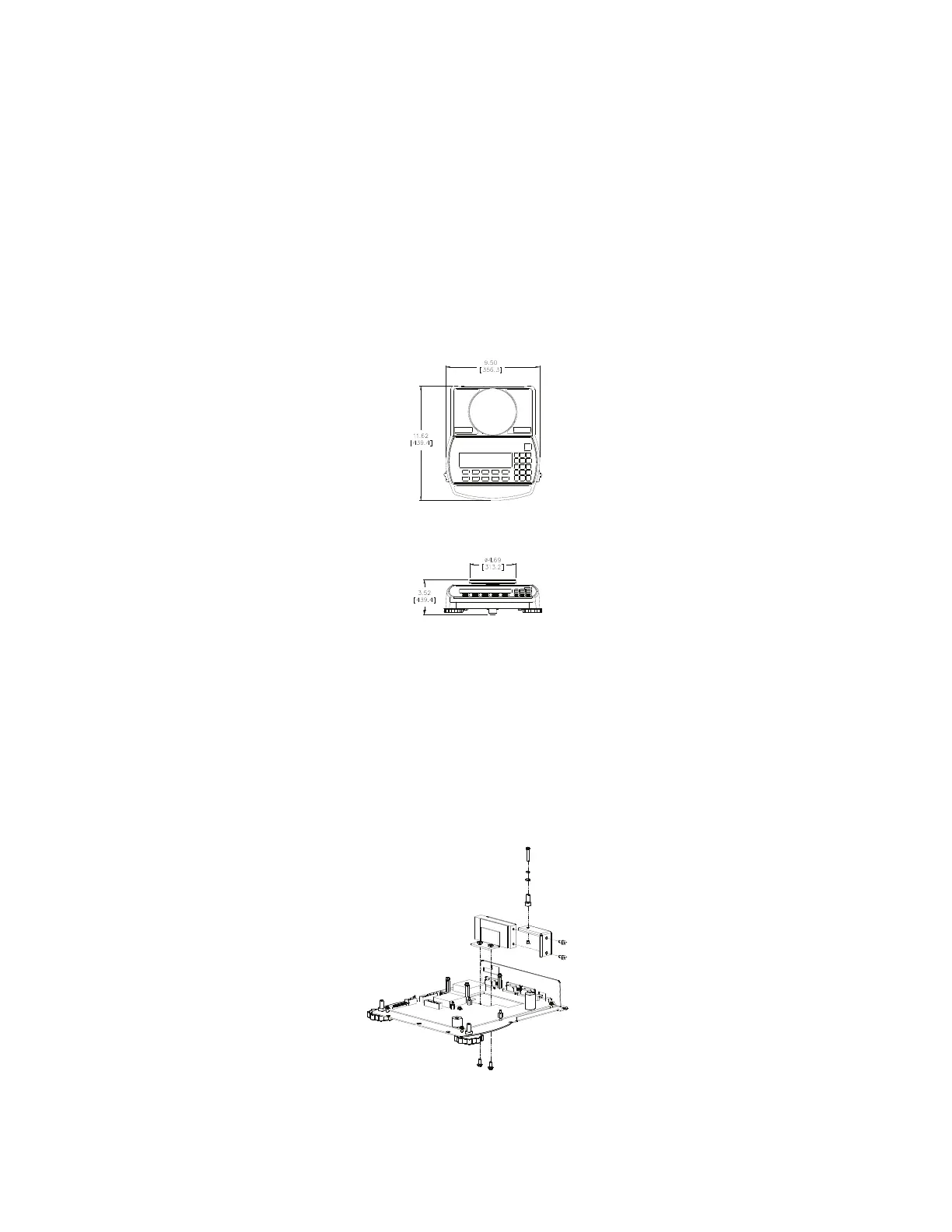

Figure 1: Model 672 Outline Drawing
LOAD CELL
The load cell can be exchanged by first removing the stainless steel top plate. Turn the unit over and
remove the six 8 mm screws (size) from the bottom plate. Separate the top enclosure from the bottom
plate. Remove the two Phillips head screws from the bottom plate. Extract the load cell out by lifting it off
of the bottom plate.
Figure 2: Model 672 Load Cell Installation
