5. Assembly

PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter 41

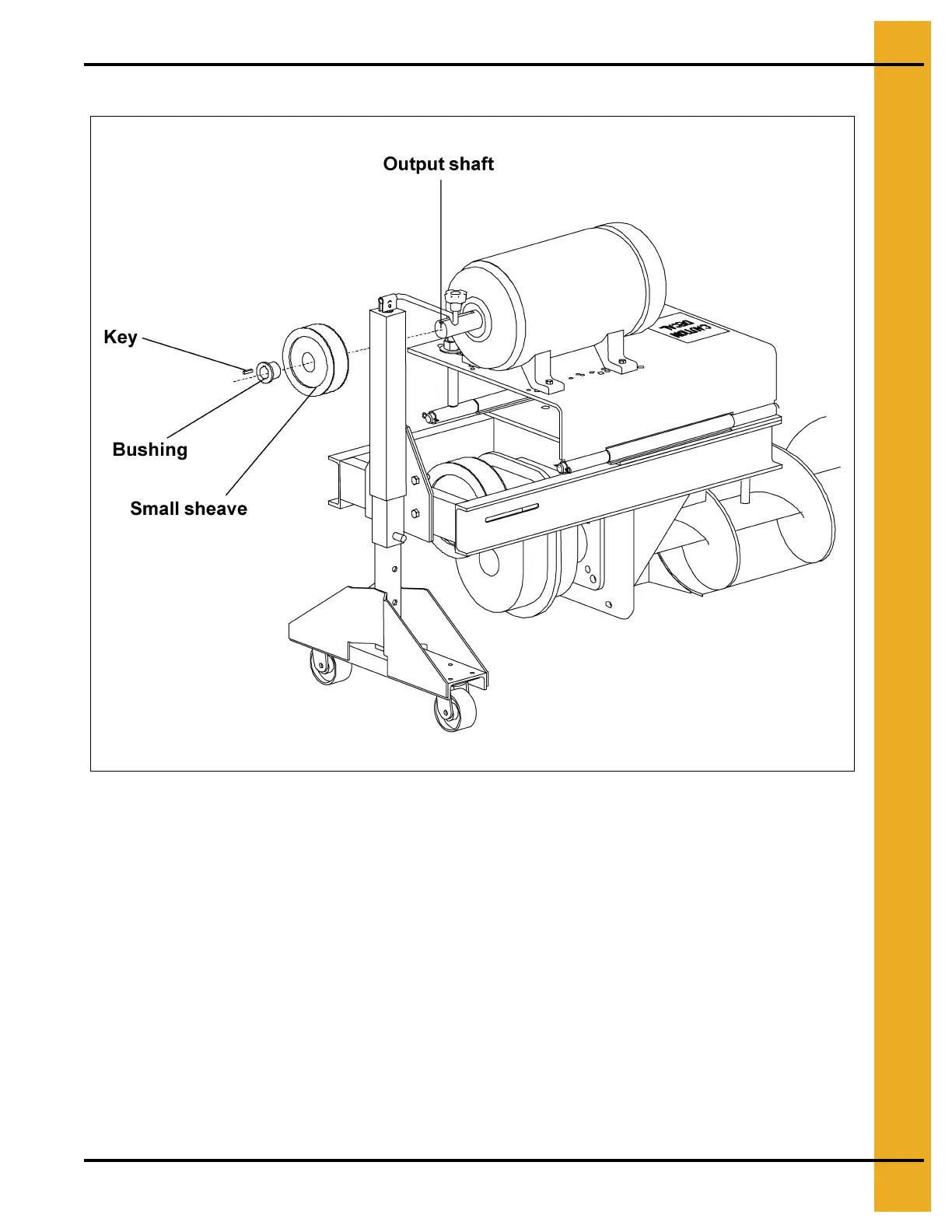

D. Slide the bushing and small sheave onto the motor shaft with a key. (See Figure 5Y.)

Figure 5Y

E. Align the sheaves with a straight edge to assure proper alignment and tighten the screws on the

bushings. (See Figure 5Y.)

F. Carefully install the belts onto the large and small sheaves. (See Figure 5Z on Page 42.)

NOTE: Adjust the hex nuts on the motor mount adjustment rod to attain correct belt tension while

making sure the motor mount is level on both rods. The motor mount must be parallel to

the auger screw to allow for proper sheave alignment.
