Chapter 4: Control Panels

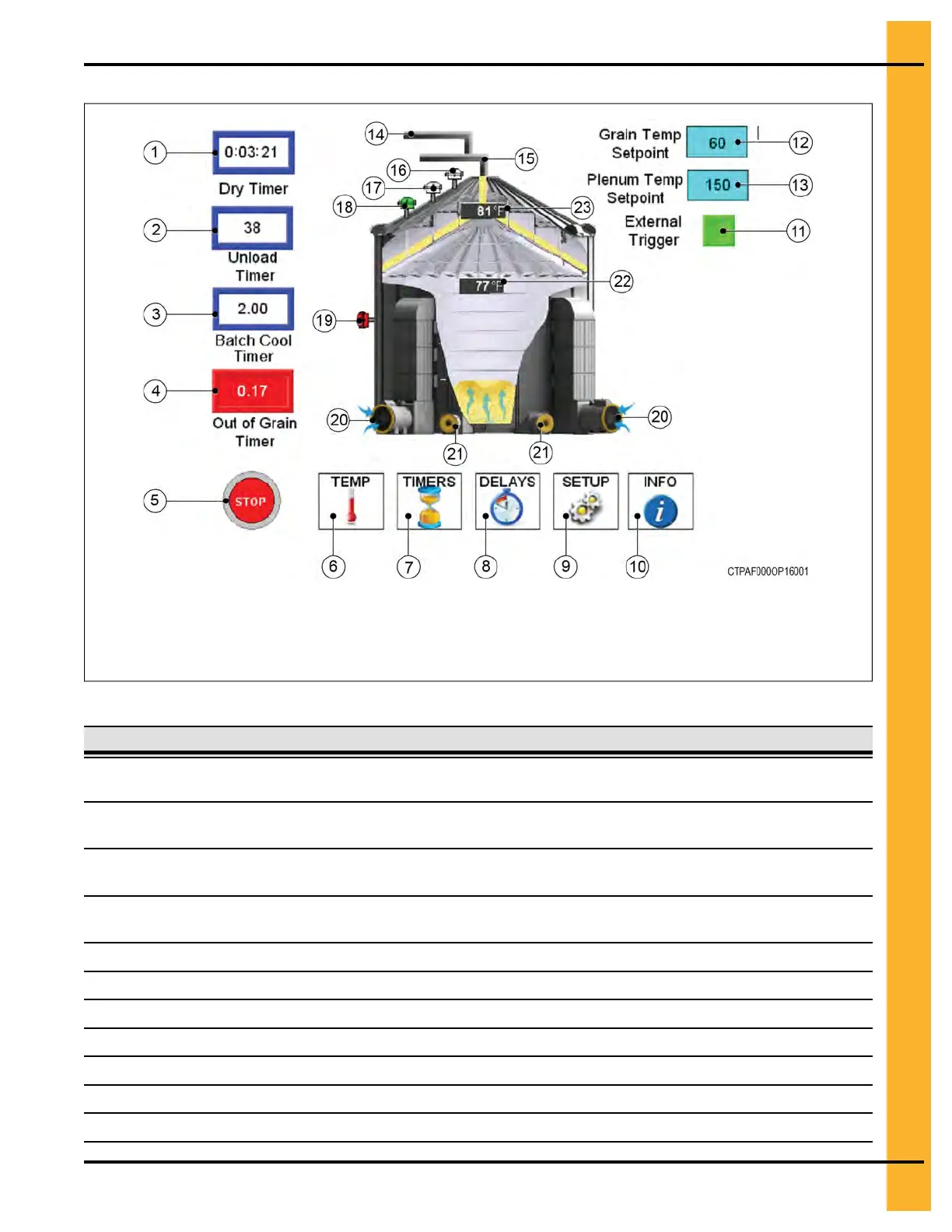

Figure 4-3 The main menu with all displays shown
NOTE: Due to the numerous configurations and options available, images of the dryer and it’s user
interface that are included in this guide can differ from the actual product. Any Rotary Switch
that is disabled will not appear on the main screen.
Table 4-2 Description of the main menu’s buttons and displays
Item Name Description
1 Dry timer button
Shortcut that allows you to quickly modify the time the burner operates; dis-
plays current time remaining
2 Unload timer button
Shortcut that allows you to quickly modify the time the dump chutes are
open; displays current time remaining
3 Batch cool timer button
Used in Autobatch Mode Only, shortcut allows you to quickly modify the time
the grain is cooled before it is dumped; displays current time remaining
4
Out of grain timer Displays the time left before the system will shut down as a result of no grain
being detected by the high level switch
5
Stop button Stops all dryer functions
6 Temp menu button Allows you to access the temperature menu
7 Timer menu button Allows you to access the timer menu
8 Delay menu button Allows you to access the delay time menu
9 Setup menu button
Allows you to access the setup menu
10 Info menu button Allows you to access the information menu
11 External trigger Displays when an external trigger is present, such as a moisture controller
