Chapter 4: Control Panels
The Information Menu
The information menu allows you to view alarms, setup Watchdog message, view operation history and
access to a graphic diagnostic display of the control boards.

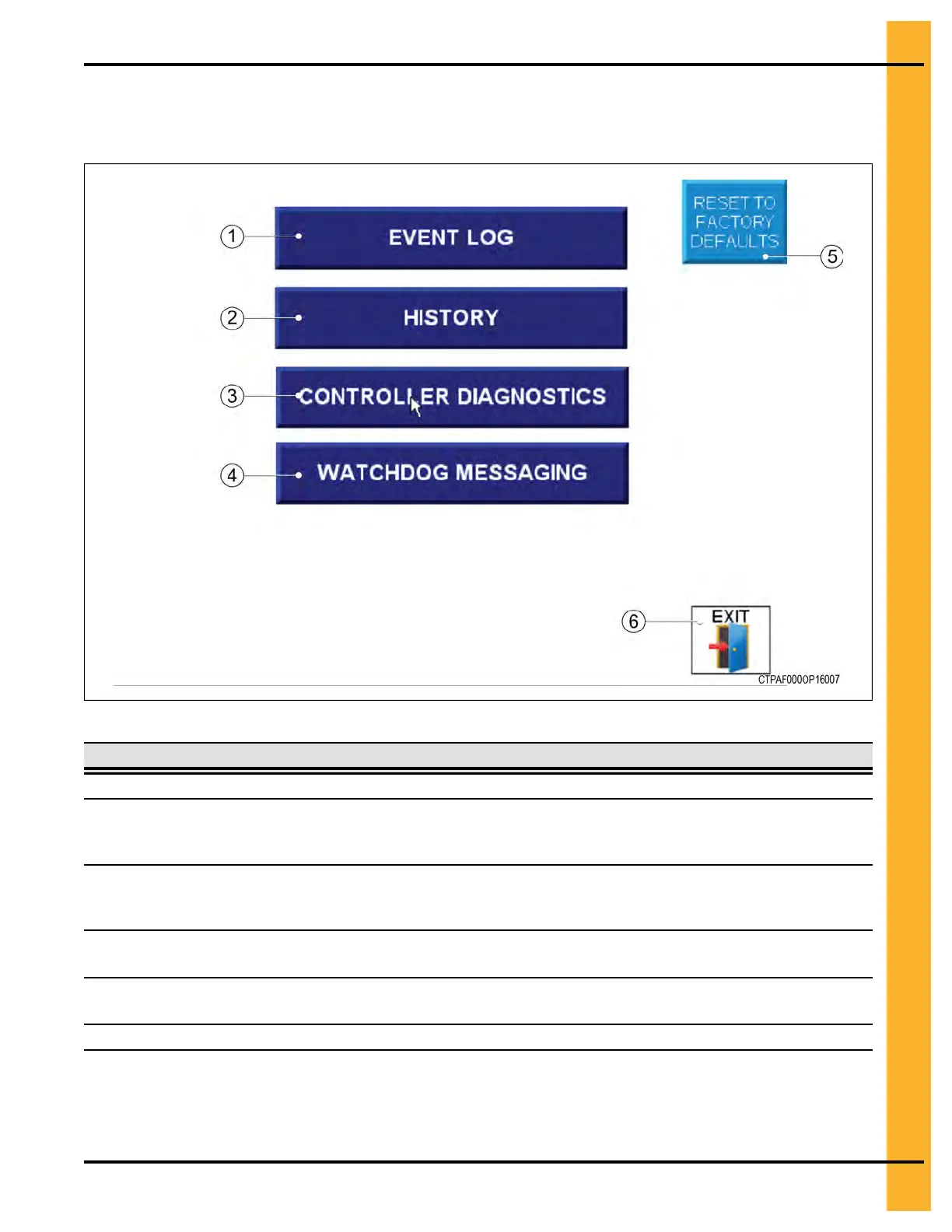

Table 4-3 The information menu
Item Name Description
1 Event log Allows you to view the alarm history.
2 History
Allows you to view information about the last eight dump cycles. The cycle
duration, plenum temperature, fill time, date and the dump time are
displayed.
3
Controller diagnostics Aids in troubleshooting a PLC problem; displays the status of the PLC
inputs and outputs, any fault codes that are present on the PLC, and a PLC
indicating the meaning of the fault codes.
4 Watchdog messaging
Allows you to set up the messaging feature available through the TopDry
Terminal (Refer to )
5
Reset to factory
defaults
Resets all parameter settings to the factory default settings. (Refer to Fac-
tory Default Settings, page 48
6 Exit Exist back to the main menu.
Pneg–4900 TopDry Terminal™ 47
