Chapter 4: Control Panels
The Timer and Delay Menu
You can access and set all parameters for the timers and delays from the same menu. The figure that fol-
lows illustrates and describes the parameter fields.

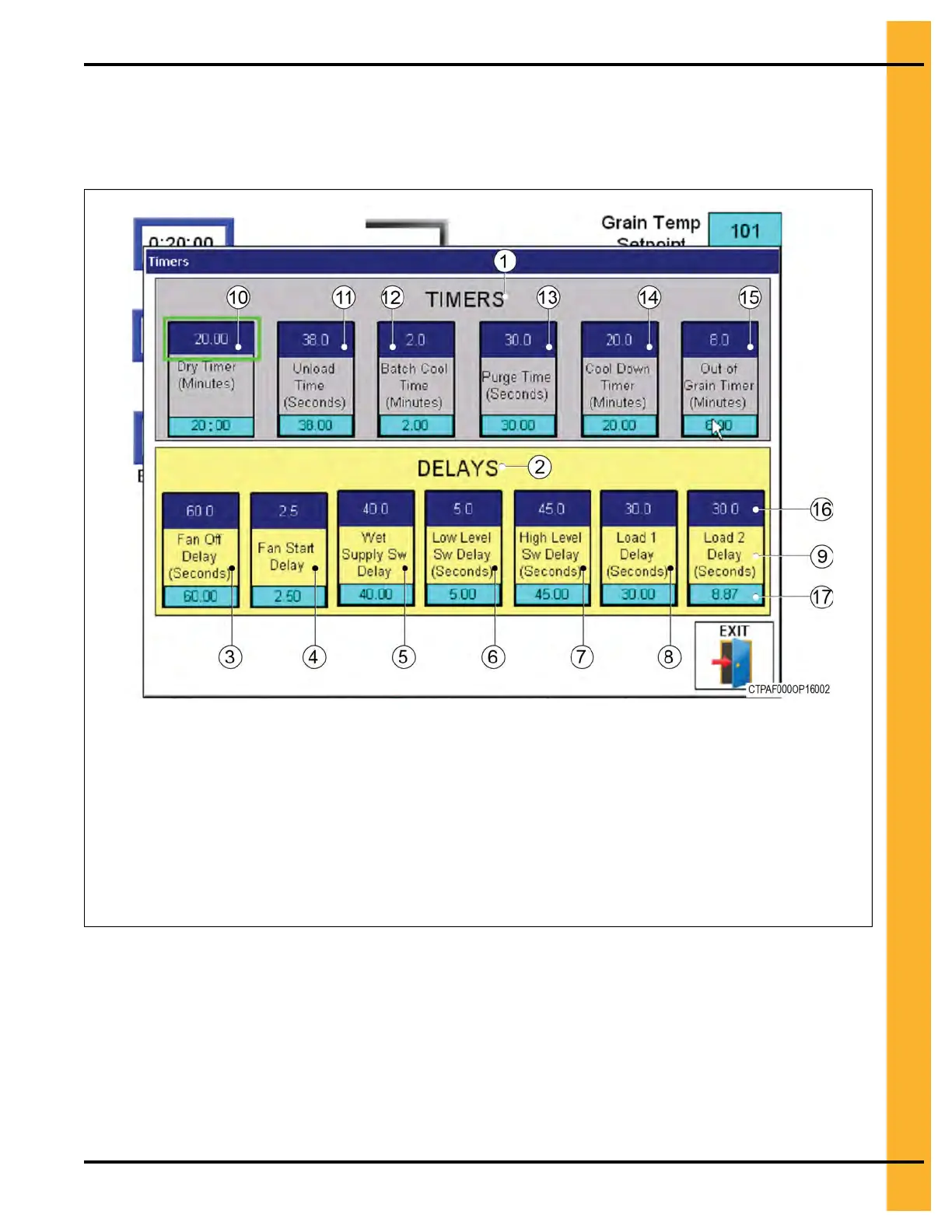

Figure 4-5 Timers and delays menu
Item — Name
1 — Timers
2 — Delays
3 — Fan off delay (seconds)
4 — Fan start delay (seconds)
5 — Wet supply switch delay (seconds)
6 — Low level switch delay (seconds)
7 — High level switch delay (seconds)
8 — Load 1 delay (seconds)
9 — Load 2 delay (seconds)
Item — Name
10 — Dry timer (minutes)
11 — Unload time (seconds)
12 — Batch cool timer (minutes) Batchflow Only
13 — Purge time (seconds)
14 — Cool down timer (seconds)
15 — Out of grain timer (minutes)
16 — Click to change setting
17 — Current setting
—
Setting the Timers
By clicking the Timers icon on the main menu, you can set the time for the Dry, Cool Down, Unload, Out-
of-Grain, and Purge timers.
What You Should Know
The timers perform the following functions:
Pneg–4900 TopDry Terminal™ 41
